Запчасти Case IH 2555 (09C-11A) - FRONT FAN - ASN JFG010001 (15) - HANDLING SYSTEM

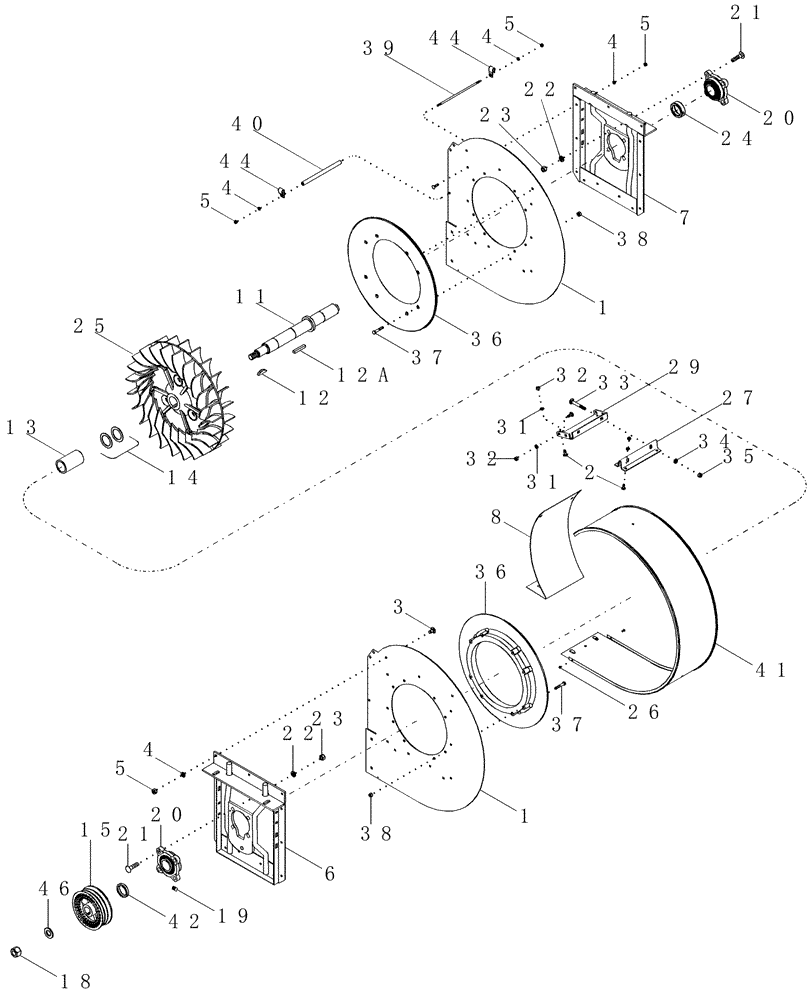

Схема запчастей Case IH 2555 - (09C-11A) - FRONT FAN - ASN JFG010001 (15) - HANDLING SYSTEM
23
6
25
29
12a
31
38
36
23
13
36
41
32
18
21
38
14
22
5
2
40
5
12
44
5
31
20
7
1
26
4
15
21
42
20
1
4
44
33
32
46
34
22
39
3
24
4
4
37
11
5
37
27
35
19
8

Артикул

Название

Примечание

Количество

449982A1

FAN HOUSING

Front, Inc. 1 - 46

1шт.

1

1260066C2

PLATE

2шт.

2

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4 x 3/4; 5

14шт.

3

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

20шт.

4

492-11025

LOCK WASHER,1/4"

36шт.

5

425-104

NUT,1/4"-20, Cl 5

36шт.

6

87403361

HOUSING ASSY.

Support, Front

1шт.

7

243038A2

SIDE ASSY.

Support

1шт.

8

204416C1

BAFFLE

1шт.

11

449301A2

SHAFT

Front Fan

1шт.

12

126-147

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

1шт.

12a

657206R1

KEY,3/8" Sq x 2 3/8", Par

3/8 x 2-3/8

1шт.

13

243037A1

SPACER

Fan Shaft

1шт.

14

495-81092

WASHER,1-7/8" ID x 2-1/2" OD x 1/16" Thk

1-13/16 x 2-1/2 x 1/16

2шт.

15

1338322C1

PULLEY

Front Fan Drive

1шт.

18

232-46314

LOCK NUT,7/8"-14, GC

1шт.

19

219-438

ADAPTER,45 Degree, 1/4"-1/8 NPTF

2шт.

20

242834A2

BEARING ASSY,1.708"

2шт.

21

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1/2 x 2; 5

8шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

23

425-108

NUT,1/2" - 13, Gr 5

8шт.

24

582816R11

COLLAR

Locking

1шт.

25

243041A1

ROTOR

1шт.

26

260-1346

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

No. 8 x 3/8

2шт.

27

204414C1

SUPPORT

Tie Bracket

1шт.

29

204415C1

SUPPORT

Bolt Anchor

1шт.

30

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

31

492-11031

LOCK WASHER,5/16"

2шт.

32

425-105

NUT,5/16"-18, G5

2шт.

33

433-648

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5

3/8 x 3; 5

2шт.

34

492-11038

LOCK WASHER,3/8"

2шт.

35

425-106

NUT,3/8"-16, Cl 5

2шт.

36

207515C1

BAFFLE

2шт.

37

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

16шт.

38

231-4115

NUT,5/16"-18, GB

16шт.

39

215709C1

STUD

1шт.

40

215020C1

PIPE

Fan Housing

1шт.

41

221533C1

COVER

1шт.

42

449746A1

SPACER

Fan Shaft

1шт.

44

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

Harness

2шт.

46

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

15/16 x 1-3/4 x 1/8

1шт.

Выбрано товаров: 41
