Запчасти Case IH 2555 (09C-07) - DRUM OUTLETS - REAR - 4 ROW NARROW, NO. 3, 5 ROW NARROW, NO. 4 (15) - HANDLING SYSTEM

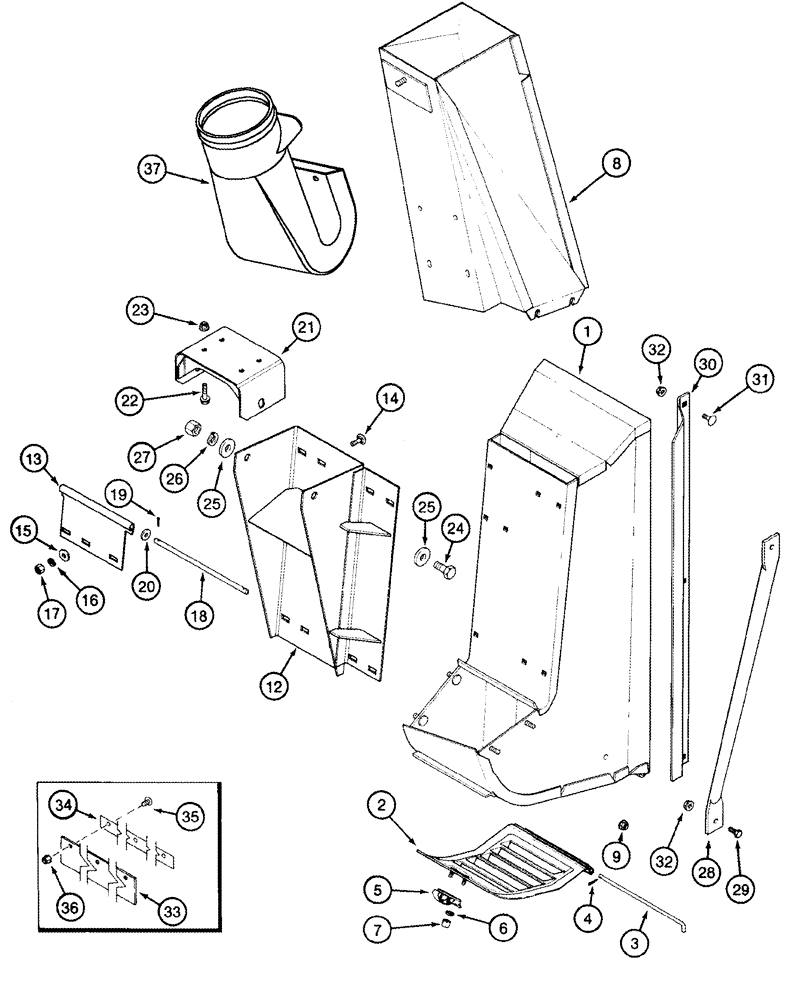

Схема запчастей Case IH 2555 - (09C-07) - DRUM OUTLETS - REAR - 4 ROW NARROW, NO. 3, 5 ROW NARROW, NO. 4 (15) - HANDLING SYSTEM
19
7
28
25
33
5
36
2
8
34
3
29
32
25
22
14
30
6
20
21
32
13
24
35
27
37
16
1
15
18
17
26
9
23
4
12
31

Артикул

Название

Примечание

Количество

1

1984083C5

HOUSING

Rear Outlet

1шт.

2

119753A1

TRAP DOOR

Access, Rear Outlet, 4 Louvers

1шт.

3

1984110C2

PIN,6.25mm OD

Hinge

1шт.

4

432-612

COTTER PIN,3/32" x 3/4"

1шт.

5

1333780C1

LATCH

Hinge, Access Door

1шт.

5a

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

Not Illustrated

2шт.

6

492-11010

LOCK WASHER,#10

2шт.

6a

495-31022

WASHER,#10

4шт.

7

225-14210

NUT,#10-32

2шт.

8

1984090C3

HOUSING

Outlet, Rear Drum, No. 4

1шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

12

1984168C4

SUPPORT

Support, Rear

1шт.

13

1984151C2

HINGE

Rear Door Support

1шт.

14

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

6шт.

15

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

6шт.

16

492-11031

LOCK WASHER,5/16"

6шт.

17

425-105

NUT,5/16"-18, G5

6шт.

18

1984153C1

STEM

Outlet Support

1шт.

19

32-812

COTTER PIN,1/8" x 3/4"

2шт.

20

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

21

1990466C2

SUPPORT

Rear Outlet Adjustment

1шт.

22

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

5/16 x 1-1/4

4шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

24

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

1/2 x 3/4

2шт.

25

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

4шт.

26

392-21050

LOCK WASHER,1/2"

1/2"

2шт.

27

425-108

NUT,1/2" - 13, Gr 5

2шт.

28

1984349C1

SUPPORT

Door Support

1шт.

29

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

30

1984212C1

DEFLECTOR

Trash Post

1шт.

31

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

3шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

33

1546051C2

SEALING STRIP

44 mm wide x 784 mm lg, Outlet

1шт.

34

1546224C1

LARGE PLATE

PLATE, LARGE Backup, Outlet Seal

1шт.

35

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

5шт.

36

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

37

1349941C2

NOZZLE INJECTION

1шт.

Выбрано товаров: 37
