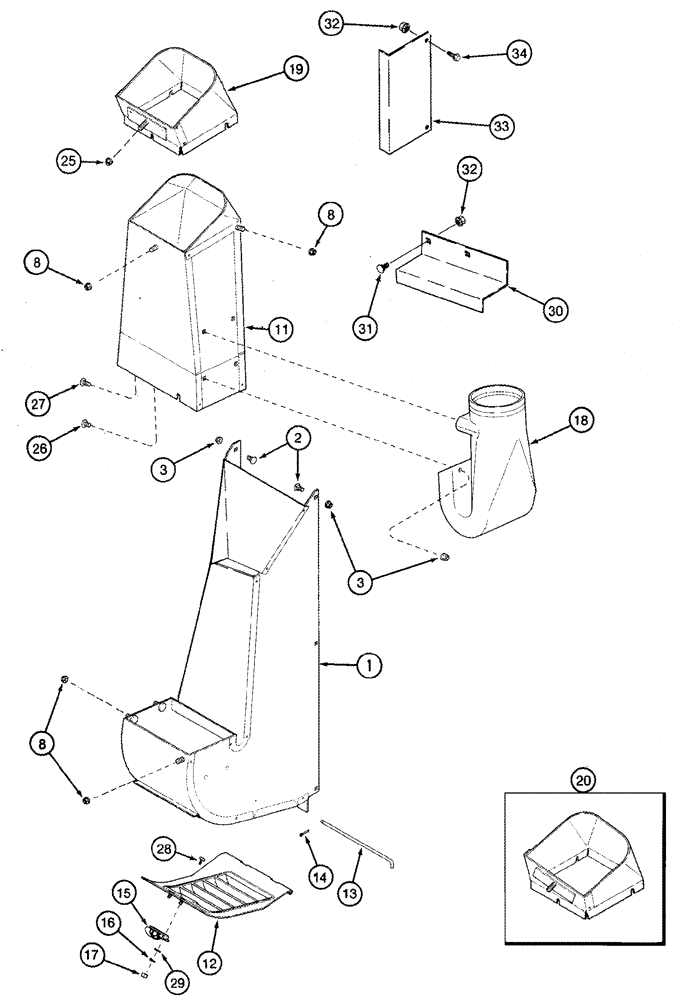

Запчасти Case IH 2555 (09C-05) - DRUM OUTLETS - REAR - 4 ROW NARROW, NO. 1 AND 2, 5 ROW NARROW, NO. 2 AND 3, 5 ROW WIDE, NO. 2 AND 3 (15) - HANDLING SYSTEM

431759A1

PACKAGE

Rear Outlet, Inc. 1 - 3, 12 - 17, 28, 29

1шт.

431791A1

PACKAGE

Rear Outlet, Inc. 1A, 2, 3, 12 - 17, 28, 29

1шт.

1

182305A1

HOUSING

Rear Drum Outlet, 4 Row Narrow, No. 1, 5 Row Narrow, No. 2, 5 Row Wide, No. 2

1шт.

1a

1984076C4

HOUSING

Rear Drum Outlet, 4 Row Narrow, No. 2, 5 Row Narrow, No. 3, 5 Row Wide, No. 3, Not Illustrated

1шт.

2

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

5шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

431760A1

PACKAGE

Rear Extension, Inc. 11, 8 (3)

1шт.

431798A1

PACKAGE

Rear Extension, Inc. 11A, 8 (4), 25

1шт.

11

1349969C2

HOUSING

Outlet, Rear Drum, 4 Row Narrow, No. 1, 5 Row Narrow, No. 2, 5 Row Wide, No. 2

1шт.

11a

1984095C2

HOUSING

Outlet, Rear Drum, 4 Row Narrow, No. 2, 5 Row Narrow, No. 3, 5 Row Wide, No. 3

1шт.

12

119753A1

TRAP DOOR

Access, Rear Outlet

1шт.

13

1984110C2

PIN,6.25mm OD

Hinge

1шт.

14

432-612

COTTER PIN,3/32" x 3/4"

1шт.

15

1333780C1

LATCH

Hinge, Access Door

1шт.

16

492-11010

LOCK WASHER,#10

2шт.

17

225-14210

NUT,#10-32

2шт.

431767A1

AIR DUCT

Rear Nozzle, Inc. 18, 26, 27, 3 (2)

1шт.

18

1349941C2

NOZZLE INJECTION

Drum Outlet, Rear, Short

1шт.

431475A1

PACKAGE

Rear Transition, Inc. 19, 25, 8 (3)

1шт.

19

1990497C1

HOUSING

Straight, Drum Outlet, 4 Row Narrow, No. 1, 5 Row Narrow, No. 2, 5 Row Wide, No. 2

1шт.

25

231-4116

NUT,3/8"-16, GB

3/8

1шт.

26

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

27

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

28

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

2шт.

29

495-31022

WASHER,#10

4шт.

30

119057A1

SUPPORT

Extension Support

1шт.

31

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

2шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

33

119058A1

SUPPORT

Extension Support

1шт.

34

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.
