Запчасти Case IH 2555 (09C-04) - DRUM OUTLETS - FRONT - 5 ROW WIDE, NO. 2 (15) - HANDLING SYSTEM

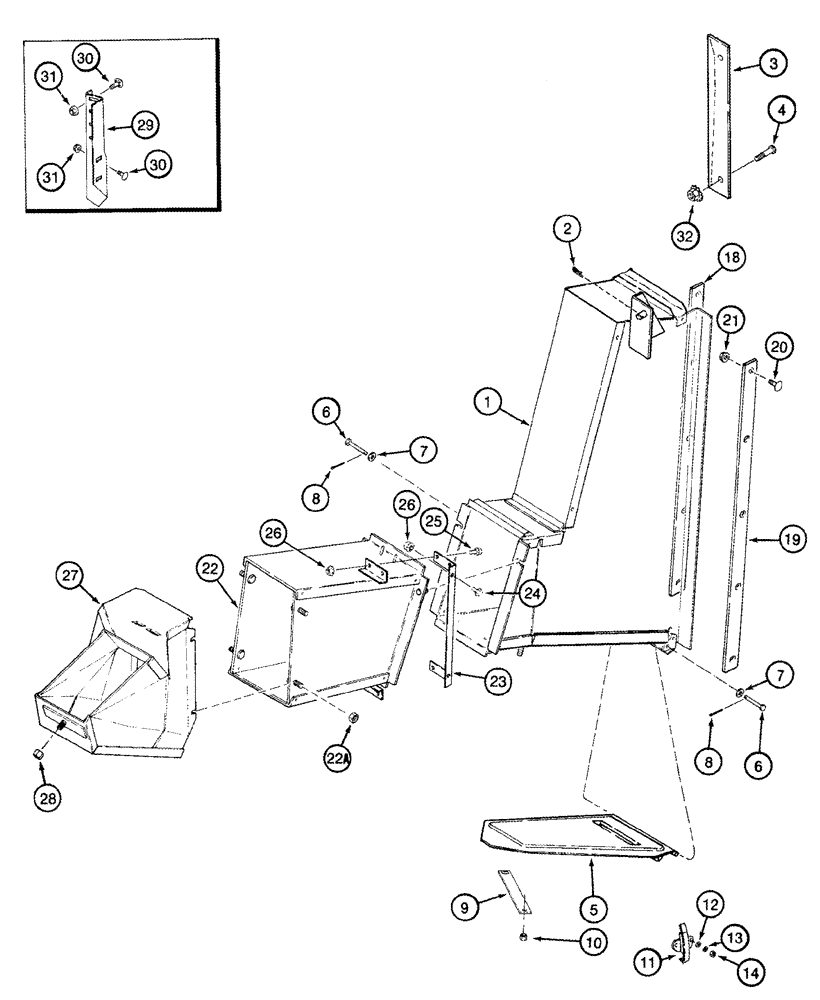

Схема запчастей Case IH 2555 - (09C-04) - DRUM OUTLETS - FRONT - 5 ROW WIDE, NO. 2 (15) - HANDLING SYSTEM
7
8
14
13
22
18
7
11
25
9
12
3
6
21
30
23
30
22a
26
20
6
29
1
27
32
28
31
8
4
31
26
5
19
2
24
10

Артикул

Название

Примечание

Количество

1

131070A1

SHEET

Front Outlet

1шт.

2

586591R1

COTTER PIN

1/8

1шт.

3

114925A1

LARGE PLATE

PLATE, LARGE Outlet Latch

1шт.

4

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1/4 x 3/4

2шт.

5

132940A1

TRAP DOOR

Access

1шт.

6

439-1440

HEADED PIN,1/4" x 2 1/2"

1/4 X 2-1/2; 2

2шт.

7

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

1шт.

8

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

9

1349890C2

LATCH

Outlet Door

1шт.

10

231-4115

NUT,5/16"-18, GB

1шт.

11

1333780C1

LATCH

Hinge, Access Door

1шт.

12

495-31022

WASHER,#10

2шт.

13

492-11010

LOCK WASHER,#10

2шт.

14

225-14210

NUT,#10-32

2шт.

18

1546051C2

SEALING STRIP

44 mm wide x 784 mm lg, Outlet

1шт.

19

1546224C1

LARGE PLATE

PLATE, LARGE Backup, Outlet Seal

1шт.

20

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

10шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

22

129595A2

EXTENSION

Outlet

1шт.

22a

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

23

118909A1

SUPPORT

Extension

1шт.

24

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

25

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

27

1984042C2

HOUSING

Rear Section

1шт.

28

231-4116

NUT,3/8"-16, GB

3/8

1шт.

29

1546006C2

SUPPORT

Duct

1шт.

30

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

4шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

32

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

Выбрано товаров: 30
