Запчасти Case IH 2555 (09C-03) - DRUM OUTLETS - FRONT - 4 ROW NARROW, NO. 1, 5 ROW NARROW, NO. 2 (15) - HANDLING SYSTEM

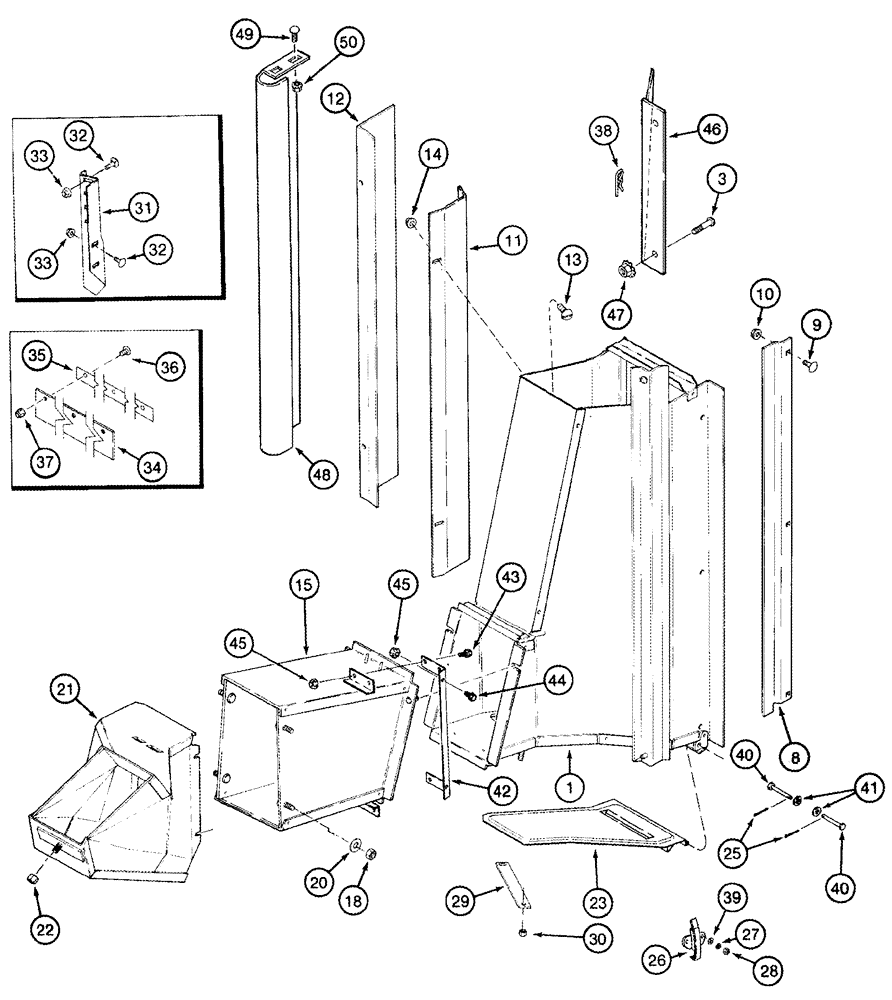

Схема запчастей Case IH 2555 - (09C-03) - DRUM OUTLETS - FRONT - 4 ROW NARROW, NO. 1, 5 ROW NARROW, NO. 2 (15) - HANDLING SYSTEM
35
21
10
50
1
12
34
39
26
30
29
32
33
11
38
22
23
46
25
40
36
13
40
8
42
3
43
15
33
18
14
45
41
27
47
37
49
20
28
44
32
48
31
9
45

Артикул

Название

Примечание

Количество

1

1984446C6

HOUSING

Drum Outlet, 4 Row Narrow, No. 1, 5 Row Narrow, No. 2

1шт.

8

1984471C1

DEFLECTOR

Trash Post

1шт.

9

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

3шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

11

1984455C2

ANGLE

Trash Opening

1шт.

12

1984470C2

ANGLE

Trash Opening, Inner

1шт.

13

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

15

129595A2

EXTENSION

Outlet, 4 Row Narrow, No. 1, 5 Row Narrow, No. 2

1шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

21

1984042C2

HOUSING

Rear Section, 4 Row Narrow, No. 1, 5 Row Narrow, No. 2

1шт.

22

232-4136

LOCK NUT,3/8"-16, GC

1шт.

23

1349891C4

TRAP DOOR

Access

1шт.

25

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

26

1333780C1

LATCH

Hinge, Access Door

1шт.

27

492-11010

LOCK WASHER,#10

2шт.

28

225-14210

NUT,#10-32

2шт.

29

1349890C2

LATCH

Outlet Door

1шт.

30

231-4115

NUT,5/16"-18, GB

2шт.

31

1546006C2

SUPPORT

Duct, 4 Row Narrow, No. 1, 5 Row Narrow, No. 2

1шт.

32

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

4шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

34

1546051C2

SEALING STRIP

44 mm wide x 784 mm lg, 4 Row Narrow, No. 1, 5 Row Narrow, No. 2

1шт.

35

1546224C1

LARGE PLATE

PLATE, LARGE Backup, Outlet Seal, 4 Row Narrow, No. 1, 5 Row Narrow, No. 2

1шт.

36

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

5шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

38

586591R1

COTTER PIN

1/8

1шт.

39

495-31022

WASHER,#10

2шт.

40

439-1440

HEADED PIN,1/4" x 2 1/2"

1/4 X 2-1/2; 2

2шт.

41

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

1шт.

42

118909A1

SUPPORT

Outlet Extension, 4 Row Narrow, No. 1, 5 Row Narrow, No. 2

1шт.

43

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

44

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

45

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

46

1546254C1

ANGLE BAR

Access Cover, Outlet Latch

1шт.

47

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

48

131616A1

SHEET

Doffer Post

1шт.

49

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

50

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

Выбрано товаров: 39
