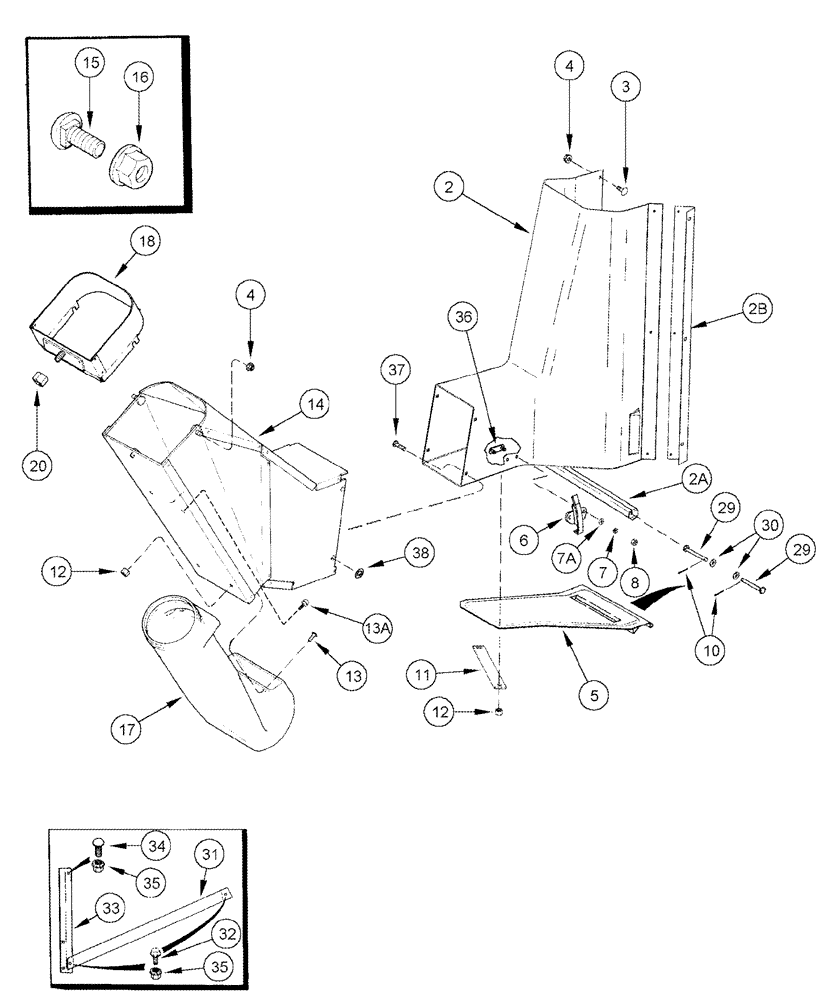

Запчасти Case IH 2555 (09C-01) - DRUM OUTLETS - FRONT - 4 ROW NARROW, NO. 2, 3 AND 4, 5 ROW NARROW, NO. 1, 3 AND 4, 5 ROW WIDE, NO. 3 (15) - HANDLING SYSTEM

431725A1

PACKAGE

Front Outlets, Inc. 2 - 13, 29, 30

1шт.

2

193133A1

HOUSING

Drum Outlet, Plastic, Inc. 2A, 2B

1шт.

2a

221826A1

HINGE

Adapter

1шт.

2b

221819A1

ANGLE BAR

Adapter

1шт.

3

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

6шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

5

1349891C4

TRAP DOOR

Access, Outlet

1шт.

6

1333780C1

LATCH

Hinge, Access Door

1шт.

7

492-11010

LOCK WASHER,#10

2шт.

7a

495-31022

WASHER,#10

2шт.

8

225-14210

NUT,#10-32

2шт.

10

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

11

1349890C2

LATCH

Outlet Door

1шт.

12

231-4115

NUT,5/16"-18, GB

1шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

13

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

13a

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

431728A1

PACKAGE

Front Extension, 14, 12 (6), 13 (2), 37, 38

1шт.

431797A1

PACKAGE

Front Extension, Inc. 14A, 12 (6), 13 (2), 20, 37, 38

1шт.

14

1349927C2

HOUSING

Front Outlet, 4 Row Narrow, No. 3 and 4, 5 Row Narrow, No. 1 and 4

1шт.

14a

1349962C2

HOUSING

Front Outlet, 4 Row Narrow, No. 2, 5 Row Narrow, No. 3, 5 Row Wide, No. 3, Not Illustrated

1шт.

15

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

1шт.

16

231-5146

FLANGE NUT,3/8"-16

1шт.

17

1984189C2

NOZZLE

Front Outlet, Long

1-2шт.

431244A1

PACKAGE

Front Transition, Inc. 18, 20, 4 (3)

1шт.

431474A1

PACKAGE

Front Transition, Inc. 18A, 20, 4 (3)

1шт.

18

1546036C1

ADAPTER

Front Outlet Extension, 4 Row Narrow, No. 3, 5 Row Narrow, No. 1 and 4

1шт.

18a

1546039C1

HOUSING

Front Outlet Extension, 4 Row Narrow, No. 4, Not Illustrated

1шт.

20

231-4116

NUT,3/8"-16, GB

3/8

1шт.

29

439-1440

HEADED PIN,1/4" x 2 1/2"

1/4 X 2-1/2; 2

2шт.

30

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

1шт.

31

1546257C1

SUPPORT

Outlet, Front

1шт.

31

1546259C1

SUPPORT

Outlet, Front

1шт.

32

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

33

1546255C3

ANGLE BAR

Outlet Support, Front

1шт.

33

1546258C1

ANGLE BAR

Outlet Support, Front

1шт.

34

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

4шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

36

119069A1

PLATE

1шт.

37

411-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

5/16 x 3/4; 2

4шт.

38

131-889

PUSH-ON NUT,5/16", Push-on

5/16

4шт.
