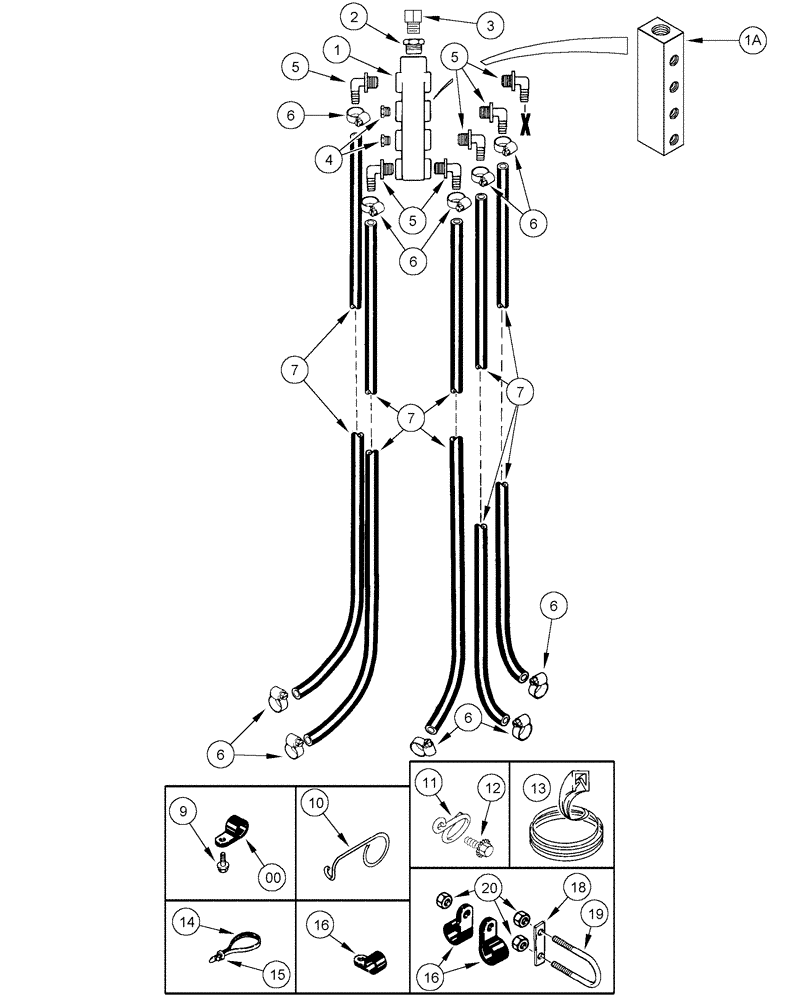

Запчасти Case IH 2555 (09B-04) - MOISTENER SYSTEM - WATER LINES (14) - WATER SYSTEM

1

1546015C1

MANIFOLD

Water/Lube, Serial Range: -JJC0249826

1шт.

1a

87444651

MANIFOLD

Water/Lube, Start Serial: JFG010001

1шт.

2

444030

REDUCER,1/2"-14 NPTF x 1/8"-27 Fem NPTF

1шт.

3

217-497

DRAIN PLUG,Sq Hd, 1/8" - 27 NPTF, Brass

1/8 PT

1шт.

4

111491A1

PLUG

1/4 PT

2-3шт.

5

1546018C1

ELBOW

1/4 PT x 3/8 stem

5-6шт.

6

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

14-16шт.

7

1546022C1

HOSE

Manifold Valve to Drum, 5080 mm (200 in), Cut From 1338159CX

4-5шт.

Note: See Figure 09B-03 for water pump mounting and lines

1шт.

8

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

3-4шт.

9

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

1/2 x 3/4

2-3шт.

10

120903A1

SUPPORT

Long

2шт.

11

189300A1

BRACKET

Short

4шт.

12

409-7812

BOLT,Hex Flg, 1/2" - 13 x 3/4", Spcl

1/2 x 3/4

4шт.

13

413776A1

PROTECTION STRIP

171 mm (6-3/4 in), Cut From 1330108CX

1шт.

13

228634A1

PROTECTION STRIP

89 mm (3-1/2 in), Cut From 1330108CX

1шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

4шт.

15

435437A1

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

6шт.

16

87000226

HOSE CLAMP

2 in ID

1шт.

17

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

8-10шт.

18

1546029C1

LARGE PLATE

PLATE, LARGE

4шт.

19

1546030C1

U-BOLT,3/8" - 16 x 47.60mm W x 44.50mm L

BOLT "U" 3/8

4шт.

20

425-146

JAM NUT,3/8" - 16, Gr 5

14шт.
