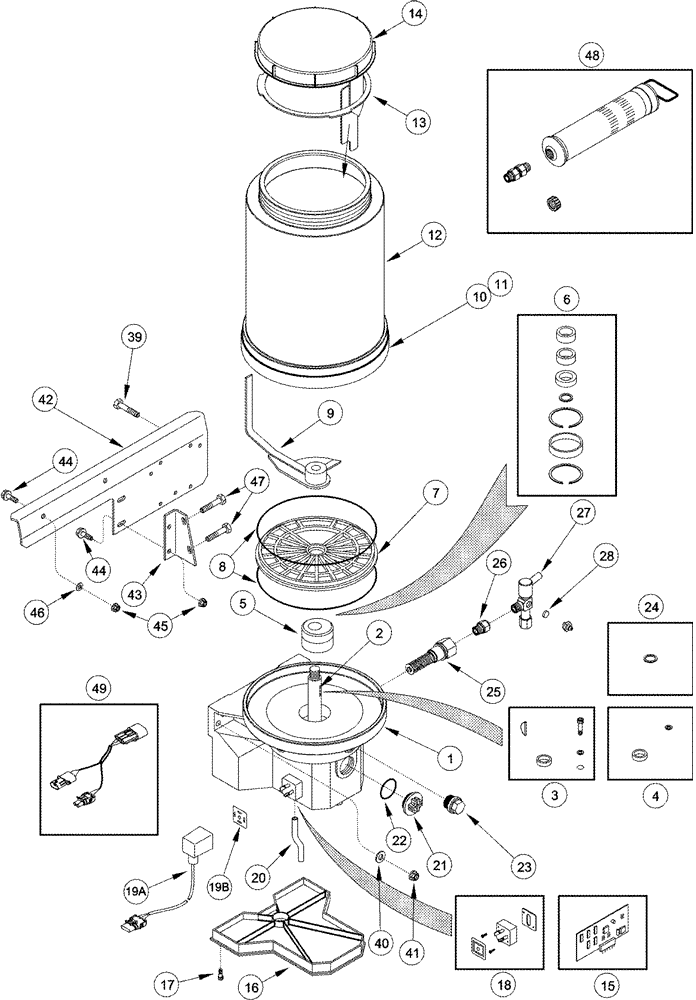

Запчасти Case IH 2555 (09A-46) - LINCOLN AUTO LUBE PUMP (13) - PICKING SYSTEM

429330A1

PUMP

Lincoln Auto Lube Pump, Inc. 1 - 31

1шт.

1

429609A1

HOUSING

Lincoln Auto Lube Pump

1шт.

2

NSS

NOT SOLD SEPARAT

Motor, Electric

1шт.

3

431131A1

KIT

12 VDC, Includes 2

1шт.

4

431130A1

SEAL KIT

Bearing and Seal

1шт.

5

431127A1

CAM

1шт.

6

431132A1

SEAL KIT

Seal, Housing

1шт.

7

431126A1

PLATE

Intermediate

1шт.

8

431122A1

O-RING

2шт.

9

431137A1

PADDLE

Stirring Paddle

1шт.

10

431141A1

ADAPTER

Not Illustrated

1шт.

11

431140A1

O-RING

1шт.

12

430189A1

RESERVOIR

1шт.

13

431135A1

PADDLE

Stirring Paddle, Fixed

1шт.

14

431134A1

COVER

Reservoir

1шт.

15

431123A1

BOARD

Circuit

1шт.

16

431124A1

COVER

1шт.

17

431144A1

SCREW

10шт.

18

431133A1

KIT

Power Plug

1шт.

19

414644A2

HARNESS

Lincoln Auto Lube Pump, Inc. 19A, 19B

1шт.

19a

380926A1

CONNECTOR, ELEC

CONNECTOR

1шт.

19b

446575A1

GASKET

1шт.

20

431139A1

HOSE

1шт.

21

700720105

PLUG

1шт.

22

238-5026

O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro

1шт.

23

700720104

PLUG

1шт.

24

431142A1

WASHER

Used With 25

1шт.

25

432854A1

ELEMENT

6 mm

1шт.

26

429341A1

FITTING

Relief Valve

1шт.

27

429342A1

VALVE PRESSURE RELIE

1шт.

28

431129A1

SEAL

1шт.

39

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 x 1-1/4

3шт.

40

495-81117

WASHER,.344" x 1" x .120"

11/32 x 1 x 7/64

3шт.

41

231-5345

FLANGE NUT,Flg, 5/16"-18

5/16

3шт.

42

412718A1

BRACKET

Pump Mounting

1шт.

43

412719A1

ANGLE

1шт.

44

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

5шт.

45

231-5146

FLANGE NUT,3/8"-16

8шт.

46

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

2шт.

47

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

48

B96092

PUMP

Manual Filler Gun

1шт.

49

414645A1

HARNESS

Adapter

1шт.
