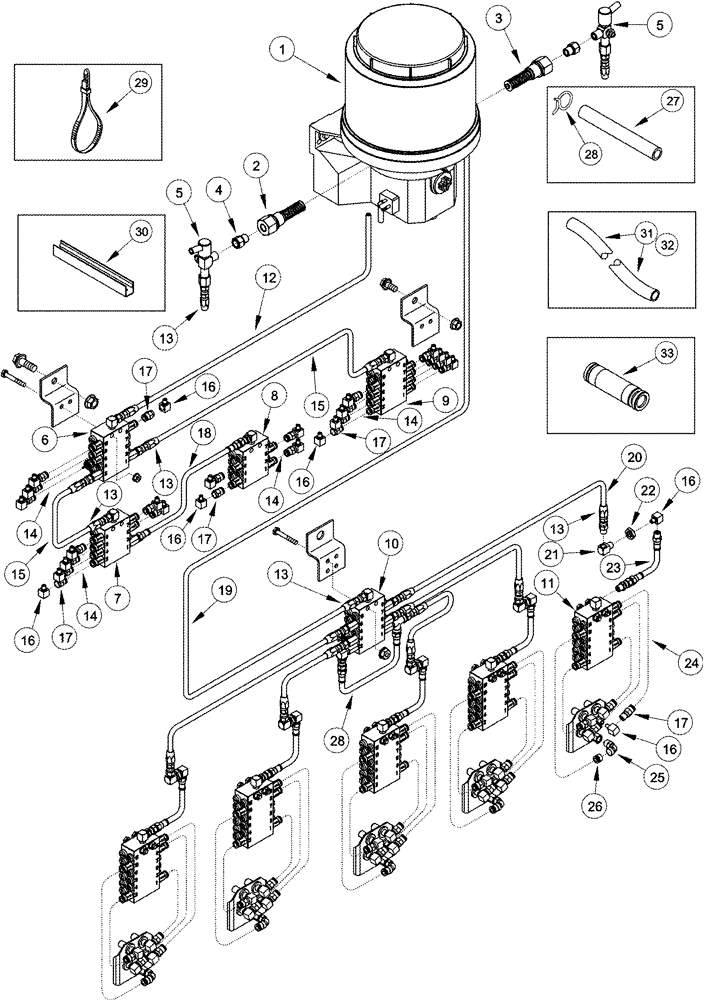

Запчасти Case IH 2555 (09A-45) - AUTOMATIC LUBRICATION SYSTEM - 5 ROW, OPTIONAL BSN JJC0249800; STANDARD ASN JJC0249800 (13) - PICKING SYSTEM

409554A3

PACKAGE

Lincoln Auto Lube Pump, Inc. 1 - 30

1шт.

Order From Machinery Price List

1шт.

1

429330A1

PUMP

Lincoln Auto Lube Pump, See Figure 09A-46

1шт.

2

429340A1

ELEMENT

7 mm

1шт.

3

432854A1

ELEMENT

6 mm

1шт.

4

429341A1

FITTING

2шт.

5

429342A1

VALVE PRESSURE RELIE

2шт.

6

432866A1

VALVE

Primary Chassis Divider, See Figure 09A-49

1шт.

7

432864A1

VALVE

See Figure 09A-49

1шт.

8

429337A1

VALVE

See Figure 09A-49, Replaced By 87422420

1шт.

8

87422420

VALVE

VALVE See Figure 09A-49

1шт.

9

432869A1

VALVE

See Figure 09A-49

1шт.

10

432872A1

VALVE

Primary Drum Divider, See Figure 09A-49

1шт.

11

429333A1

VALVE

See Figure 09A-49

5шт.

12

432855A1

TUBE

Grease Filled, 3048 mm (120 in), Cut From 430133A1

1шт.

13

429353A1

COUPLING

1/8 PT sw

18шт.

14

430142A1

TUBE

Grease Filled, 2750 mm (108-1/4 in), Cut From 430134A1

22шт.

15

432863A1

TUBE

Grease Filled, 1525 mm ( 60 in), Cut From 430133A1

2шт.

16

219-402

ADAPTER,90 Degree, 1/4"-1/8 NPTF

1/4 tpr x 1/8 PT

47шт.

17

429352A1

FITTING

1/4 tube x 1/8 PT str

42шт.

18

429358A2

HOSE,3.17mm ID x 280mm L, SAE 100R7

Grease Filled, 280 mm (11 in)

1шт.

19

432856A1

TUBE

Grease Filled, 4270 mm (168 in), Cut From 430133A1

1шт.

20

429357A1

HOSE,3.20 mm ID x 6250.00 mm

Grease Filled, Cut From 430133A1

5шт.

21

429344A1

ELBOW

blkhd 1/8 PT x 1/4 NF

5шт.

22

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

5шт.

23

429348A1

HOSE

Grease Filled, 900 mm (35-7/16 in)

5шт.

24

430140A1

TUBE

Grease Filled, 750 mm (29-1/2 in), Cut From 430134A1

25шт.

25

429349A1

ELBOW

1/8 PT x 1/4 sw

5шт.

26

429618A1

BUSHING

1/4 NF x 1/8 PT str

5шт.

27

431125A1

HOSE

25.4 mm (1 in)

15шт.

28

1988888C1

CLAMP

3/8

15шт.

29

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

100шт.

30

195510A1

PROTECTION STRIP

91 mm (3-5/8 in)

4шт.

31

430133A1

TUBE,3.20 mm ID x 12190.00 mm

Grease Filled

1шт.

32

430134A1

TUBE

Grease Filled, 15240 mm (50 ft)

1шт.

33

448990A1

TUBE,1/4" x 1/4"

1/4 in OD, Repair

1шт.
