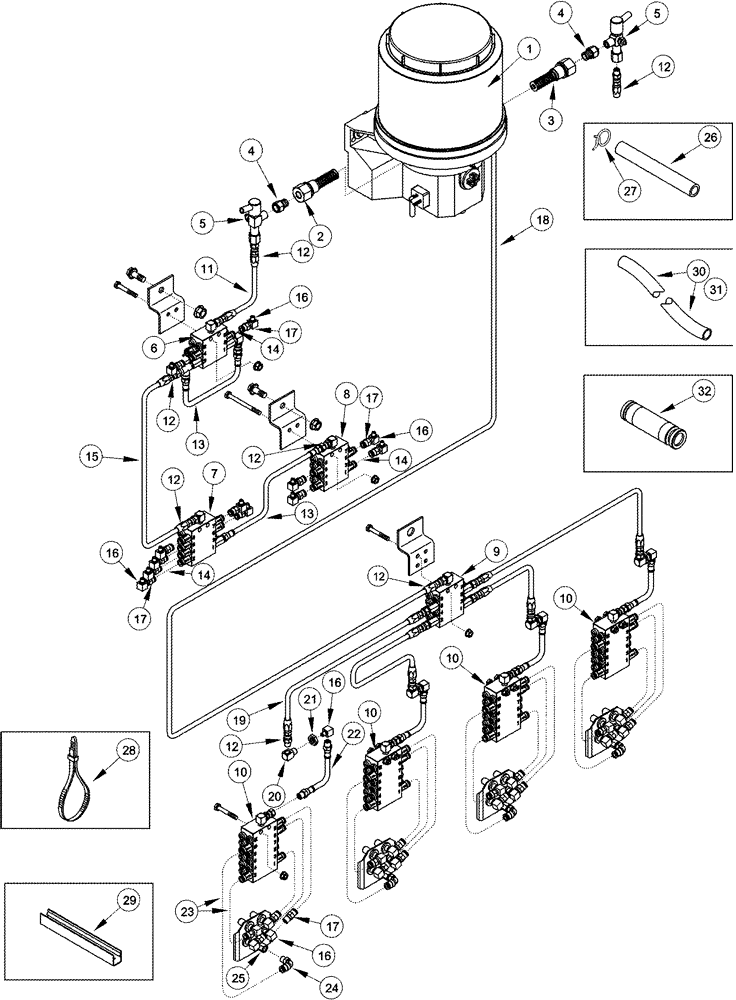

Запчасти Case IH 2555 (09A-43) - AUTOMATIC LUBRICATION SYSTEM - 4 ROW WIDE - OPTIONAL BSN JJC0249800; STANDARD ASN JJC0249800 (13) - PICKING SYSTEM

409553A3

PACKAGE

Lincoln Auto Lube Pump, Inc. 1 - 29

1шт.

Order From Machinery Price List

1шт.

1

429330A1

PUMP

Lincoln Auto Lube Pump, See Figure 09A-46

1шт.

2

429339A1

ELEMENT

5 mm

1шт.

3

432854A1

ELEMENT

6 mm

1шт.

4

429341A1

FITTING

2шт.

5

429342A1

VALVE PRESSURE RELIE

2шт.

6

432861A1

VALVE

Primary Chassis Divider, See Figure 09A-47

1шт.

7

432864A1

VALVE

Chassis Lube, See Figure 09A-47

1шт.

8

429337A1

VALVE

Chassis Lube, See Figure 09A-47; Replaced By 87422420

1шт.

8

87422420

VALVE

VALVE Chassis Lube, See Figure 09A-47

1шт.

9

432857A1

VALVE

Primary Drum Divider, See Figure 09A-47

1шт.

10

429333A1

VALVE

Drum Lube, See Figure 09A-47

4шт.

11

432855A1

TUBE

Grease Filled, 3048 mm (120 in), Cut From 430133A1

1шт.

12

429353A1

COUPLING

1/8 PT sw

14шт.

13

429358A2

HOSE,3.17mm ID x 280mm L, SAE 100R7

Grease Filled, 280 mm (11 in)

2шт.

14

430142A1

TUBE

Grease Filled, 2750 mm (108-1/4 in), Cut From 430134A1

12шт.

15

432863A1

TUBE

Grease Filled, 1525 mm ( 60 in), Cut From 430133A1

1шт.

16

219-402

ADAPTER,90 Degree, 1/4"-1/8 NPTF

1/4 tpr x 1/8 PT

32шт.

17

429352A1

FITTING

1/4 tube x 1/8 PT str

28шт.

18

432856A1

TUBE

Grease Filled, 4270 mm (168 in), Cut From 430133A1

1шт.

19

429357A1

HOSE,3.20 mm ID x 6250.00 mm

Grease Filled, Cut From 430133A1

4шт.

20

429344A1

ELBOW

blkhd 1/8 PT x 1/4 NF

4шт.

21

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

4шт.

22

429348A1

HOSE

Grease Filled, 900 mm (35-7/16 in)

4шт.

23

430140A1

TUBE

Grease Filled, 750 mm (29-1/2 in), Cut From 430134A1

20шт.

24

429349A1

ELBOW

1/8 PT x 1/4 sw

4шт.

25

429618A1

BUSHING

1/4 NF x 1/8 PT str

4шт.

26

431125A1

HOSE

25.4 mm (1 in)

12шт.

27

1988888C1

CLAMP

3/8

12шт.

28

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

100шт.

29

195510A1

PROTECTION STRIP

91 mm (3-5/8 in), Cut From 1977224CX

4шт.

29

1982349C3

GASKET

Strip Protection, 183 mm (7-1/4 in), Cut From 1977224CX

2шт.

29

228634A1

PROTECTION STRIP

89 mm (3-1/2 in), Cut From 1330108CX

10шт.

29

1546371C1

PROTECTOR

Conduit, Convuluted, Not Illustrated

2шт.

30

430133A1

TUBE,3.20 mm ID x 12190.00 mm

Grease Filled

1шт.

31

430134A1

TUBE

Grease Filled, 15240 mm (50 ft)

1шт.

32

448990A1

TUBE,1/4" x 1/4"

1/4 in OD, Repair

1шт.
