Запчасти Case IH 2555 (09A-42) - TOOLBARS AND EXTENSIONS - 4 ROW WIDE (13) - PICKING SYSTEM

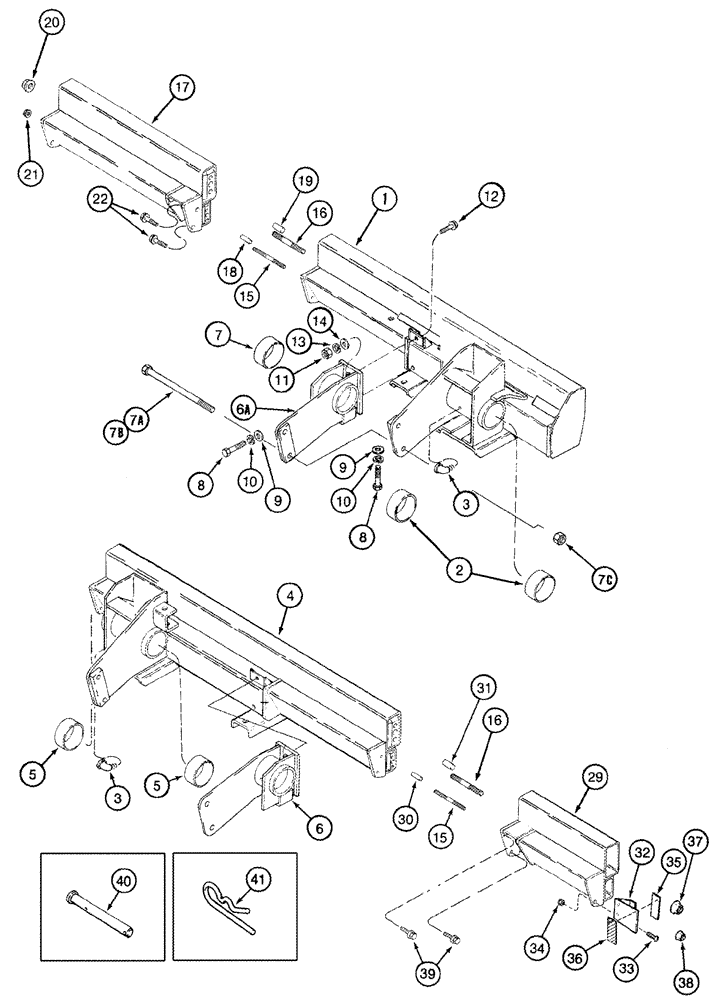

Схема запчастей Case IH 2555 - (09A-42) - TOOLBARS AND EXTENSIONS - 4 ROW WIDE (13) - PICKING SYSTEM
8
41
32
19
10
13
17
14
5
15
16
8
21
33
22
16
6a
11
3
7b
38
7a
3
4
9
2
37
5
12
30
7
18
29
31
20
9
35
15
39
34
40
1
7c
10
6
36

Артикул

Название

Примечание

Количество

1

293618A2

EXTENSION

Main Toolbar, Left Hand, Inc. 2

1шт.

2

115792A1

BUSHING

2шт.

3

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

5шт.

4

293619A2

EXTENSION

Main Toolbar, Right Hand, Inc. 5

1шт.

5

115792A1

BUSHING

2шт.

6

291787A3

SUPPORT

Tool Bar, Right Hand, Inc. 7

2шт.

6a

291788A3

SUPPORT

Tool Bar, Left Hand, Inc. 7

1шт.

7

115792A1

BUSHING

4шт.

7a

326-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 8

2шт.

7b

326-12176

BOLT,Hex, 3/4" - 10 x 11", Gr 8

2шт.

7c

231-41312

LOCK NUT,3/4"-10, GB

3/4

4шт.

8

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

4шт.

9

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

17/32 x 1-1/4 x 3/16

2шт.

10

492-11062

BEARING WASHER,5/8"

2шт.

11

329-1010

NUT,5/8"-11, G8

2шт.

12

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

2шт.

13

492-11062

BEARING WASHER,5/8"

4шт.

14

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

4шт.

15

1546294C1

STUD

13 x 113 mm

2шт.

16

1546293C1

STUD

19 x 113 mm

2шт.

17

294714A1

EXTENSION

Left Hand, 4 Row Wide, Inc. 18, 19

1шт.

18

37-11236

DOWEL,3/4" x 2 1/4"

3/4 x 2-1/4

1шт.

19

37-11632

DOWEL,1" x 2"

1 x 2 in

1шт.

20

232-53112

FLANGE NUT,Flg, 3/4"-10

2шт.

21

232-5318

FLANGE NUT,Flg, 1/2"-13

2шт.

22

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

29

1546292C1

EXTENSION

Right Hand, 4 Row Wide, Inc. 30, 31

1шт.

30

37-11236

DOWEL,3/4" x 2 1/4"

3/4 x 2-1/4

1шт.

31

37-11632

DOWEL,1" x 2"

1 x 2 in

1шт.

32

1994997C1

BRACKET

Reflector Toolbar

2шт.

33

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

2шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

35

1284374C1

REFLECTOR,Reflector Red

Red

2шт.

36

1284365C2

REFLECTOR

Amber

2шт.

37

232-53112

FLANGE NUT,Flg, 3/4"-10

2шт.

38

232-5318

FLANGE NUT,Flg, 1/2"-13

2шт.

39

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

40

118485A1

PIN,12.7mm OD x 150.75mm L

Support Hold-Down

1шт.

41

586591R1

COTTER PIN

1/8

1шт.

Выбрано товаров: 39
