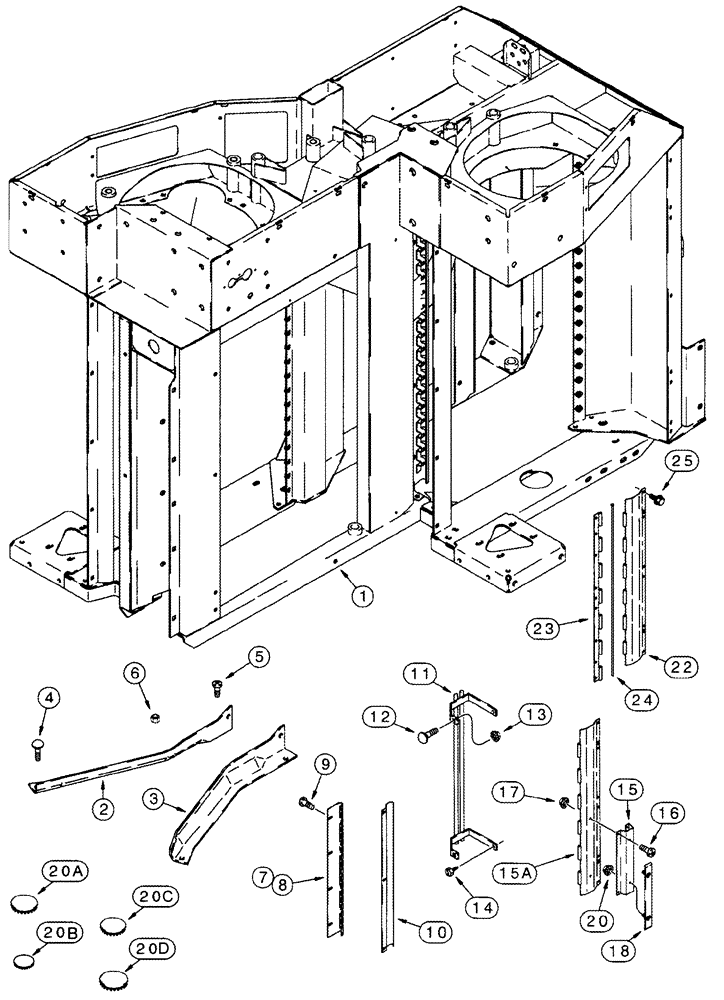

Запчасти Case IH 2555 (09A-40A) - DRUM HOUSING SERVICE KIT (13) - PICKING SYSTEM

1545965C5

FRAME

DRUM HOUSING SERVICE KIT, Inc. 1 - 6, Also Includes: See Figure(s) 09A-23, Ref. 33 - 37, 09A-29, Ref. 30 - 33; 09A-39A, Ref. 10 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Drum Frame, Order 1545965C4

1шт.

2

1990342C2

ANGLE BAR

Wear, Left Hand

2шт.

3

1990343C2

ANGLE BAR

Wear, Right Hand

2шт.

4

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8 x 3/4

4шт.

5

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

4шт.

6

425-106

NUT,3/8"-16, Cl 5

8шт.

7

1990345C1

PLATE

Vine Knife, Slat Bar Post, Right Hand

1шт.

8

1988970C2

PLATE

Vine Knife, Slat Bar Post, Left Hand

1шт.

9

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2

8шт.

10

1990349C1

PLATE

Vine Knife, Trash Post, Left Hand and Right Hand

1шт.

11

108497A1

GRATE

Trash

1шт.

12

411-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

5/16 x 3/4; 2

2шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

14

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

1/4 st x 1/2

2шт.

431787A1

PACKAGE

Doffer Supports, Inc. 15 - 20, 22 - 25

1шт.

15

177623A1

SUPPORT

Drum Bumper

1шт.

Note: Items 15 through 20 are used on No. 3 drum, 5 Row Narrow and No. 2 drum, 4 Row Narrow only.

1шт.

15a

194871A1

HINGE

Doffer Post, Narrow, Used With Drum Bumper Channel

1шт.

Note: Items 15 through 20 are used on No. 3 drum, 5 Row Narrow and No. 2 drum, 4 Row Narrow only.

1шт.

16

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 x 3/4

2шт.

Note: Items 15 through 20 are used on No. 3 drum, 5 Row Narrow and No. 2 drum, 4 Row Narrow only.

1шт.

17

231-5146

FLANGE NUT,3/8"-16

2шт.

Note: Items 15 through 20 are used on No. 3 drum, 5 Row Narrow and No. 2 drum, 4 Row Narrow only.

1шт.

18

1984383C2

WEAR STRIP

Guide Bar Top

1шт.

Note: Items 15 through 20 are used on No. 3 drum, 5 Row Narrow and No. 2 drum, 4 Row Narrow only.

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

Note: Items 15 through 20 are used on No. 3 drum, 5 Row Narrow and No. 2 drum, 4 Row Narrow only.

1шт.

431246A1

PACKAGE

Completing Parts, Inc. 13, 20A - 20C, Plus (2) of 515-23381

1шт.

20a

223796C2

PLUG

13/32 ID

1шт.

20b

205-78

HOLE PLUG BUTTON,9/32"

9/32 ID

1шт.

20c

205-80

HOLE PLUG BUTTON,11/32"

11/32 ID

1шт.

20d

205-117

PLUG 1 ID

2шт.

432015A1

PACKAGE

Doffer Supports, Inc. 22 (1), 23 - 25, Also Includes: See Figure 09A-39A

1шт.

22

1982598C3

HINGE

Doffer Post, Large

2шт.

23

1982599C1

HINGE

Doffer Post, Small

2шт.

24

1982600C1

PIN,7.94mm OD x 962mm L

Doffer Post Hinge

2шт.

25

409-7612

BOLT,3/8"-16 x 1.09" OAL

8шт.
