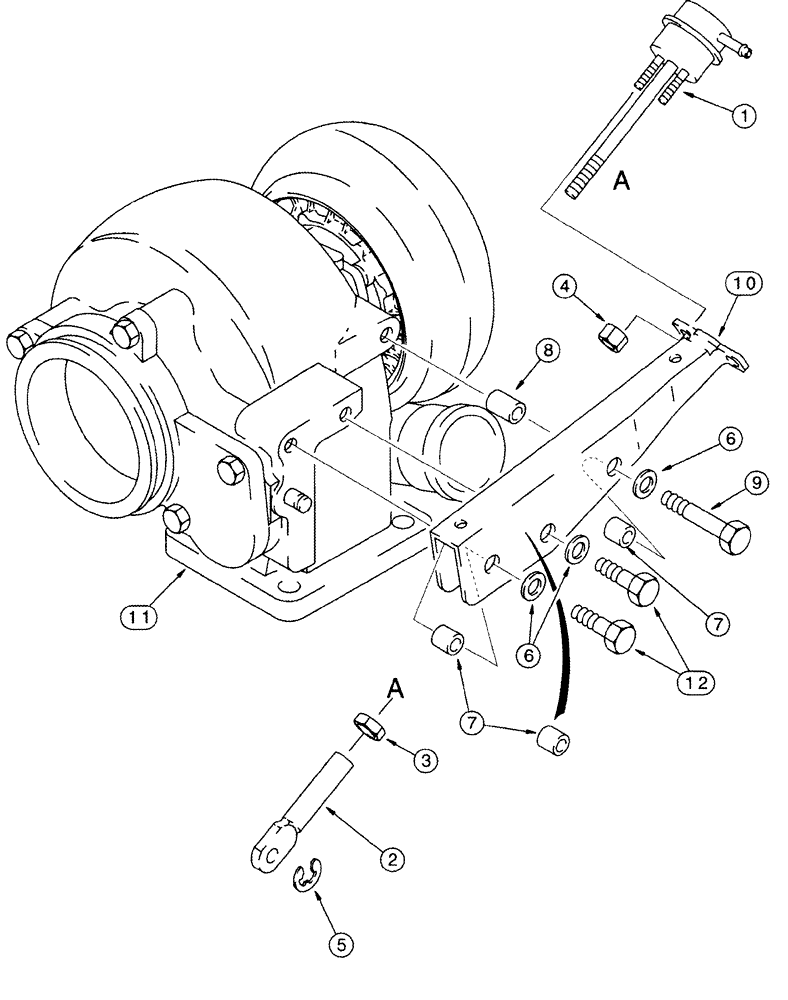

Запчасти Case IH 2555 (02-13) - WASTEGATE ACTUATOR (01) - ENGINE

REF

INSTRUCTION

Turbocharger Assy, Inc. 1 - 12, Also Inc. 2 - 22, See Figure 02-12

1шт.

1

J533135

ACTUATOR

1шт.

J533135C

CORE-HYD CYLINDER

Return Number, ACTUATOR - for N.A. Only

1шт.

J580830C

CORE-HYD CYLINDER

Return Number, ACTUATOR - for N.A. Only

1шт.

2

J528177

LINK

1шт.

3

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

4

J528204

LOCK NUT

1шт.

5

J528221

CIRCLIP

2шт.

NSS

NOT SOLD SEPARAT

Housing, Inc. 6 - 12

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

7

J532195

SPACER,9.38mm ID x 16.03mm OD x 13.7mm L

13.6 mm

3шт.

8

J532196

SPACER,9.38mm ID x 16.03mm OD x 19mm L

19 mm

1шт.

9

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

1шт.

10

J533328

SUPPORT

1шт.

11

NSS

NOT SOLD SEPARAT

Housing

1шт.

12

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.
