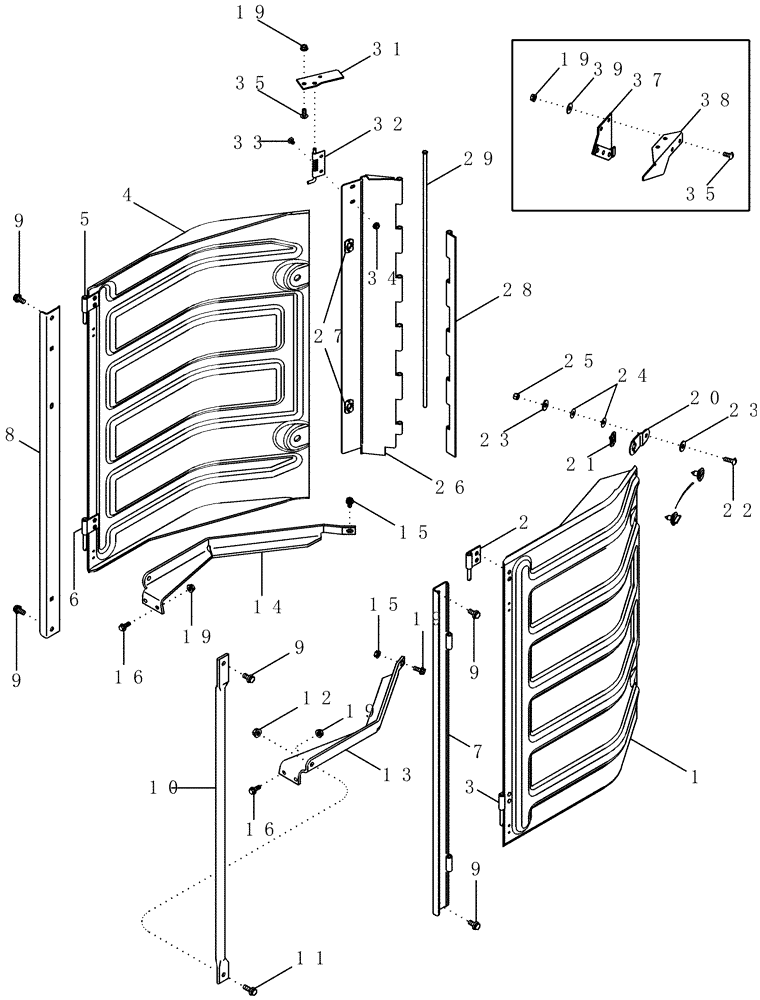

Запчасти Case IH 2555 (09A-39A) - FRONT AND REAR DOORS - ASN JJC0249800 (13) - PICKING SYSTEM

431238A1

PACKAGE

Rotor Doors, Inc. 1 - 6A

1шт.

431783A1

PACKAGE

Rotor Doors, Inc. 1A, 2, 3, 4A, 6, 6A

1шт.

432014A1

PACKAGE

Rotor Doors, Inc. 1 - 3, 4A, 6, 6A

1шт.

1

282110A4

DOOR

Front, Rotor Cover

1шт.

1a

118129A3

DOOR

Front Right Hand, Rotor Cover, With Automatic Height Control, Not Illustrated

1шт.

2

1546422C1

HINGE

Upper

1шт.

3

1546423C1

HINGE

Lower

1шт.

4

282112A4

DOOR

Rear, Rotor Cover

1шт.

4a

182022A3

DOOR

Rear Left Hand, Rotor Cover, Not Illustrated

1шт.

5

1546409C1

HINGE

Upper

1шт.

6

1546412C1

HINGE

Lower

1шт.

6a

151-233

RIVET,Tr Hd, 3/16" x 7/16", Alum.

Not Illustrated

1шт.

431239A1

PACKAGE

Doffer Supports, Inc. 7 - 12

1шт.

432015A1

PACKAGE

Doffer Supports, Inc. 7, 10, 11 (1), 12 (1); Also Includes: See Figure 09A-40A

1шт.

7

87408978

HINGE

Doffer Post Angle, Front

1шт.

8

87408979

HINGE

Doffer Post Angle, Rear

1шт.

9

409-7612

BOLT,3/8"-16 x 1.09" OAL

8шт.

10

402792A1

BRACE

Doffer Post

2шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

12

231-5146

FLANGE NUT,3/8"-16

6шт.

13

392698A1

ANGLE

Front Rotor Cover

1шт.

14

87408575

ANGLE

Rotor Cover Stop, Rear

1шт.

15

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

16

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

20

87409320

LATCH ASSY.

Front Rotor Cover, Inc. 21

2шт.

21

1326406C1

PEDESTAL

Receptacle Shield Fastener

1шт.

22

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

5/16 x 1

2шт.

23

496-41034

WASHER,.344" x 1" x .098", HDN

4шт.

24

87410387

BELLEVILLE WASHER

Belleville Rotor Door

4шт.

25

231-1445

NUT,5/16"-18, GB

2шт.

26

87409321

DOOR ASSY.

Rear Rotor Cover, Inc. 27

1шт.

27

1326406C1

PEDESTAL

Receptacle Shield Fastener

2шт.

28

87408573

HINGE

Cover Rotor Door Latch Plate, Weldment

1шт.

29

87408576

PIN,7.94mm OD x 755mm L

Latch Plate Hinge

1шт.

31

87408571

PLATE

Rotor Door Support

1шт.

32

87410418

PIN

Spring Type

1шт.

33

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

1/4 x 1/2

2шт.

34

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

(5)

2шт.

35

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

36

87413813

FLAP

Assy, Inc. 37

1шт.

37

87411066

FLAP

Moistener Column

1шт.

38

87411065

ANGLE

Cover, Filler AHC

1шт.

39

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

11/32 x 1 x 1/16

2шт.

40

87421438

KIT

Update, Quick Service Moistener Stand, Inc. 6, 17, 26, 28, 29, 31, 32, 36; Also Includes: See Figure(s) 09A-20, Ref 38, 38A, 39, 39A; 09A-25, Ref 28; Also Hardware Package, Templates and Instructions

1шт.

431281A1

PACKAGE

Automatic Height Control Fillers, Inc. 19 (2), 35 (2), 36 - 39

1шт.

431241A1

PACKAGE

Automatic Height Control Completing without Ladder Latch, Inc. 19 (2), 35 (2), 36, 37, 39; Also Includes: See Figure 09A-30

1шт.
