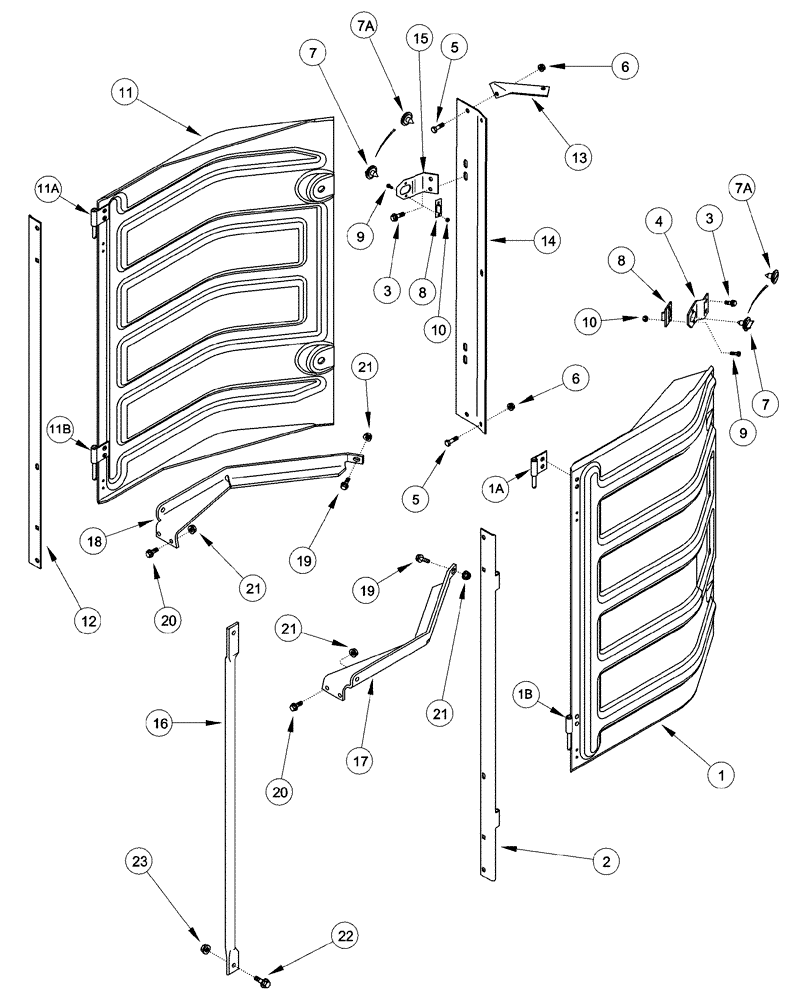

Запчасти Case IH 2555 (09A-39) - FRONT AND REAR DOORS - BSN JJC0249800 (13) - PICKING SYSTEM

1

282110A4

DOOR

Front, Rotor Cover, Inc. 1A, 1B

1шт.

1a

1546422C1

HINGE

Upper

1шт.

1b

1546423C1

HINGE

Lower

1шт.

2

281793A2

HINGE

Door, Front

1шт.

3

409-7612

BOLT,3/8"-16 x 1.09" OAL

8шт.

4

1546413C1

LATCH

Front, If Equipped

2шт.

4a

259536A1

LATCH

Front, If Equipped

2шт.

5

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

12шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

7

1326408C2

STUD,25.4mm OD x 52.3mm L

Hand Operated, If Equipped

4шт.

7a

325149A1

STUD

Tool Operated, If Equipped

4шт.

7b

292503A1

LATCH

Slam, Standard, If Equipped

4шт.

7c

292505A1

LATCH

Slam, Tool Operated, If Equipped

4шт.

8

292504A1

CASE

Slam Latch, If Equipped

4шт.

9

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

If Equipped

8шт.

10

225-14210

NUT,#10-32

If Equipped

8шт.

11

282112A4

DOOR

Rear, Rotor Cover

1шт.

11a

1546409C1

HINGE

Upper

1шт.

11b

1546412C1

HINGE

Lower

1шт.

12

281794A2

HINGE

Door, Rear

1шт.

13

1546428C1

BRACKET

Plate Support

1шт.

14

1546426C1

BRACKET

1шт.

15

1546425C1

LATCH

Rear, If Equipped

2шт.

15

259537A1

LATCH

Rear, If Equipped

2шт.

16

281795A1

HINGE

Doffer Post

2шт.

17

392698A1

ANGLE

Front

1шт.

18

392697A1

ANGLE

Rear

1шт.

19

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

20

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.

22

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

23

231-5146

FLANGE NUT,3/8"-16

2шт.

24

495-81032

WASHER,18.26mm ID x 31.75mm OD x 1.7mm Thk

23/32 x 1-1/4 x 3/64, Used With 7, 7A

24шт.

25

1326407C1

RETAINER

Used With 7, 7A

4шт.
