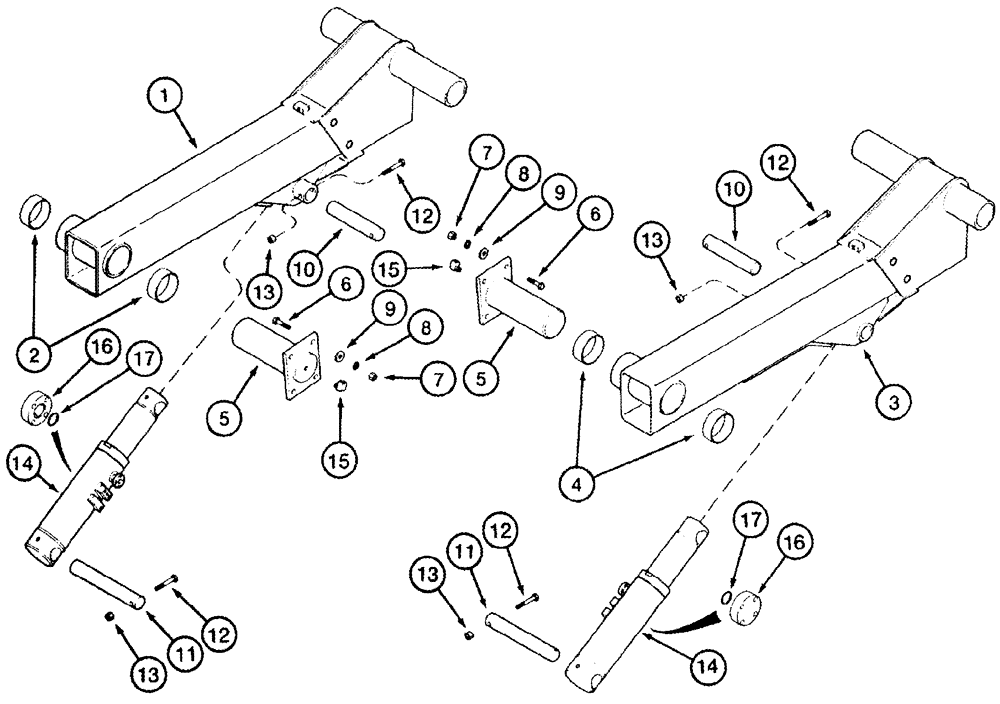

Запчасти Case IH 2555 (09A-32) - DRUM LIFT ARMS - 4 ROW WIDE (13) - PICKING SYSTEM

1

1983036C6

LOWER LINK

Left Hand, Inc. 2

1шт.

2

115792A1

BUSHING

2шт.

3

1983037C6

LOWER LINK

Right Hand, Inc. 4

1шт.

4

115792A1

BUSHING

2шт.

5

1983050C2

PIN

2шт.

6

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

8шт.

7

429-108

NUT,1/2"-13, G8

1/2; 8

8шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

8шт.

9

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

8шт.

10

1983053C1

PIN

Lift Cylinder, Upper

2шт.

11

1983054C1

PIN

Lift Cylinder, Lower

2шт.

12

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2 x 3-1/4

4шт.

13

231-4138

LOCK NUT,1/2"-13, GB

4шт.

14

295532A1

CYLINDER ASSY.

Drum Lift, 98 ID x 235 mm strk, See Figure 08-27

2шт.

15

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

2шт.

16

112291A1

COVER

Switch Port

2шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.
