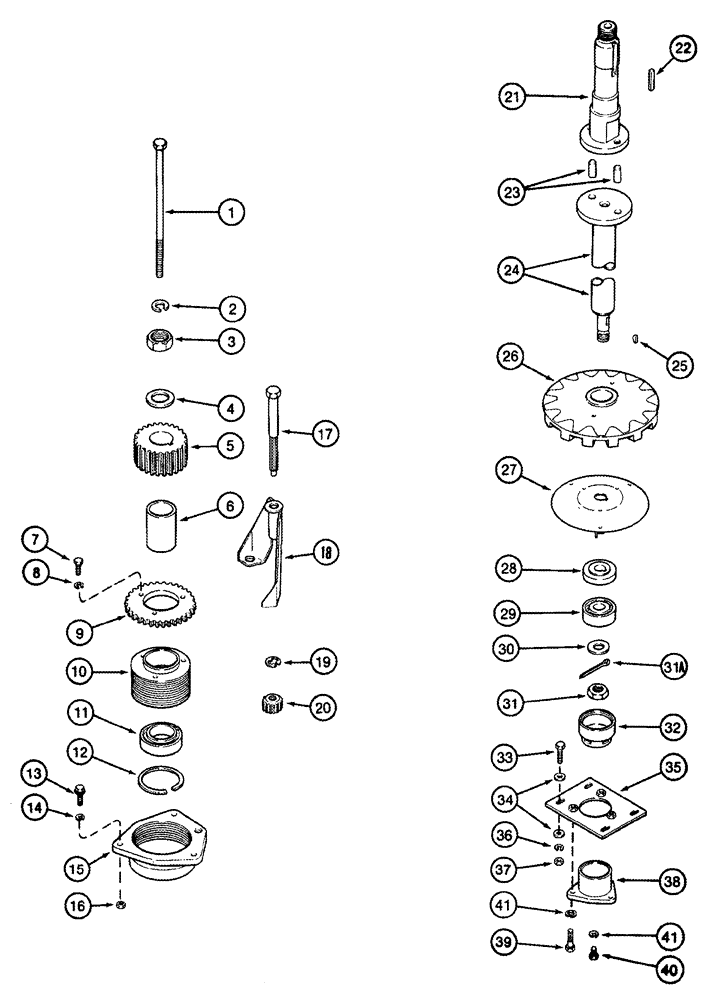

Запчасти Case IH 2555 (09A-23) - DOFFER (13) - PICKING SYSTEM

1

413-8168

BOLT,Hex, 1/2" - 13 x 10-1/2", Gr 5

1/2 x 10-1/2

2шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

3

329-1518

JAM NUT,Jam, 1 1/8"-12, G8

2шт.

4

495-81190

WASHER,1.16" ID x 1.75" OD x 0.12" Thk

1-5/32 x 1-3/4 x 1/8

2шт.

5

181441A1

GEAR

42T, If Used

2шт.

5

1339303C1

GEAR

36T, If Used

2шт.

6

1982420C1

SPACER

35 x 48 x 73

2шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

8

492-11031

LOCK WASHER,5/16"

6шт.

9

1982389C1

GEAR

56T

2шт.

10

1982373C2

ADJUSTMENT SCREW

Adjusting

2шт.

11

662519R91

BALL BEARING,1.5312" ID x 80 mm OD x 1.083"

2шт.

12

49137D

RING, SNAP

RING SNAP Large

2шт.

13

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

6шт.

14

492-11038

LOCK WASHER,3/8"

6шт.

15

1982372C2

FLANGE,121.95 mm ID x 48 mm

Bearing, Drive Shaft

2шт.

16

425-106

NUT,3/8"-16, Cl 5

6шт.

17

1982419C2

BOLT

2шт.

18

1982577C2

SUPPORT

Doffer Adjusting

2шт.

19

100-3362

SNAP RING,#62, .480" Dia, E-Type

2шт.

20

216584C3

GEAR

6шт.

21

1982374C1

SHAFT

2шт.

22

457400R1

KEY,5/16" Sq x 1 3/4", Par

5/16 x 1-3/4

2шт.

123613A1

SHAFT

Doffer Assembly, Inc. 23 - 32, Order From Ship Direct B123613A1

2шт.

123613A1R

SHAFT

Doffer Assembly, Remanufactured

1шт.

123613A1C

DOFFER

1шт.

23

37-1614

DOWEL,3/8" x 7/8"

3/8 x 7/8

2шт.

24

1982375C1

SHAFT

1шт.

25

126-113

WOODRUFF KEY,#61, 3/16" x 5/8", HT

2шт.

26

123175A1

DOFFER,Assembly, Non Contaminating, White Rubber

White Rubber

18шт.

26

383311A1

DOFFER

Urethane

18шт.

27

1329439C1

DISC

1шт.

28

87282C1

WASHER

Used as a Spacer

1шт.

29

669807R91

BALL BEARING,0.751" ID x 52 mm OD x 0.7"

1шт.

30

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

25/32 x 1-1/4 x 1/16

1шт.

31

425-1312

SLOTTED NUT,3/4"-16, G5

3/4 NF

1шт.

31a

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

32

1339066C1

BEARING CAP,48mm ID x 52mm OD x 40.10mm

Protective, Shipping

1шт.

33

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

34

496-21041

WASHER,13/32" x 13/16" x .089", HDN

16шт.

35

223977C1

PLATE

Adjusting

2шт.

36

492-11038

LOCK WASHER,3/8"

8шт.

37

425-106

NUT,3/8"-16, Cl 5

8шт.

38

669806R2

CAGE

Bearing, Lower

2шт.

39

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

40

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

41

492-11038

LOCK WASHER,3/8"

8шт.
