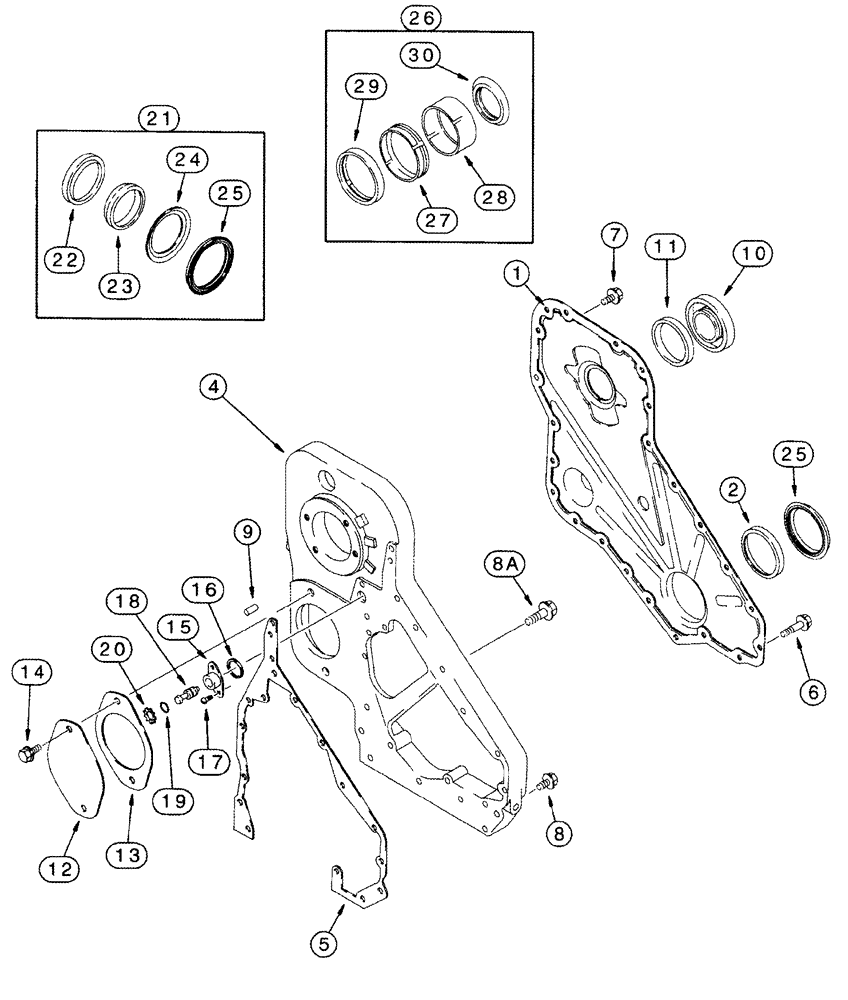

Запчасти Case IH 2555 (02-09) - FRONT GEAR COVER (01) - ENGINE

1

J926838

COVER

1шт.

2

NSS

NOT SOLD SEPARAT

Seal, See Figure 02-21, Order A77790, A77808

1шт.

3

J823494

SEALANT

3 oz, Not Illustrated

1шт.

4

J929555

TRANSMISSION HOUSING

1шт.

5

J929253

GASKET

1шт.

6

J926863

FLANGE BOLT

M8 x 50

6шт.

7

J924962

FLANGE BOLT

M8 x 16

17шт.

8

J926846

FLANGE BOLT

M8 x 20

5шт.

8a

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

4шт.

9

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

10

J903463

PLUG,M63 x 5

1шт.

11

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

12

J914868

COVER

1шт.

13

J931608

GASKET

1шт.

14

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

15

J919683

HOUSING

1шт.

16

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

17

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

18

J903924

PIN,18.87mm OD x 55mm L

1шт.

19

J913994

O-RING

1шт.

20

100-2587

SNAP RING,0.875", Int, #87

1шт.

21

A77790

SEAL KIT

Crankshaft, Front, Inc. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

Seal

1шт.

23

NSS

NOT SOLD SEPARAT

Tool

1шт.

24

NSS

NOT SOLD SEPARAT

Tool

1шт.

25

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

26

A77808

SERVICE KIT

Crankshaft, Front, Inc. 27 - 30

1шт.

27

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

28

NSS

NOT SOLD SEPARAT

Tool

1шт.

29

NSS

NOT SOLD SEPARAT

Seal

1шт.

30

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

1шт.
