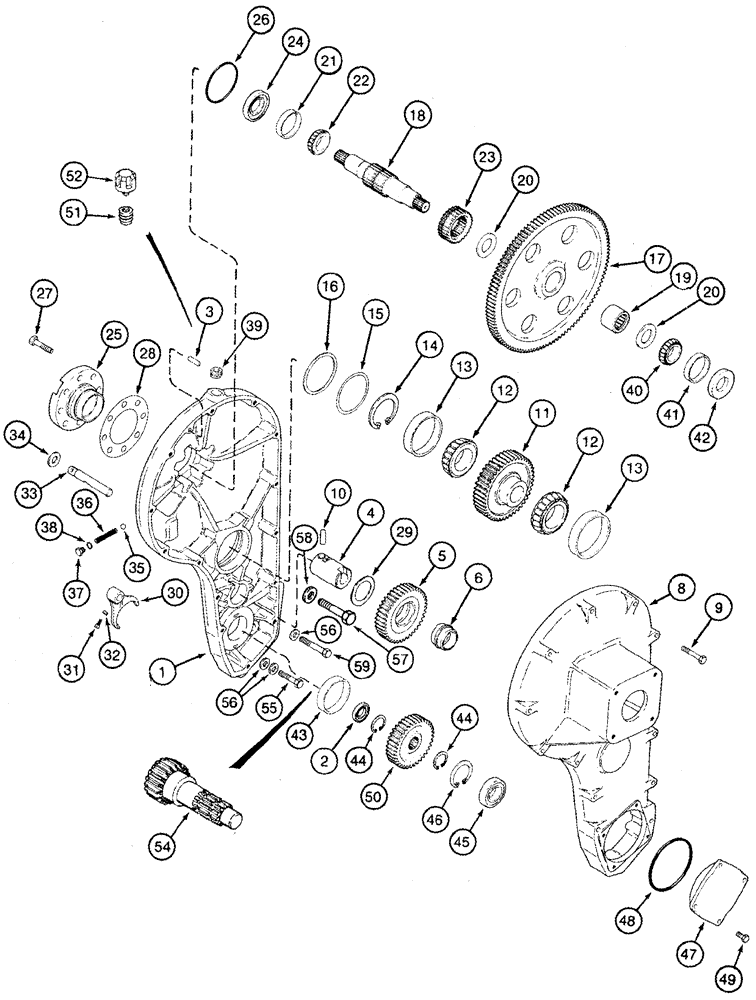

Запчасти Case IH 2555 (09A-02) - DRUM DRIVE ASSY (13) - PICKING SYSTEM

119860A3

DRIVE ASSY.

Inc. 1 - 50

1шт.

119860A3R

REMAN-GEARBOX

2555 CASE IH COTTON EXPRESS COTTON PICKER (AFTER S/N JJC0249500)

1шт.

119860A3C

CORE-GEARBOX

Return Number

1шт.

1

1997871C4

HOUSING

Inc. 2, 3

1шт.

2

1997606C2

SEAL,36mm ID x 68.15mm OD x 8mm Thk

1шт.

3

37-1612

DOWEL,3/8" x 3/4"

3/8 x 3/4

2шт.

238890A3

PACKAGE

Inc. 4, 5, 6, 10, 29

1шт.

4

237002A1

SHAFT

Idler

1шт.

5

237001A1

GEAR

43T, Idler

1шт.

6

237008A1

BEARING ASSY

Inc. Cup, Cone and Spacers

1шт.

8

1997564C2

COVER

1шт.

9

326-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

14шт.

10

838-11236

LOCK PIN,12mm OD x 36mm L, Slotted

12 x 36 mm

1шт.

11

1342896C1

GEAR

1шт.

12

ST2194

BEARING, CONE

2шт.

13

29214H

BEARING CUP,110mm OD x 18.82mm W

4-5/16 OD

2шт.

14

100-21433

SNAP RING,4.331", Int, #433

1шт.

15

1342900C1

SHIM,96mm ID x 109.5mm OD x 0.08mm Thk

(0.003")

1шт.

15

1342901C1

SHIM,96mm ID x 109.5mm OD x 0.13mm Thk

(0.005")

1шт.

15

1342902C1

SHIM,0.178mm Thk

(0.007")

1шт.

15

1997901C1

SHIM,0.762mm Thk

(0.030")

1шт.

16

1349011C1

BACKING PLATE

1шт.

17

87153C2

GEAR

121T, Output

1шт.

18

1342677C1

SHAFT

Output

1шт.

19

A50606

NEEDLE BEARING,Needle, 44.45mm ID x 53.98mm OD x 38.1mm W

1шт.

20

390362R1

THRUST WASHER,44.63mm ID x 63mm OD x 3.16mm Thk

2шт.

21

663558R1

BEARING CUP

2-57/64 OD

1шт.

22

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1-5/8 ID

1шт.

23

87151C1

COUPLING

1шт.

24

1990323C1

SEAL,38.05mm ID x 68.33mm OD x 12.7mm Thk

1шт.

25

1342671C2

CAGE

Upper

1шт.

26

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

27

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

28

1342903C1

SHIM,0.076mm Thk

(0.003")

1шт.

28

1342904C1

SHIM,0.127mm Thk

(0.005")

1шт.

28

1342905C1

SHIM,0.178mm Thk

(0.007")

1шт.

28

1997902C1

SHIM,0.762mm Thk

(0.030")

1шт.

29

237003A1

SHIM,54.5mm ID x 70mm OD x 0.05mm Thk

(0.002")

4шт.

29

237004A1

SHIM,54.5mm ID x 70mm OD x 0.1mm Thk

(0.004")

2шт.

29

237005A1

SHIM,54.5mm ID x 70mm OD x 0.6mm Thk

(0.024")

4шт.

30

115000A1

SHIFTER FORK

1шт.

31

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

3/8 NF x 1

1шт.

32

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

33

1342662C1

RAIL

1шт.

34

1997906C1

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

1шт.

35

211-1012

BALL,3/8" Dia

3/8; 24,CRS

1шт.

36

121545C1

SPRING

1шт.

37

76349

PLUG,9/16" - 18 ORB

Incl. 38

1шт.

39

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

40

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

1шт.

41

165964R1

BEARING CUP

1шт.

42

1997905C1

SEAL,34.92mm ID x 65.15mm OD x 9.5mm Thk

35 mm ID

1шт.

43

130503H

BEARING CUP

3-17/64 OD

1шт.

44

A21619

CIRCLIP

2шт.

45

119777A1

ROLLER BEARING,30mm ID x 72mm OD x 19mm W

30 mm OD

1шт.

46

800-2172

SNAP RING

No. 72, Internal

1шт.

47

1342440C1

CAP

1шт.

48

238-5254

O-RING,0.139" Thk x 5.484" ID, -254, Cl 5, 75 Duro

1шт.

49

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

50

1342898C1

GEAR

39T

1шт.

51

217-48

REDUCER,3/4" - 14 NPTF x 1/4" - 18 Fem NPTF

3/4 PT x 1/4 fem, If Used

1шт.

52

1971726C1

BREATHER,1/4" - 18

If Used

1шт.

54

119835A1

PINION

26T, Input Pinion, See Figure 06-19, Ref. 5

1шт.

55

628-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

56

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

9шт.

57

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

2шт.

58

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

2шт.

59

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

1шт.

38

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
