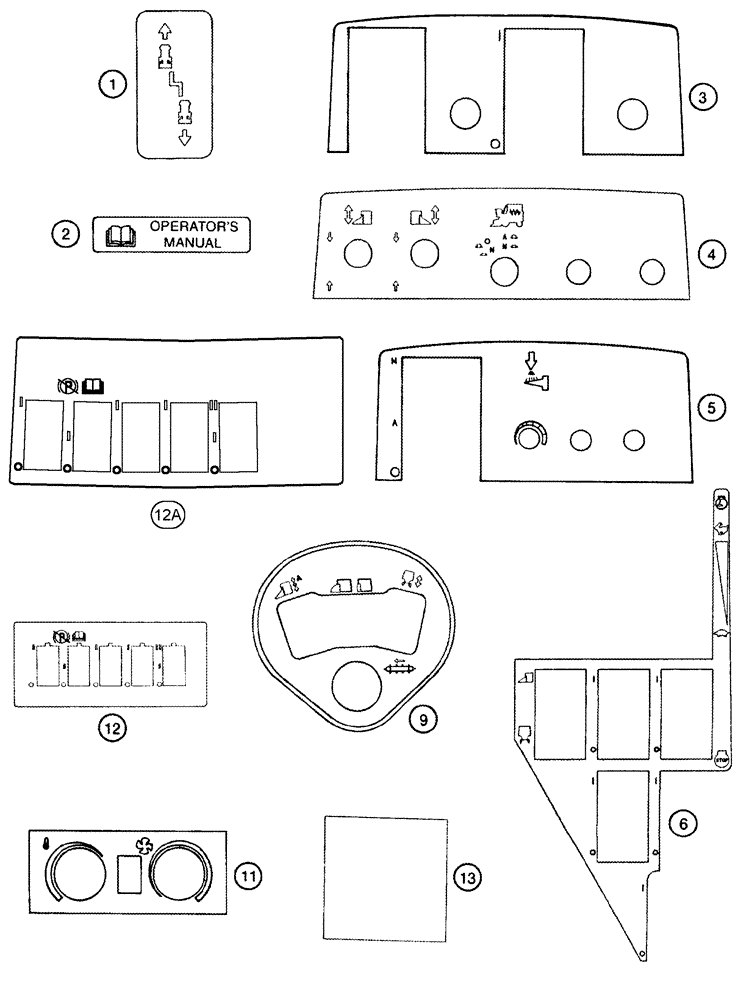

Запчасти Case IH 2555 (09F-27) - DECALS - CAB (12) - CHASSIS

235156A1

DECAL

Inc. 1 - 6, Control Console, Right Hand

1шт.

1

NSS

NOT SOLD SEPARAT

Decal, Console Propulsion

1шт.

2

NSS

NOT SOLD SEPARAT

Decal, Console Operators Manual, Not Illustrated

1шт.

3

NSS

NOT SOLD SEPARAT

Decal, Console Drum Service

1шт.

4

NSS

NOT SOLD SEPARAT

Decal, Console Drum

1шт.

5

NSS

NOT SOLD SEPARAT

Decal, Console Moistener

1шт.

6

NSS

NOT SOLD SEPARAT

Decal, Console Drum Lube

1шт.

6a

144382A1

WARNING DECAL

Operators manual, console, European Models, Not Illustrated

1шт.

7

238211A1

DECAL

Gauge And Warning, Instrument Panel, Not Illustrated, See Figure 09F-23, REF 8

1шт.

8

123720A1

DECAL

Keypad, Not Illustrated, See Figure 09F-23, REF 9

1шт.

9

144113A2

DECAL

Propulsion Control Lever Cover Plate

1шт.

10

120332A1

DECAL

Directional Arrows, Not Illustrated, See Figure 9F-22, REF 16

1шт.

11

139641A2

DECAL

Heating and Air Conditioning, Overhead

1шт.

12

291616A1

DECAL

Rocker Switch, Overhead, Serial Range: -JJC249799

1шт.

12a

87404881

DECAL

Overhead Switch, Start Serial: JJC0249800

1шт.

13

224636A1

DECAL

Connector Cover, Cab Exterior

1шт.
