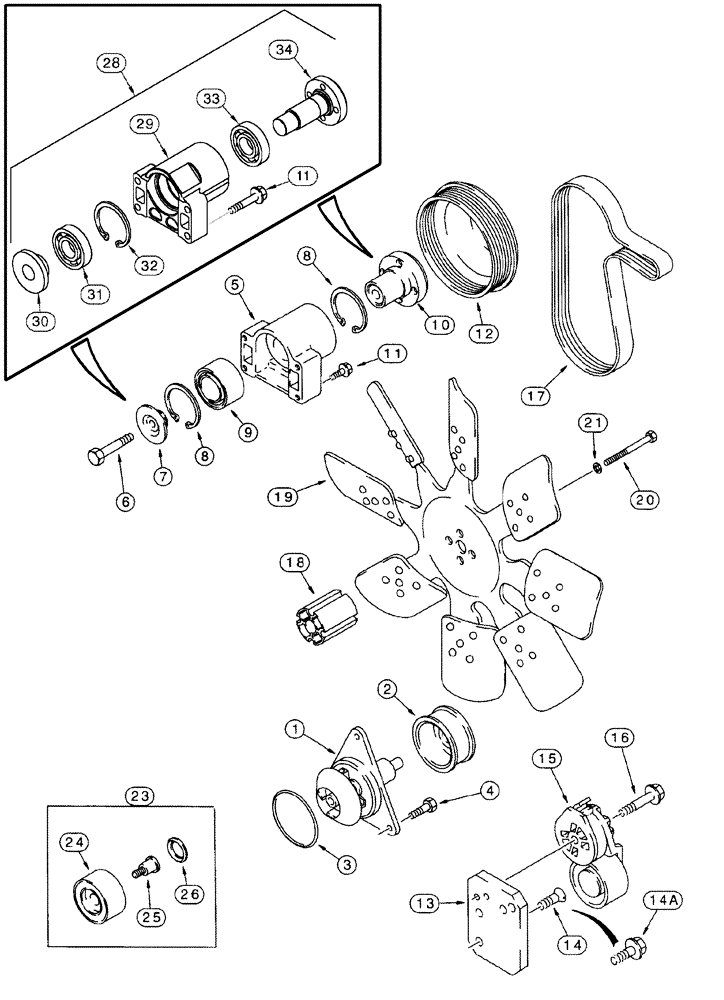

Запчасти Case IH 2555 (02-08) - WATER PUMP SYSTEM (01) - ENGINE
№
Артикул
Название
Примечание
Количество
J800976
WATER PUMP
Includes 1 - 3
1шт.
J800976R
REMAN-WATER PUMP
2555 (AFTER S/N JJC0249500)
1шт.
J800976C
CORE-WATER PUMP
Return Number
1шт.
1
NSS
NOT SOLD SEPARAT
Pump
1шт.
2
NSS
NOT SOLD SEPARAT
Pulley
1шт.
3
J902089
SEAL,0.139" Thk x 3.859" ID, -241
1шт.
4
J926125
BOLT,Hex, M8 x 28mm, Cl 8.8
M8 x 28
3шт.
5
J929458
SUPPORT
Inc. 6 - 10, Serial Range: -JFG010001
1шт.
6
J907769
BOLT,Hex, M10 x 70mm, Cl 12.9
M10 x 70, Serial Range: -JFG010001
1шт.
7
J923044
RETAINER
, Serial Range: -JFG010001
1шт.
8
100-21250
SNAP RING,2.50", Int, #250
, Serial Range: -JFG010001
2шт.
9
J910739
BALL BEARING,35mm ID x 64mm OD x 37mm W
, Serial Range: -JFG010001
1шт.
10
J911924
HUB
, Serial Range: -JFG010001
1шт.
11
845-8050
BOLT,Hvy Hex, M8 x 50mm, Cl 8.8
4шт.
13
J925188
SUPPORT
1шт.
14
J925186
SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9
1шт.
14a
844-8025
BOLT,Hvy Hex, M8 x 25mm, Cl 8.8
1шт.
15
J936203
BELT TENSIONER
1шт.
16
854-10075
BOLT,Hvy Hex, M10 x 75mm, Cl 10.9
1шт.
17
J911567
BELT,27.92mm W x 1701.8mm L, 8 Ribs
1шт.
18
A184548
SPACER,Fan, 89/90mm Thk
90 mm
1шт.
19
1547933C1
FAN
1шт.
20
814-10125
BOLT,Hex, M10 x 1.5 x 125mm, Cl 8.8
M10 x 125
4шт.
21
896-12010
WASHER,11mm ID x 21mm OD x 2.5mm Thk
11 x 21 x 2,5 mm
4шт.
23
A77817
KIT
Tensioner, Inc. 24 - 26
1шт.
24
NSS
NOT SOLD SEPARAT
Pulley
1шт.
25
NSS
NOT SOLD SEPARAT
Bolt
1шт.
26
NSS
NOT SOLD SEPARAT
Seal
1шт.
29
NSS
NOT SOLD SEPARAT
Support, Fan, Start Serial: JFG010001
1шт.
30
J931016
RETAINER
Fan Hub, Start Serial: JFG010001
1шт.
31
J933440
BALL BEARING
, Start Serial: JFG010001
1шт.
32
100-21244
SNAP RING,2.44", Int, #244
, Start Serial: JFG010001
1шт.
33
NSS
NOT SOLD SEPARAT
Bearing, Ball, Start Serial: JFG010001
1шт.
34
J934104
HUB
Fan, Start Serial: JFG010001
1шт.
Выбрано товаров: 36
