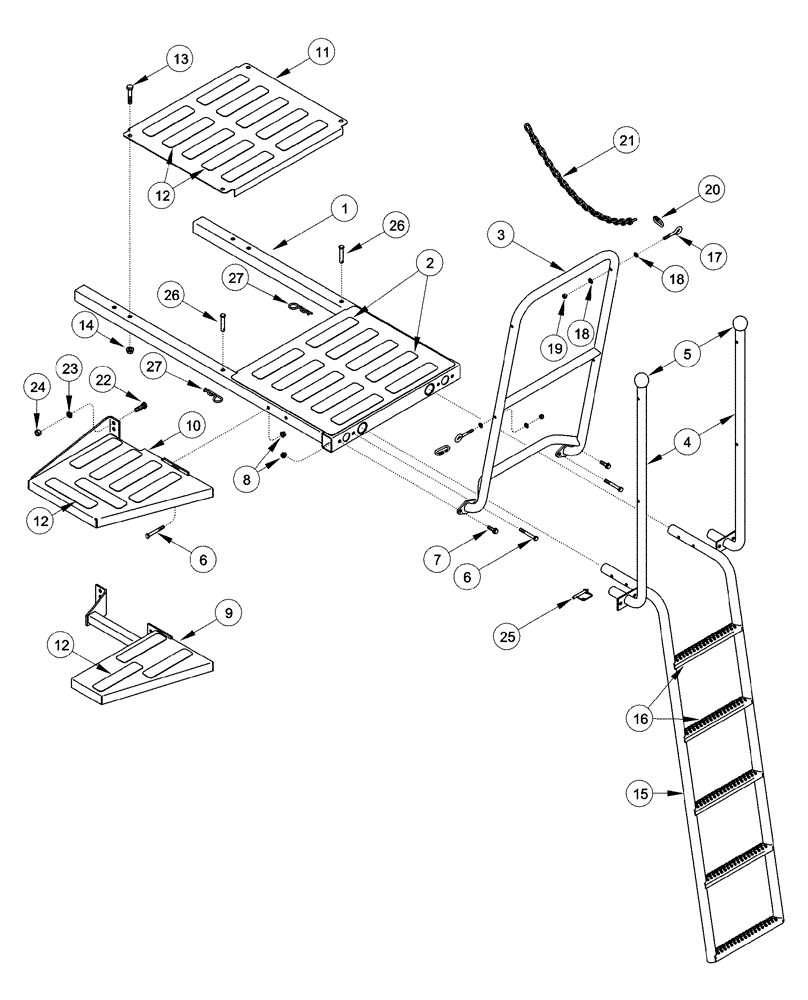

Запчасти Case IH 2555 (09F-19) - SERVICE DECK PLATFORM AND LADDER, ASN JJC0249565 (12) - CHASSIS

1

448078A1

PLATFORM ASSY.

Inc. 2

1шт.

2

D55216

PAD,2" x 9"

2 x 9 in

10шт.

3

445286A1

GRAB RAIL

4 Row Wide, 4 Row Narrow

1шт.

4

446227A1

POST

Post, 5 Row, Inc. 5

2шт.

5

349014A1

KNOB

1шт.

6

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

7

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

8

231-5146

FLANGE NUT,3/8"-16

1шт.

9

86989566

STEP

4 Row Wide, Inc. 12 (3)

1шт.

10

448362A1

PLATFORM

4 Row Narrow, Inc. 12 (6)

1шт.

11

448075A1

PLATFORM

Platform Extension, Inc. 12 (10)

1шт.

12

D55216

PAD,2" x 9"

2 x 9 in

1шт.

13

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2

1шт.

14

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

15

447657A2

LADDER

5 Row, Inc. 16

1шт.

16

176342A2

TREAD

6шт.

17

449894A1

EYEBOLT

8шт.

18

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

16шт.

19

231-4215

LOCK NUT,5/16"-18, GB

8шт.

20

326376A2

LINK

8шт.

21

449891A1

CHAIN

Service Platform

4шт.

22

414-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

1/2 x 1-1/2; 5

2шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

24

425-108

NUT,1/2" - 13, Gr 5

2шт.

25

1338021C1

PIN,7.94mm OD

2шт.

26

439-1848

HEADED PIN,1/2" x 3"

1/2 x 3; 2

2шт.

27

486830R1

COTTER PIN

2шт.
