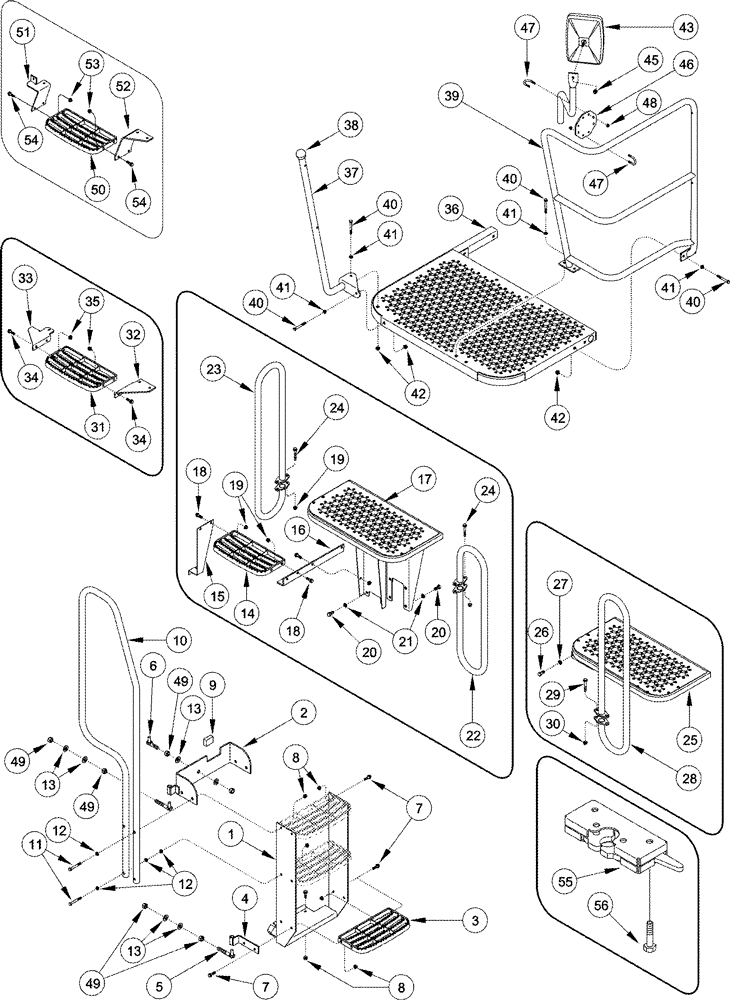

Запчасти Case IH 2555 (09F-18) - DRUM LADDER, STEP AND CAB PLATFORM, ASN JJC0249565 (12) - CHASSIS

NSS

NOT SOLD SEPARAT

Ladder Assy, Cotton Drum, Inc. 1 - 13

1шт.

1

437571A1

SUPPORT

Ladder Base

1шт.

2

437572A1

SUPPORT

Ladder, Upper

1шт.

3

257375A1

STEP

3шт.

4

437573A1

HINGE

Drum Ladder

1шт.

5

437580A1

PIVOT PIN

100 mm (3-15/16 in)

2шт.

6

437581A1

PIVOT PIN

60 mm (2-3/8 in)

1шт.

7

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

13шт.

8

231-5146

FLANGE NUT,3/8"-16

13шт.

9

187884C1

SEALING STRIP,50mm L

51 mm (2 in), Cut From 187885C1

1шт.

10

437579A1

HANDRAIL

Drum Ladder, Front

1шт.

11

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

12

495-81129

WASHER,13/32" x 3/4" x .120"

13/32 x 3/4 x 7/64

8шт.

13

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

6шт.

NSS

NOT SOLD SEPARAT

Step Assy, Drum Number 1 (4 Row Wide), Drum Number 1 (5 Row Narrow), Drum Number 1 (5 Row Wide), Inc. 14 - 24

1шт.

14

257375A1

STEP

1шт.

15

440864A1

SUPPORT

1шт.

16

440863A1

ANGLE

1шт.

17

445964A3

STEP

1шт.

18

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

6шт.

19

231-5146

FLANGE NUT,3/8"-16

10шт.

20

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

6шт.

21

892-11012

LOCK WASHER,M12

6шт.

22

445285A1

GRAB RAIL

1шт.

23

447138A1

HANDRAIL

Drum Number 1 (4 Row Narrow), Drum Number 1 (5 Row Wide)

1шт.

23

87413926

GRAB RAIL

Drum Number 1 (4 Row Wide), Drum Number 1 (5 Row Narrow)

1шт.

24

409-7640

BOLT,Hex Flg, 3/8" - 16 x 2 1/2", Spcl

3/8 x 2-1/2

4шт.

NSS

NOT SOLD SEPARAT

Step Assy, Drum Number 1 (4 Row Narrow), Inc. 25 - 30

1шт.

25

448356A3

STEP

1шт.

26

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

27

892-11012

LOCK WASHER,M12

2шт.

28

447138A1

HANDRAIL

1шт.

29

409-7640

BOLT,Hex Flg, 3/8" - 16 x 2 1/2", Spcl

3/8 x 2-1/2

2шт.

30

231-5146

FLANGE NUT,3/8"-16

2шт.

NSS

NOT SOLD SEPARAT

Step Assy, Drum Number 1 (5 Row Wide), Inc. 31 - 35

1шт.

31

257375A1

STEP

1шт.

32

446243A1

SUPPORT

1шт.

33

446242A1

SUPPORT

1шт.

34

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

4шт.

35

231-5146

FLANGE NUT,3/8"-16

4шт.

NSS

NOT SOLD SEPARAT

Platform Assy, Cab, Inc. 36 - 48

1шт.

36

443457A1

PLATFORM ASSY.

1шт.

37

446457A1

POST

Post, Inc. 38

1шт.

38

349014A1

KNOB

1шт.

39

440869A1

HANDRAIL

Cab Platform

1шт.

40

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

6шт.

41

495-81129

WASHER,13/32" x 3/4" x .120"

13/32 x 3/4 x 7/64

6шт.

42

231-5146

FLANGE NUT,3/8"-16

6шт.

43

1283403C1

MIRROR

Cab, Left Hand

1шт.

44

449402A1

TUBE

Cab Mirror, Left Hand

1шт.

45

122379A1

FLANGE NUT

3/8

1шт.

46

449401A1

PLATE

1шт.

47

140374A1

U-BOLT,5/16" - 18 x 41mm W x 47mm L

4шт.

48

231-4215

LOCK NUT,5/16"-18, GB

8шт.

49

425-1010

NUT,5/8"-11, G5

6шт.

NSS

NOT SOLD SEPARAT

Step Assy, Cab Platform, 4 Row Narrow, Inc. 50 - 54

1шт.

50

257375A1

STEP

1шт.

51

448361A1

SUPPORT

Left Hand

1шт.

52

448360A1

SUPPORT

Right Hand

1шт.

53

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

4шт.

54

231-5146

FLANGE NUT,3/8"-16

4шт.

55

141224A1

LATCH

1шт.

56

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.
