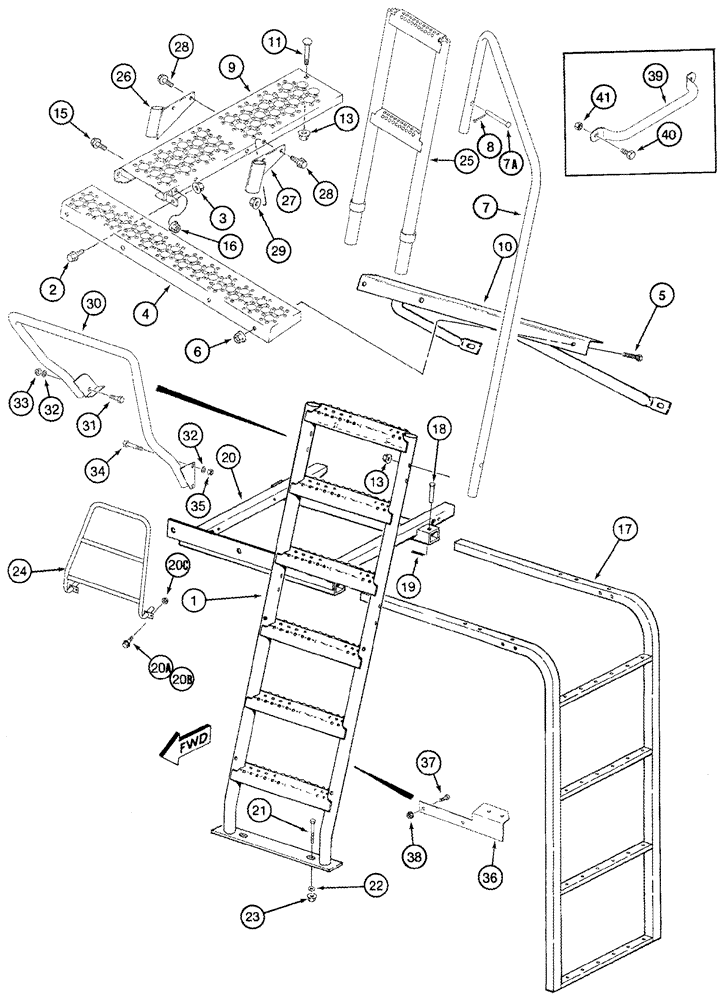

Запчасти Case IH 2555 (09F-16) - STEPS - LADDERS, BSN JJC0249565 (12) - CHASSIS

1

444246A2

LADDER

Basket

1шт.

2

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

4

245139A1

STEP

Basket Ladder, Front

1шт.

5

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

5шт.

6

231-5146

FLANGE NUT,3/8"-16

5шт.

7

277782A1

RAMP

Basket, Upper, Right Hand

1шт.

7a

439-1624

HEADED PIN,3/8" x 1 1/2"

3/8 x 1-1/2; 2

2шт.

8

586591R1

COTTER PIN

1/8

2шт.

9

245187A1

STEP

Basket Ladder, Rear

1шт.

10

245140A1

SUPPORT

Basket Ladder, Upper

1шт.

11

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

2шт.

12

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

13

231-5146

FLANGE NUT,3/8"-16

3шт.

15

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

16

231-4116

NUT,3/8"-16, GB

3/8

2шт.

17

1988663C3

LADDER

Access, Lower

1шт.

18

439-1848

HEADED PIN,1/2" x 3"

1/2 x 3; 2

2шт.

19

432-1216

COTTER PIN,3/16" x 1"

2шт.

20

1545968C4

SUPPORT

Ladder

1шт.

20a

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

1/2 x 1

2шт.

20b

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

3шт.

20c

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

5шт.

21

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

23

231-5146

FLANGE NUT,3/8"-16

2шт.

24

1545972C3

GRAB RAIL

Platform

1шт.

25

245143A3

LADDER

Basket, Upper

1шт.

26

232549A1

SUPPORT

Basket Ladder, Upper, Left Hand

1шт.

27

232550A1

SUPPORT

Basket Ladder, Upper, Right Hand

1шт.

28

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

29

231-5146

FLANGE NUT,3/8"-16

4шт.

30

283089A2

TUBE,579 mm Length

Basket, Lower, Right Hand

1шт.

31

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

32

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

13/32 x 1-1/4 x 3/32

2шт.

33

231-5146

FLANGE NUT,3/8"-16

1шт.

34

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

35

231-4146

NUT,3/8"-16, GB

1шт.

36

259963A1

HOLDER

Mounting, Front, Fire Extinguisher

1шт.

37

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

38

231-5146

FLANGE NUT,3/8"-16

2шт.

39

256952A2

HANDRAIL

If Used

1шт.

40

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

If used

2шт.

41

231-5346

FLANGE NUT,Flg, 3/8"-16

If Used

2шт.
