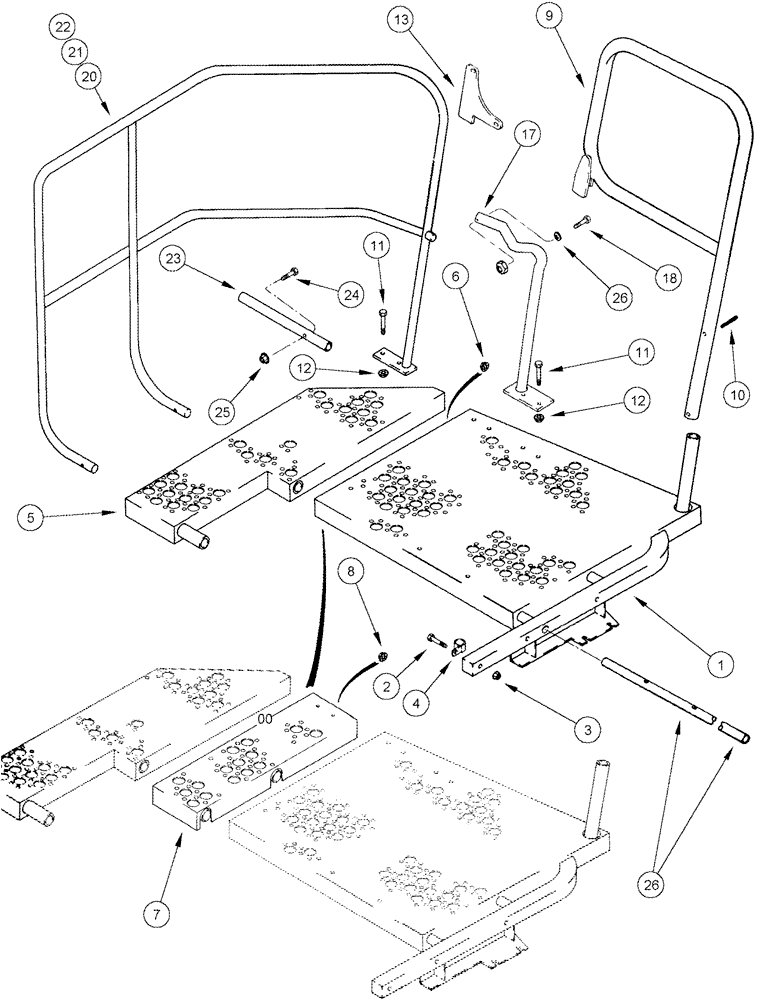

Запчасти Case IH 2555 (09F-14) - PLATFORM AND HANDRAILS - 5 ROW WIDE, BSN JJC0249565 (12) - CHASSIS

1

130646A5

PLATFORM ASSY.

Cab, Left Hand Inner

1шт.

2

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

3шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

3шт.

4

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

5

130657A1

STEP

Cab, Left Hand Outer

1шт.

6

231-5146

FLANGE NUT,3/8"-16

2шт.

7

130650A2

PLATFORM ASSY.

Extension, Left Hand Inner

1шт.

8

231-5146

FLANGE NUT,3/8"-16

2шт.

9

258801A1

TUBE,667, 297 mm Length

Inner Platform

1шт.

10

438-32432

PIN,9.53mm OD x 50.8mm L

3/8" x 2", Coiled

2шт.

11

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

4шт.

12

231-5146

FLANGE NUT,3/8"-16

4шт.

13

280166A1

SHEET

Inner Platform Handrail

1шт.

17

283415A1

GRAB RAIL

Inner to Outer Handrail

1шт.

18

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1/4 x 1-3/4

1шт.

19

231-4144

NUT,1/4"-20, GB

1шт.

20

131141A2

GRAB RAIL

Outer Platform

1шт.

21

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

22

231-5146

FLANGE NUT,3/8"-16

2шт.

23

130654A2

SUPPORT TUBE,1.312" OD, 710 mm Length

Extension, Left Hand

2шт.

24

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

25

231-5146

FLANGE NUT,3/8"-16

2шт.

26

451485A1

BAR

Cab Platform, Inner

1шт.
