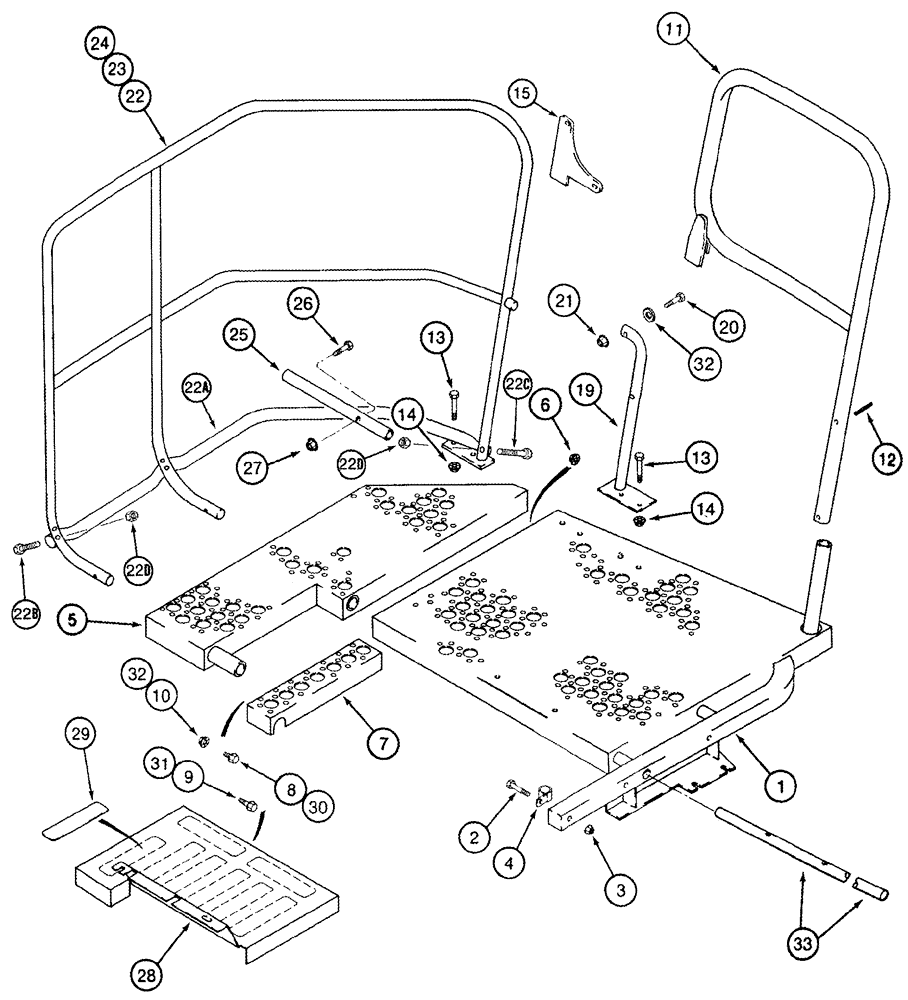

Запчасти Case IH 2555 (09F-13) - PLATFORM AND HANDRAILS - 4 ROW WIDE, 4 ROW NARROW AND 5 ROW NARROW, BSN JJC0249565 (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
130646A5
PLATFORM ASSY.
Cab, Left Hand Inner
1шт.
2
413-848
BOLT,Hex, 1/2" - 13 x 3", Gr 5
3шт.
3
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
3шт.
4
515-25190
CLAMP,3/4", Insul, 1/2" Bolt
1шт.
5
130657A1
STEP
Cab, Left Hand Outer
1шт.
6
231-5146
FLANGE NUT,3/8"-16
2шт.
7
144558A2
STEP
Extension, Rear Inner, 4 Row Wide and 5 Row Narrow
1шт.
8
409-7612
BOLT,3/8"-16 x 1.09" OAL
1шт.
9
409-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
1шт.
10
231-5146
FLANGE NUT,3/8"-16
2шт.
11
258801A1
TUBE,667, 297 mm Length
Inner Platform
1шт.
12
438-32432
PIN,9.53mm OD x 50.8mm L
3/8" x 2", Coiled
2шт.
13
413-652
BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5
4шт.
14
231-5146
FLANGE NUT,3/8"-16
4шт.
15
280166A1
SHEET
Inner Platform Handrail
1шт.
16
413-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
If equipped
2шт.
17
495-11034
WASHER,5/16", SAE
(11/32 x 11/16 x 1/16"), If equipped
2шт.
18
231-4115
NUT,5/16"-18, GB
If Equipped
2шт.
19
283414A1
GRAB RAIL
Inner to Outer Handrail
1шт.
20
413-428
BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5
1/4 x 1-3/4
1шт.
21
231-4144
NUT,1/4"-20, GB
1шт.
22
131141A4
GRAB RAIL
Outer Platform, Toe Guard
1шт.
22a
255750A1
GRAB RAIL
Platform, Toe Guard, If Equipped
1шт.
22b
413-528
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
Used with 255750A1
2шт.
22c
413-544
BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5
Used with 255750A1
1шт.
22d
231-1445
NUT,5/16"-18, GB
Used with 255750A1
3шт.
23
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
2шт.
24
231-5146
FLANGE NUT,3/8"-16
2шт.
25
130654A2
SUPPORT TUBE,1.312" OD, 710 mm Length
Extension, Cab Platform, Left Hand
2шт.
26
413-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
2шт.
27
231-5146
FLANGE NUT,3/8"-16
2шт.
28
193500A1
STEP
Platform Filler, 4 Row Narrow, Inc. 29
1шт.
29
D55216
PAD,2" x 9"
2 x 9 in
8шт.
30
409-7612
BOLT,3/8"-16 x 1.09" OAL
3шт.
31
409-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
1шт.
32
231-5146
FLANGE NUT,3/8"-16
4шт.
33
451485A1
BAR
Cab Platform, Inner
1шт.
Выбрано товаров: 37
