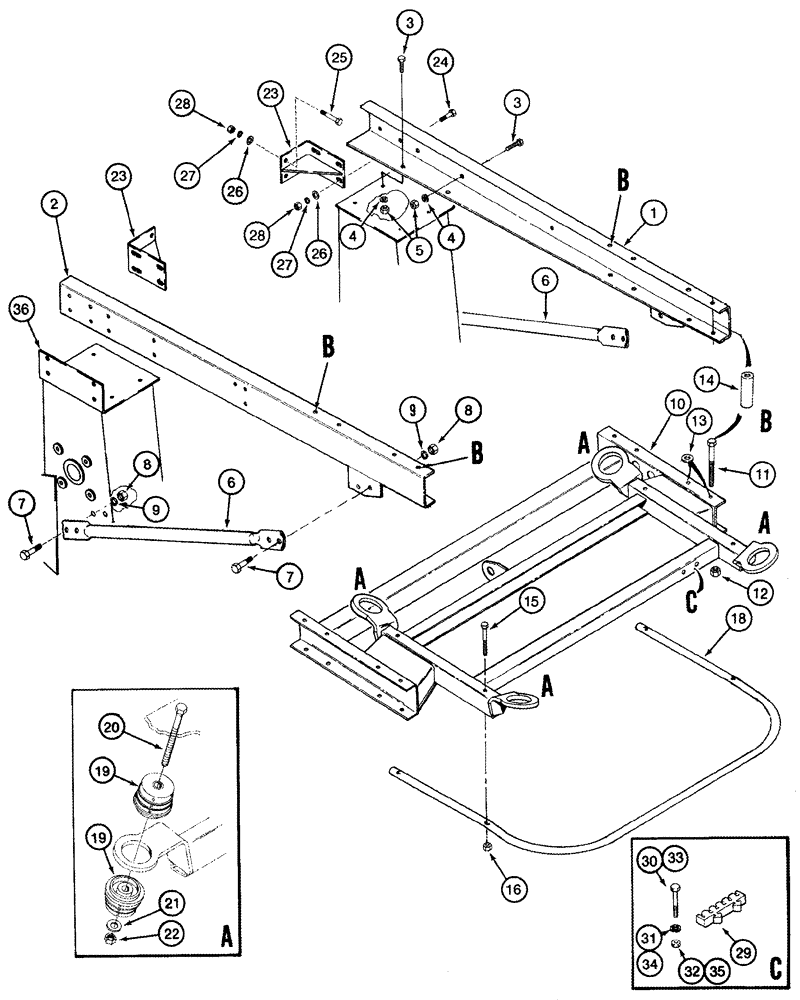

Запчасти Case IH 2555 (09F-12) - SUPPORTS, MAIN FRAME AND CAB AND PLATFORM (12) - CHASSIS

1

139132A3

CHANNEL

Cab Support, Left Hand

1шт.

2

139135A3

CHANNEL

Cab Support, Right Hand

1шт.

3

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

12шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

5

425-108

NUT,1/2" - 13, Gr 5

12шт.

6

127523A1

SUPPORT

Cab Channel to Chassis, Lower

2шт.

7

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

5/8 x 1-3/4

4шт.

7

361-76228

HEX SOC SCREW

5/8 x 1-3/4

4шт.

8

425-1010

NUT,5/8"-11, G5

4шт.

8

329-1010

NUT,5/8"-11, G8

4шт.

9

492-11062

BEARING WASHER,5/8"

8шт.

10

127519A4

SUPPORT

Cab Mount, Front

1шт.

11

426-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 8

8шт.

12

232-4118

NUT,1/2"-13, GC

8шт.

13

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

17/32 x 1 x 1/16

2шт.

14

194103A1

SPACER

Cab Mount Support

4шт.

15

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

4шт.

16

232-4118

NUT,1/2"-13, GC

4шт.

18

192720A1

GUARD

Cab, Front Cover

1шт.

19

123566A1

ISOLATOR

Cab Mount

8шт.

20

426-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 8

5/8 x 6; 8

4шт.

21

CASD35009

WASHER,16.67mm ID x 63.5mm OD

21/32 x 2-1/2 x 11/64

4шт.

22

232-41110

NUT,5/8"-11, GC

4шт.

23

86867C2

BRACKET

Front Mast, At Cab Support Channel

2шт.

24

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

25

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

26

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

12шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

12шт.

28

425-108

NUT,1/2" - 13, Gr 5

12шт.

29

3102155R1

HOLDER

Shear Bolt

1шт.

30

326-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 8

6шт.

31

492-11025

LOCK WASHER,1/4"

6шт.

32

425-104

NUT,1/4"-20, Cl 5

6шт.

33

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

3шт.

34

492-11031

LOCK WASHER,5/16"

3шт.

35

425-105

NUT,5/16"-18, G5

3шт.

36

197292A6

FRAME

Main, Cab and Platform

1шт.
