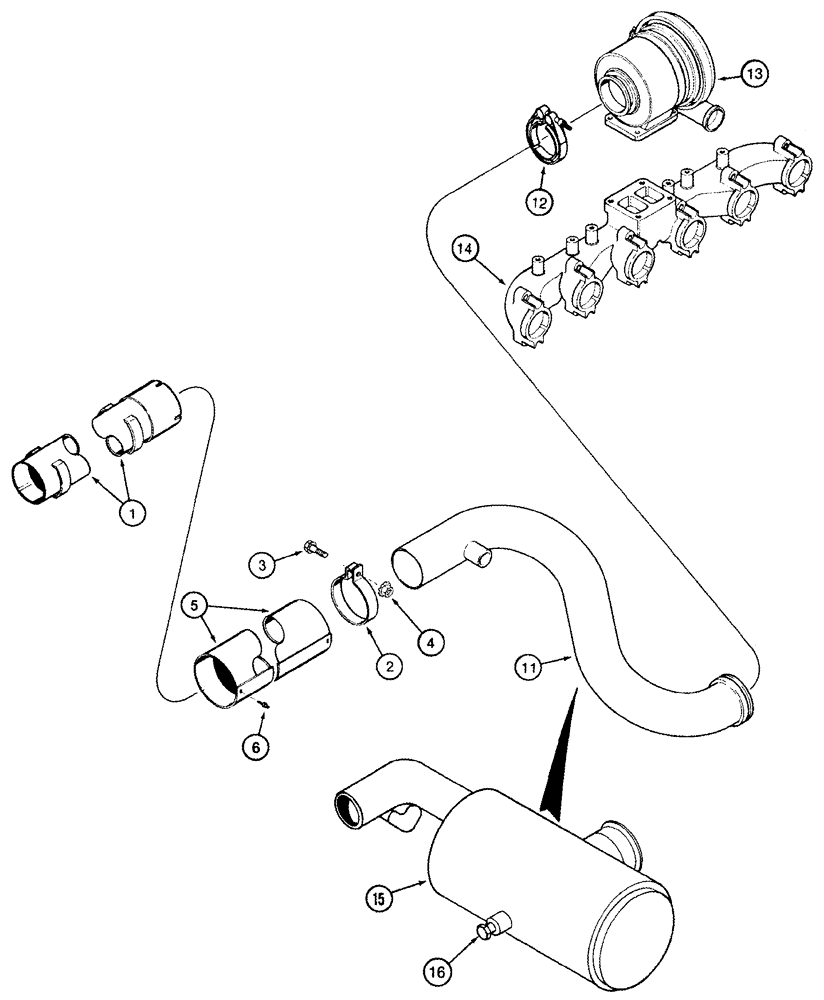

Запчасти Case IH 2555 (02-06) - EXHAUST SYSTEM (01) - ENGINE

1

1988786C3

EXHAUST SYSTEM PIPE

1шт.

2

1321280C2

CLAMP,92mm

1шт.

3

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

4

230-4116

LOCK NUT,3/8"-16, GA

3/8

1шт.

4a

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

If Used, Not Illustrated

1шт.

5

1988788C2

TUBE,116.5 mm OD

1шт.

6

151-509

RIVET,Pop, 3/16" x .325"

3/16 x 5/16

7шт.

11

198608A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST Exhaust

1шт.

12

A170807

CLAMP,102mm ID

1шт.

13

REF

INSTRUCTION

Turbocharger Assy, See Figure 02-12

1шт.

14

J932180

MANIFOLD

Exhaust, See Figure 02-10

1шт.

15

198422A1

MUFFLER

Spark Arrester

1шт.

16

217-409

PLUG,Hex Hd, 1/2" - 14 NPT

1шт.
