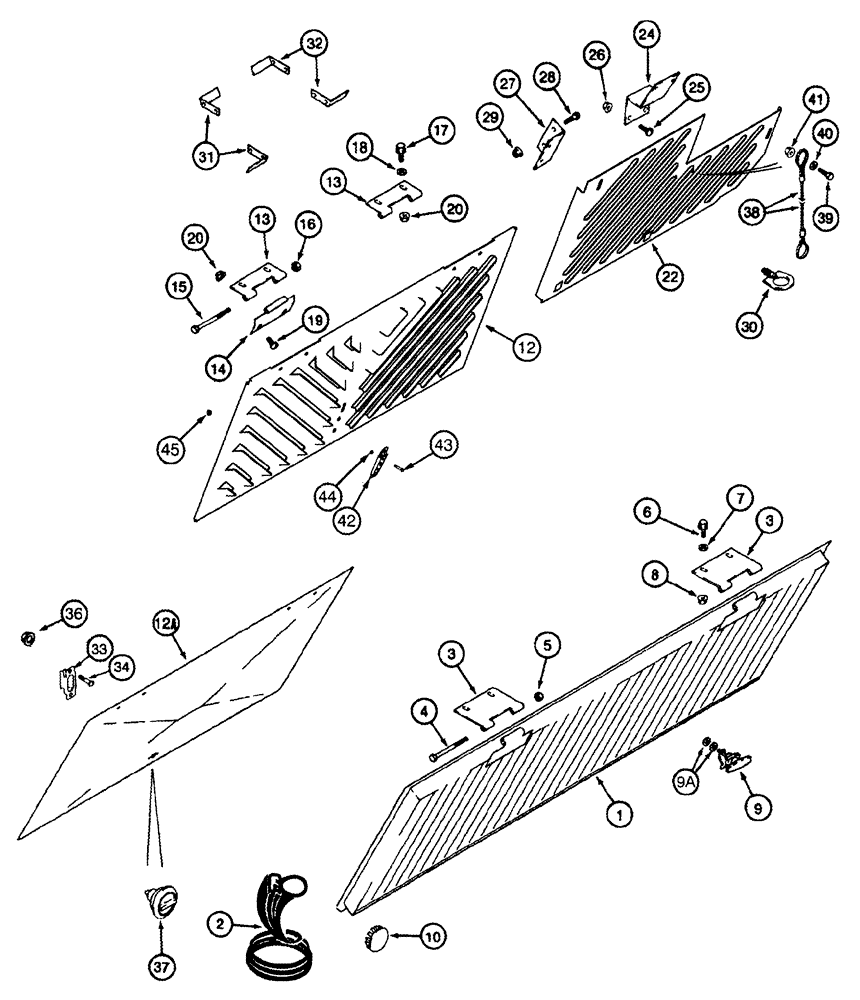

Запчасти Case IH 2555 (09F-04) - SIDE SCREENS AND DOORS (12) - CHASSIS

1

363036A1

FILTER

Rear

1шт.

2

87059C2

SEAL

4268 mm (168 in), Cut From 1263038C1

1шт.

3

1338422C1

HINGE

Screen

4шт.

4

413-596

BOLT,Hex, 5/16" - 18 x 6", Gr 5

5/16 x 6

4шт.

5

231-4115

NUT,5/16"-18, GB

4шт.

6

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

7

495-81121

WASHER,.344" x 1 1/2" x .060"

11/32 x 1-1/2 x 1/16

8шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

9

1990265C2

HANDLE

Door

4шт.

9a

495-31016

WASHER,#6

12шт.

10

353-404

PLUG,Dome, .500" hole, Nylon

8шт.

12

407729A1

DOOR

Engine Compartment, With Slam Latch

2шт.

12a

283534A1

DOOR

Engine Compartment, With Slam Latch, If Equipped

2шт.

13

1990187C2

HINGE

Door, At Frame

4шт.

14

1990197C1

HINGE

Door

4шт.

15

413-596

BOLT,Hex, 5/16" - 18 x 6", Gr 5

5/16 x 6

4шт.

16

231-4115

NUT,5/16"-18, GB

4шт.

17

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

18

495-81121

WASHER,.344" x 1 1/2" x .060"

11/32 x 1-1/2 x 1/16

8шт.

19

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

8шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

86983514

PACKAGE

Inc. 22, 23, Also Inc. 09F-01, Ref 42 - 52

1шт.

22

410707A2

PLATE

Fan Shield, Right Hand

1шт.

23

410705A2

PLATE

Fan Shield, Left Hand, Not Illustrated

1шт.

24

178027A2

SUPPORT

Fan Shield Cover, Lower Front

2шт.

26

231-5146

FLANGE NUT,3/8"-16

4шт.

27

178026A2

SUPPORT

Fan Shield Cover, Upper Rear

2шт.

28

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

29

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

30

188029C1

LATCH

Main, Drive Shield

4шт.

31

177559A1

SUPPORT

Fan Shield, Front Left Hand Side, Rear Right Hand Side

2шт.

32

177560A1

SUPPORT

Fan Shield, Front Right Hand Side, Rear Left Hand Side

2шт.

33

292504A1

CASE

Slam Latch, If Equipped

2шт.

34

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

4шт.

36

231-24409

NUT,#10-32

No. 10, Replaces 492-11010, 225-14210

8шт.

37

292505A1

LATCH

Slam, Tool Operated, If Equipped

2шт.

38

126396A1

CABLE

Anchor, If Equipped

2шт.

39

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1/4 x 3/4

4шт.

40

495-31031

WASHER,0.31" ID x 0.88" OD x 0.07" Thk

5/16 x 7/8 x 1/16

4шт.

41

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

42

340909A1

LOCK

Slam

2шт.

43

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

44

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

45

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

20шт.

25

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

4шт.
