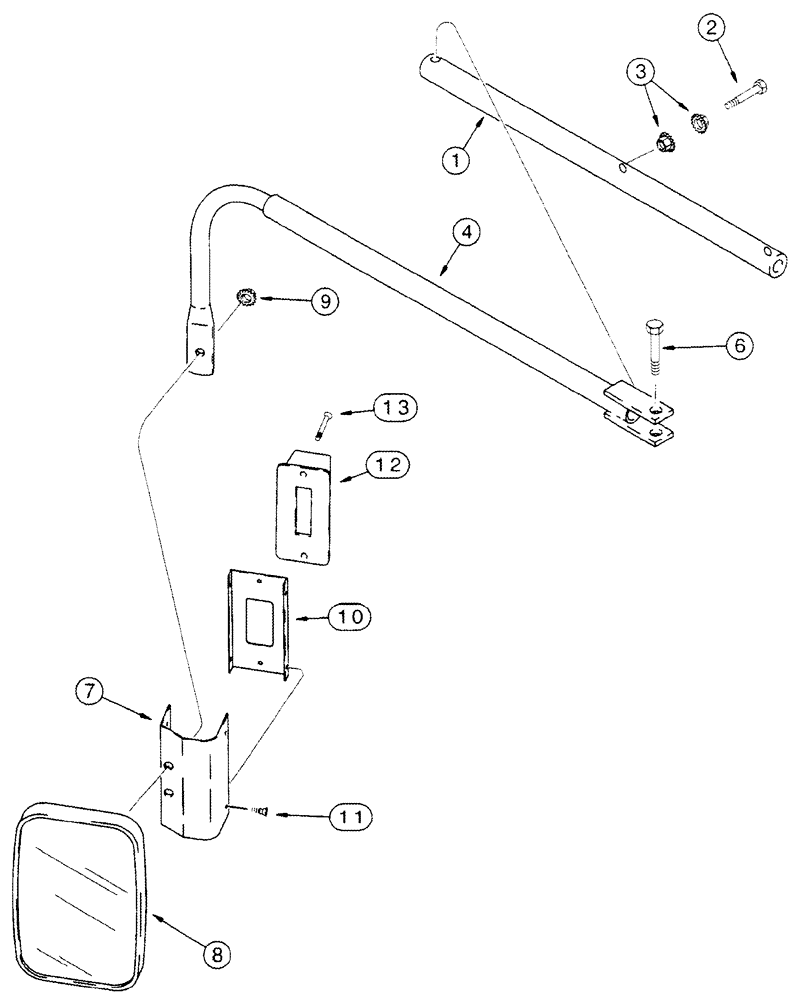

Запчасти Case IH 2555 (09E-23) - CAB - MIRROR, REAR VIEW WITH WARNING LAMP - BSN JJC0249565 (10) - CAB & AIR CONDITIONING

1

178325A2

SUPPORT TUBE,12.5 mm ID, 38.1 mm OD

2шт.

2

614-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8, Full Thd

4шт.

3

825-51412

FLANGE NUT,M12, Flg Ser

4шт.

4

178591A3

SUPPORT

Left Hand

1шт.

5

178342A3

SUPPORT

Right Hand, Not Illustrated

1шт.

6

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

2шт.

7

291911A1

SUPPORT

2шт.

8

1283403C1

MIRROR

2шт.

9

122379A1

FLANGE NUT

3/8

2шт.

10

127960A1

SUPPORT

2шт.

11

1321447C1

SELF-TAP SCREW,Cross Pan Hd, 1/4 -20 x 1/2" OAL

8шт.

12

130882C91

LAMP

Console, See Figure 04-25

2шт.

13

1974614C2

SELF-TAP SCREW,Cross Pan Hd, #10-24 x 2 1/4"

4шт.
