Запчасти Case IH 2555 (09E-22) - AIR CONDITIONING SYSTEM - COMPRESSOR MOUNTING AND DRIVE (10) - CAB & AIR CONDITIONING

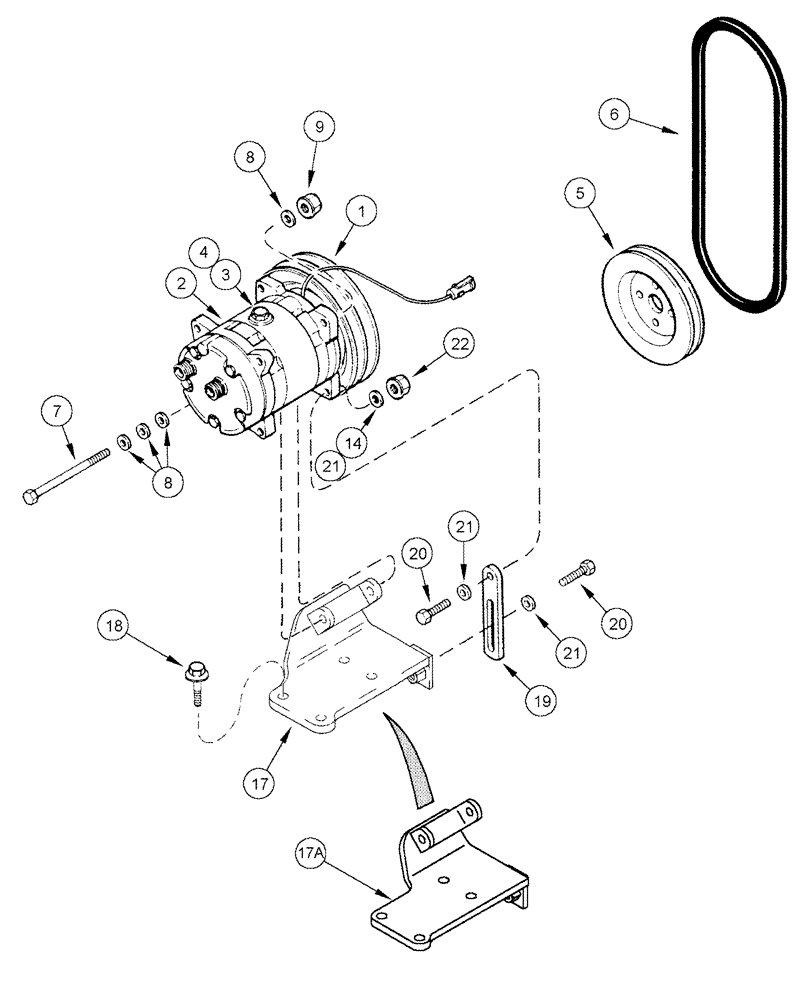

Схема запчастей Case IH 2555 - (09E-22) - AIR CONDITIONING SYSTEM - COMPRESSOR MOUNTING AND DRIVE (10) - CAB & AIR CONDITIONING
17
8
2
4
20
19
6
5
7
14
21
21
3
9
20
1
8
21
17a
22
18

Артикул

Название

Примечание

Количество

1999755C3

COMPRESSOR

Air Conditioning, Inc. 1 - 4

1шт.

86993462R

REMAN-COMPRESSOR

2555 (AFTER S/N JJC0249500); Reman For New P/N 1999755C3

1шт.

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

1

135324A2

CLUTCH

1шт.

2

NSS

NOT SOLD SEPARAT

Compressor

1шт.

3

A49667

PLUG

1шт.

4

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

5

431716A1

PULLEY,147mm OD

Compressor Drive

1шт.

6

131403C1

V-BELT,0.50" W x 38.50" L

Drive

1шт.

7

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

1шт.

9

832-41310

NUT,M10 x 1.5, Cl 10

1шт.

17

237872A3

BRACKET

Compressor Mounting

1шт.

18

905-10025

BOLT,Hex Flg, M10 x 25mm

4шт.

19

84716C1

SUPPORT

Adjusting

1шт.

20

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

21

896-16010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

3шт.

22

832-41310

NUT,M10 x 1.5, Cl 10

1шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

Выбрано товаров: 22
