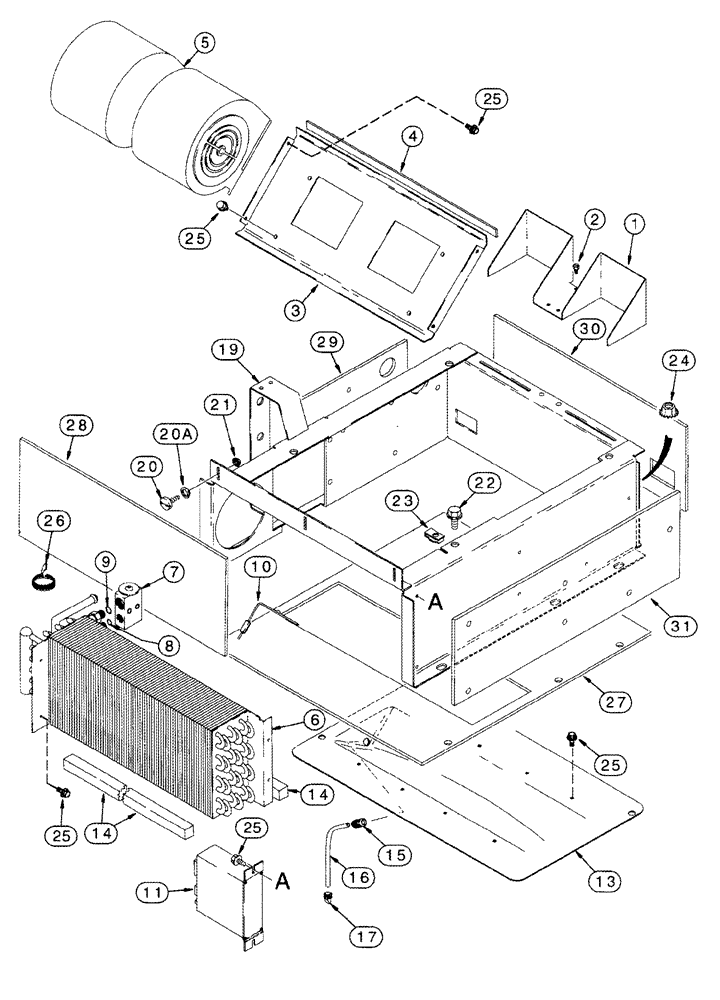

Запчасти Case IH 2555 (09E-18) - HEATER - AIR CONDITIONING - EVAPORATOR HEATER CORE AND BLOWER MOUNTING (10) - CAB & AIR CONDITIONING

1

178910A1

DEFLECTOR

1шт.

2

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

4шт.

3

125066A1

PANEL

1шт.

4

1990257C1

SEALING STRIP

514 mm (20-1/4 in), Cut From 187874C2

1шт.

5

355190A1

BLOWER,12V

Inc. 5A, 5B

1шт.

5

355190A1R

REMAN-BLOWER,12V

Electronics - Other

1шт.

5

355190A1C

CORE-BLOWER,12V

Return Number, BLOWER

1шт.

5a

1343962C1

CLIP,ELECTRICAL

Not Illustrated

8шт.

5b

255057C1

CONNECTOR, ELEC

CONNECTOR Not Illustrated

1шт.

121590A3

EVAPORATOR

Inc. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

Core

1шт.

7

1990756C2

VALVE

, Serial Range: -JJC0249565

1шт.

7

386535A1

VALVE

, Start Serial: JJC0249565

1шт.

8

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

9

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

10

184720A2

SENSOR

Temperature, Evaporator

1шт.

10a

121067A1

FASTENER

1 x 12, Not Illustrated

4шт.

11

239951A2

CASE

1шт.

13

121595A2

PAN

1шт.

14

192269A1

FOAM INSULATION,25mm W x 500mm L x 19mm Thk

500 mm (19-5/8 in)

2шт.

15

1250522C3

FITTING

2шт.

16

122116A1

HEATER HOSE,12.95 mm ID x 1524.00 mm

Cut from Bulk1

2шт.

17

109239C2

CHECK VALVE

2шт.

19

125875A5

SUPPORT

1шт.

20

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

3шт.

20a

492-11010

LOCK WASHER,#10

3шт.

21

231-51409

SERRATED NUT,Flg, USR, #10-24

3шт.

22

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

23

786618C1

NUT

5/16

4шт.

24

825-5148

SERRATED NUT,M8, Flg Ser

6шт.

25

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

6шт.

26

83822C1

TAPE

610 mm (24 in), Cut From 1954475C1

1шт.

27

279438A1

INSULATOR

Center Floor

1шт.

28

279305A1

INSULATOR

Rear Wall

1шт.

29

279232A1

INSULATOR

Left Hand

1шт.

30

279233A1

INSULATOR

Center

1шт.

31

279230A1

INSULATOR

Right Hand

1шт.

12

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

2шт.
