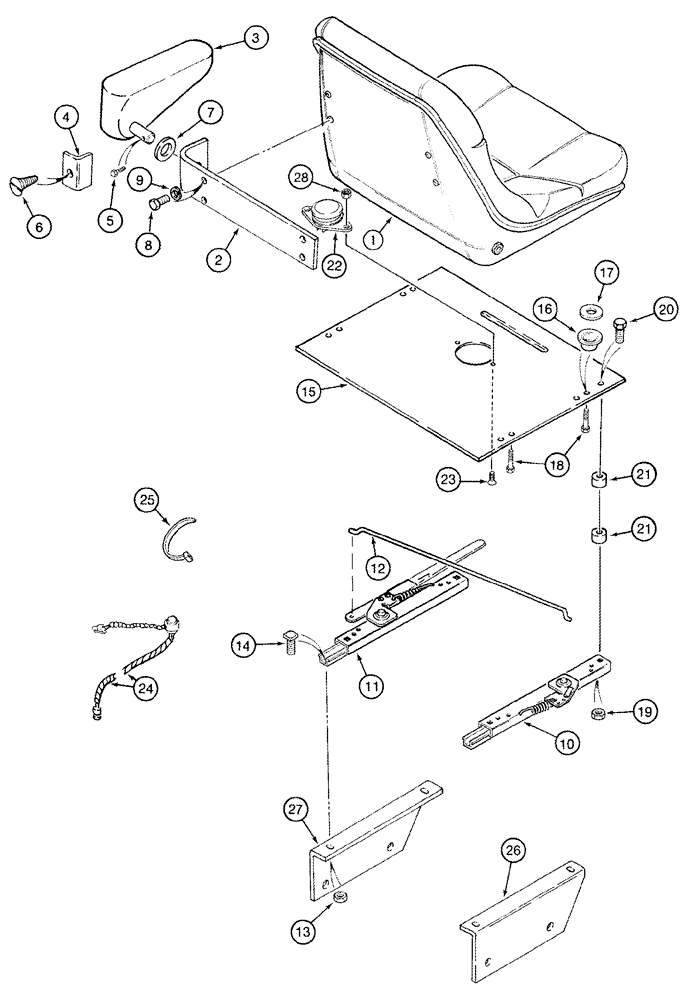

Запчасти Case IH 2555 (09E-14) - SEAT - HEIGHT ADJUSTMENT - CUSHION AND SLIDE (10) - CAB & AIR CONDITIONING

180612A2

SEAT ASSY.

Height Adjustment, Inc. 1 - 28, Also Inc. Parts On Pages 09E-15

1шт.

1

180614A1

SEAT ASSY.

One Piece, Without Armrest

1шт.

1344104C1

SET OF PARTS

Armrest, Left Hand, Complete, Inc. 2 - 9

2шт.

2

1344105C1

SUPPORT

1шт.

A45488

ARMREST

Armrest, Inc. 3 - 7

1шт.

3

NSS

NOT SOLD SEPARAT

Armrest

1шт.

4

NSS

NOT SOLD SEPARAT

Plate

1шт.

5

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

1шт.

6

263-50510

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

1шт.

7

A47352

WASHER

1-1/8 ID

2шт.

8

NSS

NOT SOLD SEPARAT

Bolt

4шт.

9

NSS

NOT SOLD SEPARAT

Washer, Lock

4шт.

180615A1

PACKAGE

Seat Slide, Inc. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

Slide, Locking

1шт.

11

NSS

NOT SOLD SEPARAT

Slide, Locking With Handle

1шт.

12

NSS

NOT SOLD SEPARAT

Rod

1шт.

13

231-4115

NUT,5/16"-18, GB

4шт.

14

117-109

SQUARE BOLT,5/18" - 16 x 3/4", Gr 5

4шт.

15

180616A2

LARGE PLATE

PLATE, LARGE

1шт.

16

700711545

CUP WASHER

3/8

4шт.

17

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

11/32 x 7/8 x 1/16

4шт.

18

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

19

231-4115

NUT,5/16"-18, GB

4шт.

20

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

21

134144A1

SPACER

8шт.

22

242306A2

SWITCH

Operator

1шт.

23

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

2шт.

24

180601A1

WIRE HARNESS

Seat, Operator Present

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

26

NSS

NOT SOLD SEPARAT

Bracket, Right Hand Support

1шт.

27

NSS

NOT SOLD SEPARAT

Bracket, Left Hand Support

1шт.

28

NSS

NOT SOLD SEPARAT

1/4, Nut

2шт.
