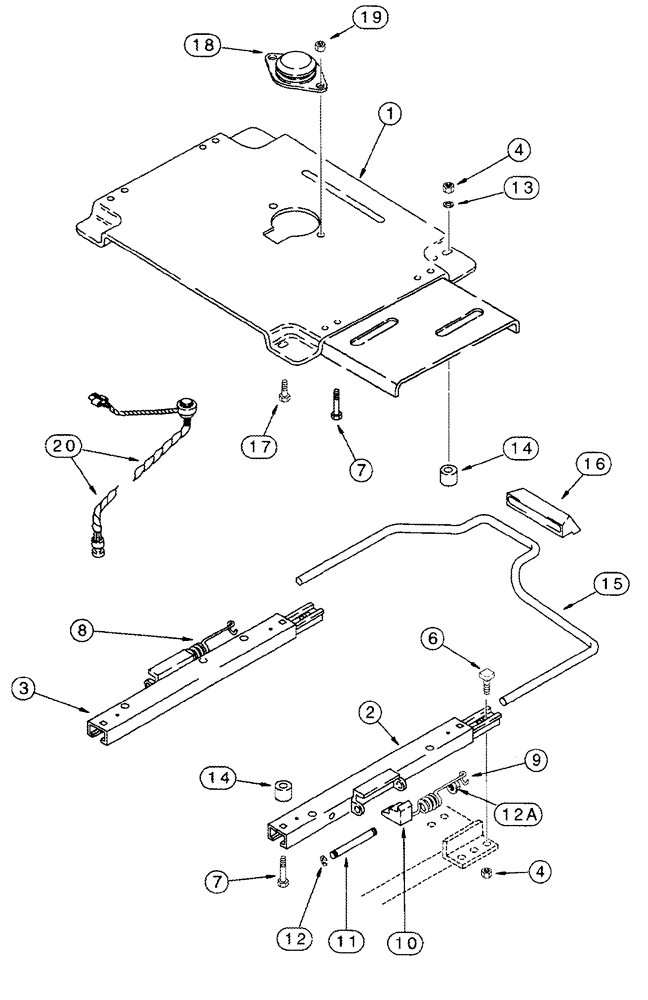

Запчасти Case IH 2555 (09E-12) - SEAT, OPERATOR - AIR SUSPENSION, PLATE AND SLIDES (10) - CAB & AIR CONDITIONING

180577A4

SEAT ASSY.

Inc. 1 - 20, Inc. Figures 09E-11 - 09E-13

1шт.

1

390991A1

PLATE

Replaces 180583A2

1шт.

132875A1

SLIDE

Inc. 2 - 12A

1шт.

2

NSS

NOT SOLD SEPARAT

Slide, Right Hand

1шт.

3

NSS

NOT SOLD SEPARAT

Slide, Left Hand

1шт.

4

230-4215

NUT,5/16"-18, GA

8шт.

5

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 x 1-1/4, Not Used In This Application, Not Illustrated

4шт.

6

117-107

BOLT

5/16 x 1-1/2; 2

4шт.

7

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

8

135513A1

SPRING

Left Hand

1шт.

9

135514A1

SPRING

Right Hand

1шт.

10

NSS

NOT SOLD SEPARAT

Block

2шт.

11

NSS

NOT SOLD SEPARAT

Pin

2шт.

12

103-1131

SNAP RING,#31, Ext

2шт.

12a

131-413

PUSH-ON NUT,Rd Flat Push, 1/4" x 17/32"

2шт.

13

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

14

134144A1

SPACER

4шт.

15

180585A1

LEVER

1шт.

16

180587A1

HANDLE

1шт.

17

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

2шт.

18

242306A2

SWITCH

Seat

1шт.

19

NSS

NOT SOLD SEPARAT

Nut

2шт.

20

180601A1

WIRE HARNESS

Seat, Operator Present

1шт.
