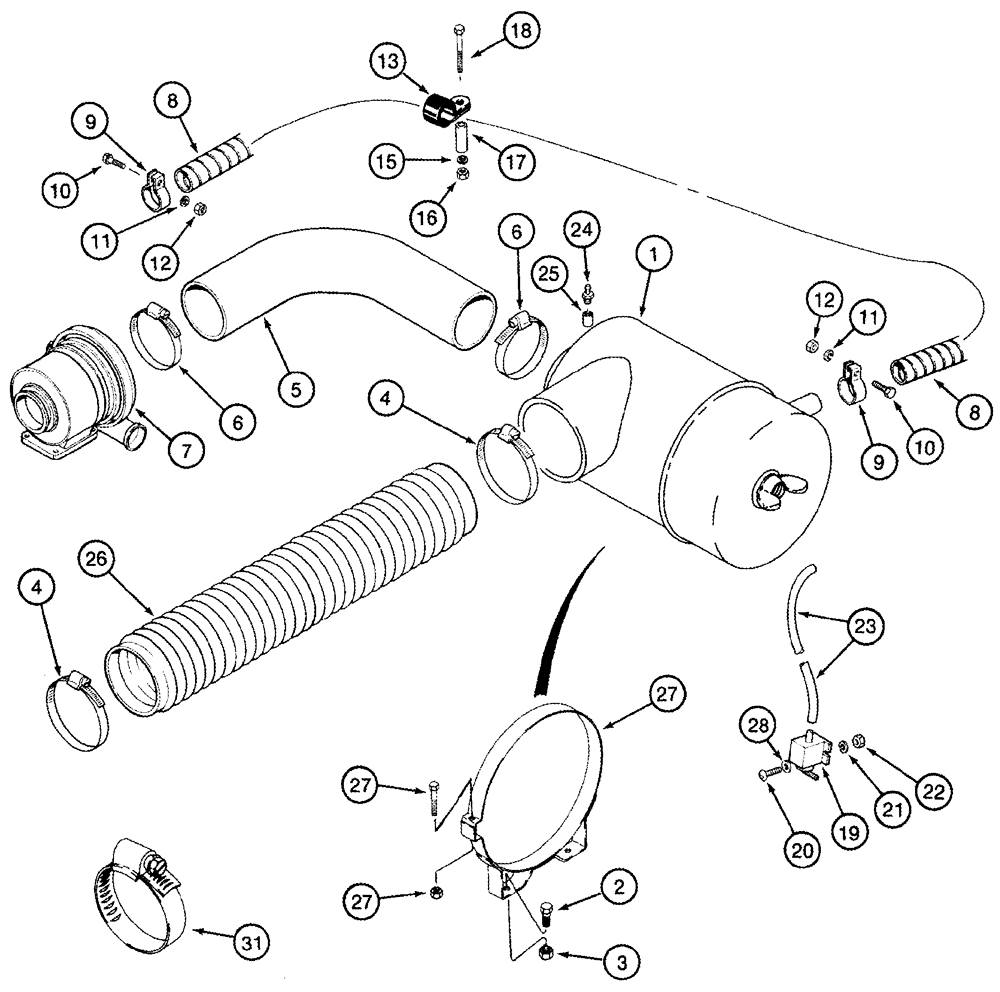

Запчасти Case IH 2555 (02-03) - AIR INDUCTION SYSTEM (01) - ENGINE

1

1547900C2

AIR CLEANER

See Figure 02-04

1шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

214-1496

HOSE CLAMP,#96, 5.56" - 6.5", Type F Worm

2шт.

5

1988891C1

LARGE HOSE

HOSE,LARGE Outlet

1шт.

6

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

1шт.

7

REF

INSTRUCTION

Turbocharger Assy, See Figure 02-12

1шт.

8

1546057C1

TUBE,38.1 mm ID, 1730 mm Length

Aspirator

1шт.

9

1275854C1

CLAMP

Tube

2шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

1шт.

14

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

15

492-11038

LOCK WASHER,3/8"

2шт.

16

425-106

NUT,3/8"-16, Cl 5

2шт.

17

580883R1

SPACER,3/8" Pipe x 3 1/4"

1/2 x 3-1/4

1шт.

18

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8 x 4

1шт.

19

533917C2

GAUGE

Restriction

1шт.

20

440-10820

SCREW,Cross Pan Hd, #8-32 x 1 1/4"

No. 8 x 1-1/4

2шт.

21

492-11008

LOCK WASHER,#8

2шт.

22

225-14108

NUT,#8-32

2шт.

23

84410C1

LARGE HOSE

HOSE,LARGE 640 mm (25-13/64 in), Cut From 990015C1

1шт.

24

533916C1

FITTING

Hose

1шт.

25

217-1100

UNION,1/8" - 27 NPT x 1/8" - 27 NPT

1/8 PT

1шт.

26

1990303C1

INTAKE AIR HOSE,152.00 mm ID x 820.00 mm

820 mm (32-1/4 in), Inlet

1шт.

27

1998899C1

SUPPORT

2шт.

28

495-31022

WASHER,#10

2шт.

31

214-3296

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm, W/ Liner

1шт.

2

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

4шт.
