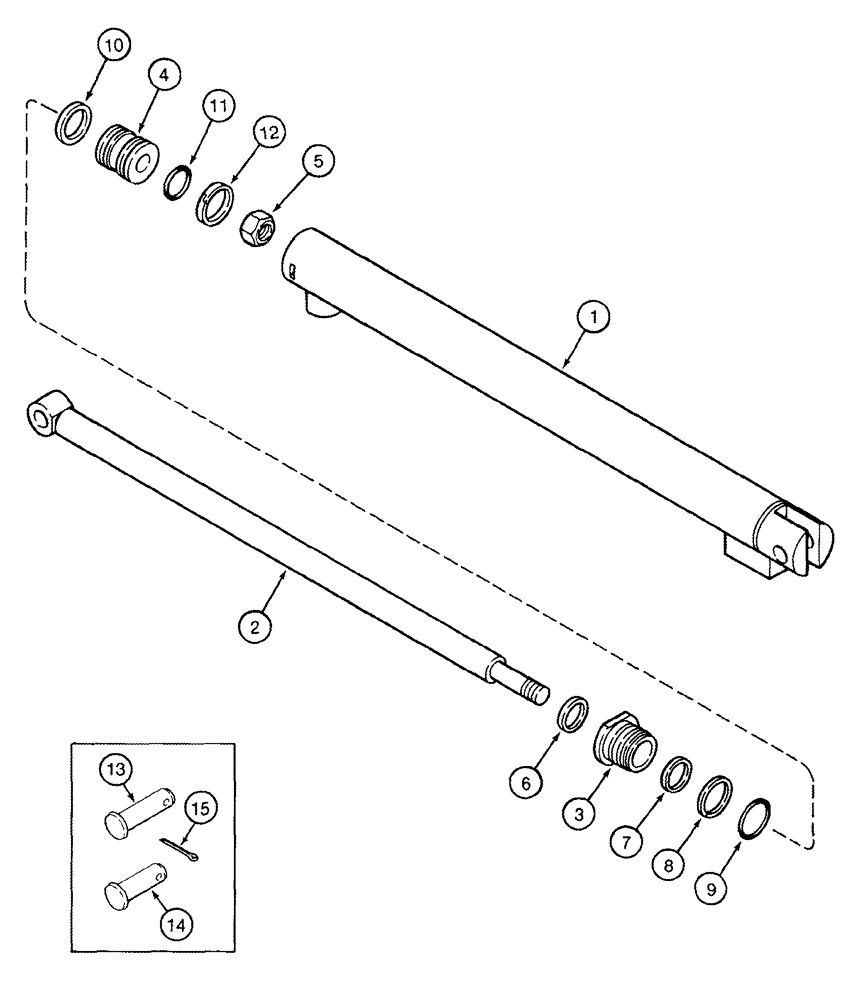

Запчасти Case IH 2555 (08-44) - DRUM SPREAD CYLINDER ASSEMBLY (07) - HYDRAULICS

1542544C1

CYLINDER ASSY.

Drum Spread, 57 ID x 375 mm strk, Inc. 1 - 12

2шт.

1

NSS

NOT SOLD SEPARAT

Tube

1шт.

2

1282222C1

PISTON ROD

1шт.

3

127919C1

GLAND

1шт.

4

1543363C1

PISTON

1шт.

5

231-41310

LOCK NUT,5/8"-11, GB

5/8

1шт.

6

NSS

NOT SOLD SEPARAT

Wiper

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Seal

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Ring

1шт.

11

NSS

NOT SOLD SEPARAT

1-7/8 ID x 3/16, O-Ring

1шт.

12

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

13

439-11664

HEADED PIN,1" x 4"

1 x 4; 2

2шт.

14

439-11656

HEADED PIN,25.4mm OD x 88.9mm L

1 x 3-1/2; 2

2шт.

15

432-1620

COTTER PIN,1/4" x 1 1/4"

4шт.

1543362C1

SEAL KIT

Inc. 6 - 12

1шт.
