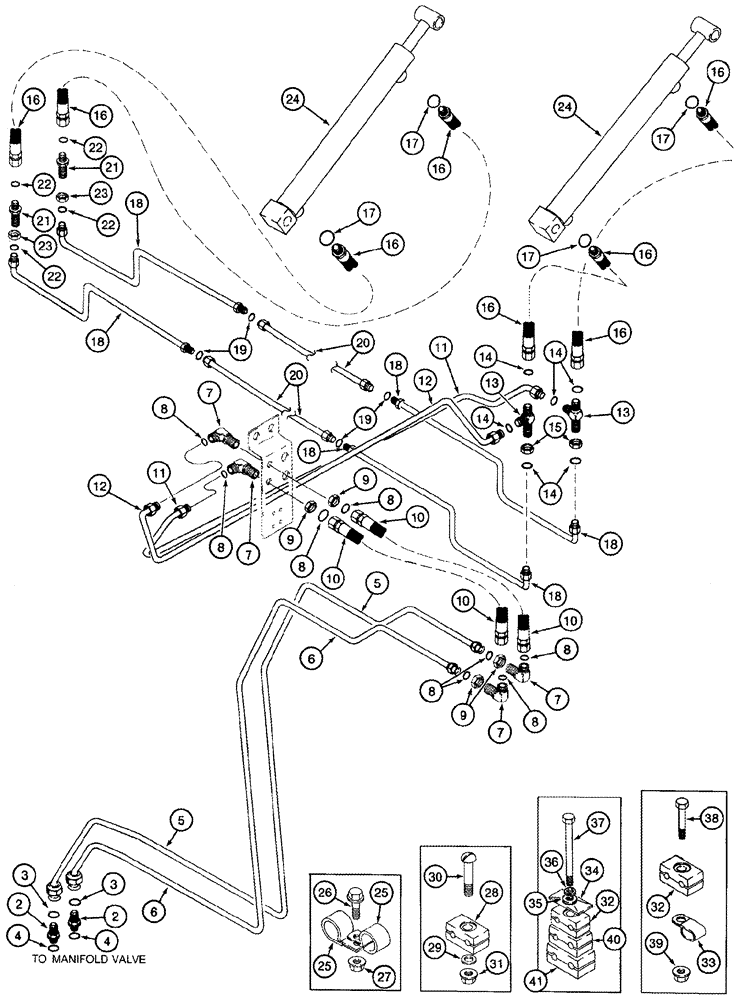

Запчасти Case IH 2555 (08-40) - BASKET DOOR CYLINDER SYSTEM - BSN JFG010001 (07) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Manifold, See Figure(s) 08-20 - 08-23

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 3, 4

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

1988936C1

TUBE

Door Open, Valve

1шт.

6

1988937C1

TUBE,0.5" OD

Door Close, Valve

1шт.

7

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1-1/4 fc x 1/16-12 Or, Inc. 8

4шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

9

201-903

TUBE NUT,Blkhd, 13/16"-16

4шт.

10

1984271C1

HOSE,12.7mm ID x 2500mm L

2500 mm (98-7/16 in)

2шт.

11

1983193C2

HYD TUBE

Door Open

1шт.

12

1983194C2

HYD TUBE

Door Close

1шт.

13

201-423

TEE,9/16"-18, Blkhd, Run, ORFS

Inc. 14

2шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

15

201-903

TUBE NUT,Blkhd, 13/16"-16

2шт.

16

1984270C1

HOSE,9.53mm ID x 1175mm L

29845 mm (1175 in)

4шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

18

1983195C2

HYD TUBE

Door Bottom Sides

4шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

20

1983196C2

HYD TUBE,0.375" OD

Door Bottom

2шт.

21

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

Includes 22

2шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

23

201-903

TUBE NUT,Blkhd, 13/16"-16

2шт.

24

1282155C92

CYLINDER ASSY.,Double Acting, 25.4mm Rod, 373.5mm Stroke

Basket Door, 51 ID x 374 mm strk, See Figure 08-41

2шт.

25

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

4шт.

26

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

27

231-5146

FLANGE NUT,3/8"-16

2шт.

28

1546024C1

CLAMP

2 piece

4шт.

29

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

30

477-73124

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/2"

4шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

32

1546025C1

CLAMP

2 piece

2шт.

33

1301387C2

CLIP

2 in ID

1шт.

34

1347127C1

PLATE

1шт.

35

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

1шт.

36

492-11031

LOCK WASHER,5/16"

1шт.

37

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

1шт.

38

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

39

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

40

1546026C1

CLAMP

1шт.

41

1546027C1

CLAMP

1шт.
