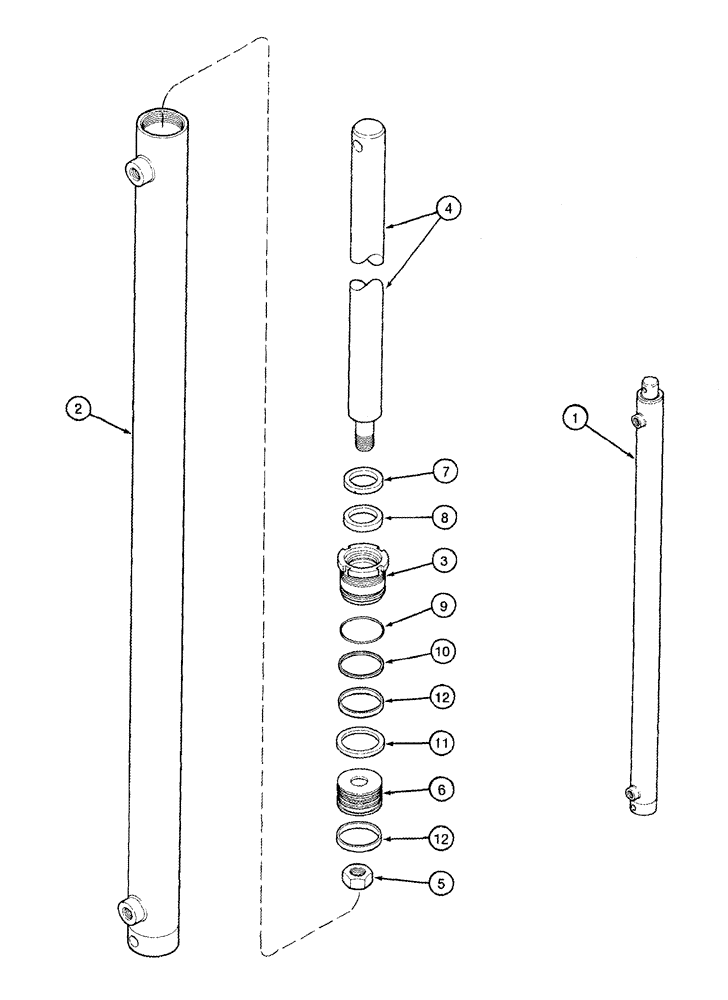

Запчасти Case IH 2555 (08-33) - BASKET LIFT MASTER CYLINDER ASSEMBLY (07) - HYDRAULICS

1

1282276C92

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 1828.8mm Stroke

90 ID x 1829 mm strk, Basket Lift, Inc. 2 -12, Alternate with 85183C1, See Figure 08-34

1шт.

2

NSS

NOT SOLD SEPARAT

Tube

1шт.

3

1286338C1

CYLINDER END CAP

1шт.

4

1286336C1

PISTON ROD

1шт.

5

232-46320

LOCK NUT,1 1/4"-12, GC

1шт.

6

1286337C1

JACK PISTON

Cylinder

1шт.

1282390C1

SEAL KIT

Seal Replacement, Inc. 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

Wiper

1шт.

8

NSS

NOT SOLD SEPARAT

Seal

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

10

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

11

NSS

NOT SOLD SEPARAT

Seal

1шт.

12

NSS

NOT SOLD SEPARAT

Ring

2шт.
