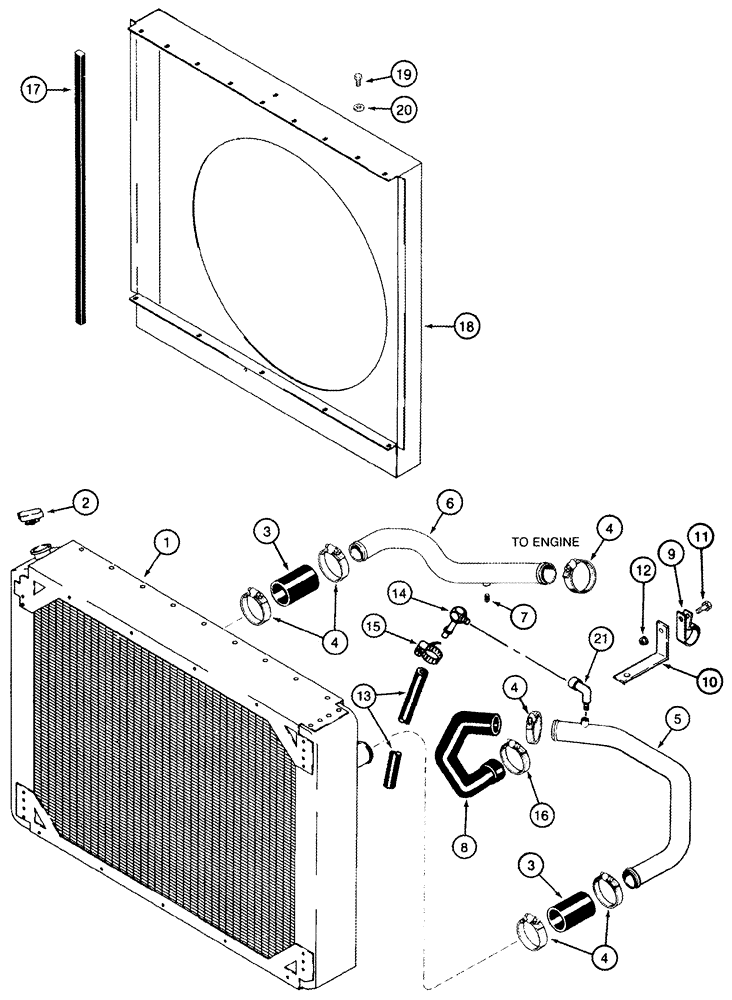

Запчасти Case IH 2555 (02-01) - RADIATOR - FAN SHROUD (01) - ENGINE

1

194560A2

RADIATOR

1шт.

1a

86982771

VALVE

Drain Cock, 1/4 Taper Pipe Thd, Not Illustrated

1шт.

2

A170241

RADIATOR CAP

15 psi

1шт.

3

1329393C1

RADIATOR HOSE,50.80 mm ID x 101.60, SAE 20R4 CLASS D-1 OR SAE 20R1 CLASS B

2шт.

4

214-1532

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm, W/ Liner

6шт.

5

1338670C2

TUBE,605, 50 mm Length

Outlet, Upper

1шт.

6

1983183C1

TUBE

Inlet, Lower

1шт.

7

217-86

PLUG,Hex Hd, 1/4"-18, Brass

PT

2шт.

8

223707A1

RADIATOR HOSE,50.80 mm ID x 165.80 mm, SAE 20R4, CLASS D-1

Outlet, Upper

1шт.

9

515-26508

CLAMP,2", 1/4" Bolt

2 in ID

1шт.

10

189892A3

SUPPORT TUBE,38.1 mm OD, 145, 120 mm Length

1шт.

11

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

1/4 x 3/4

1шт.

12

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

13

1983181C1

HOSE,9.5mm ID x 360mm L, SAE 20R3

1шт.

14

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

15

J923527

CLAMP

17/32 x 19/64

2шт.

16

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

1шт.

17

233394A1

GASKET

864 mm (34 in), Cut From 87084C1

2шт.

18

252056A1

SHROUD

1шт.

19

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

5шт.

20

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

5шт.

21

217-1085

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

1шт.
