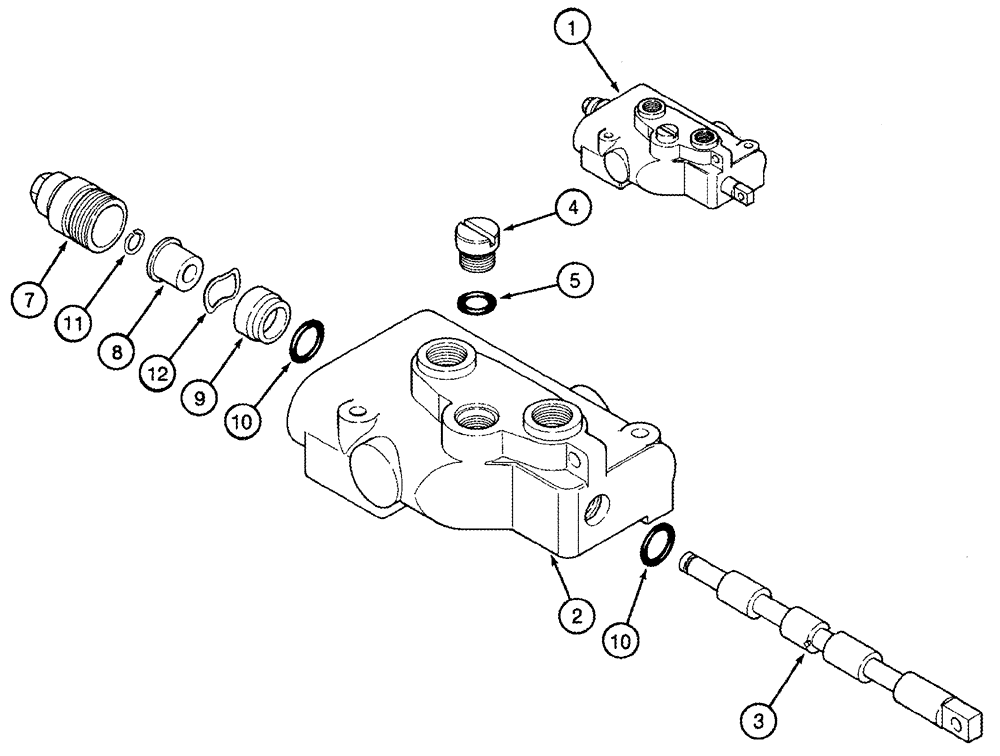

Запчасти Case IH 2555 (08-25) - DRUM HEIGHT CONTROL VALVE (07) - HYDRAULICS

1

120813A2

CONTROL VALVE

Inc. 2 - 12, Drum Height

2шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

NSS

NOT SOLD SEPARAT

Spool

1шт.

4

H229203

PLUG

1/2 NF, Inc. 5

1шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

301221A1

REPAIR KIT

Spool Retainer, Inc. 7 - 11

1шт.

7

NSS

NOT SOLD SEPARAT

Cap

1шт.

8

NSS

NOT SOLD SEPARAT

Spacer

1шт.

9

NSS

NOT SOLD SEPARAT

Bushing

1шт.

10

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

2шт.

11

NSS

NOT SOLD SEPARAT

Ring

1шт.

12

NSS

NOT SOLD SEPARAT

Washer

1шт.
