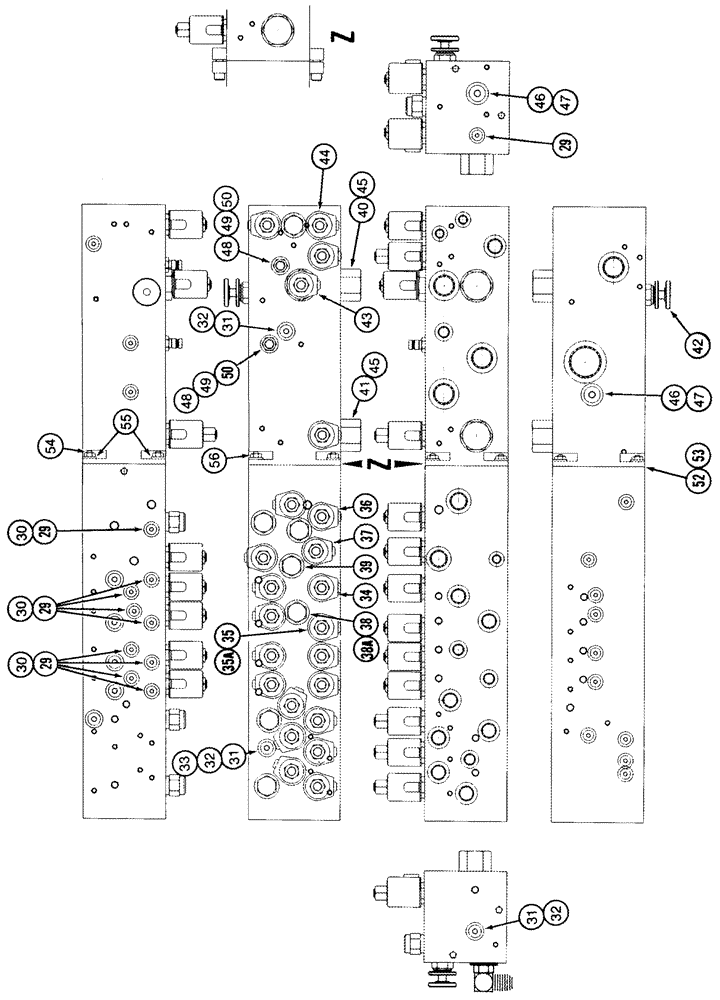

Запчасти Case IH 2555 (08-21) - HYDRAULIC MANIFOLD VALVE - WITH 2.0 GPM DRUM LUBE FLOW - UNITS WITH ROCKSHAFT KICKBACK (07) - HYDRAULICS

292122A2

MANIFOLD VALVE

Inc. 1 - 56, Serial Range: -JJC0249826

1шт.

87445252

MANIFOLD VALVE

Inc. 1 - 35, 36 - 38A, 39 - 56; To Service Prior Serial Numbers, Also Furnish One Each of 134169A1 and 226517A1, Start Serial: JFG010001

1шт.

29

278548

PLUG,Hex, 7/16"-20 ORB

Incl 30

10шт.

30

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

31

9625178

PLUG,9/16" - 18 ORB

Incl. 32

3шт.

32

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

33

107419A1

PLUG

1шт.

34

87252C1

SOLENOID VALVE

2-Way, Basket Door Raise Tank

1шт.

35

87252C1

SOLENOID VALVE

2-Way, Basket Door Lower Tank

1шт.

35a

134169A1

ORIFICE

, Serial Range: -JJC0249826

1шт.

36

87252C1

SOLENOID VALVE

2-Way, Compactor Raise Tank

1шт.

37

87252C1

SOLENOID VALVE

2-Way, Inc. 37A, Compactor Lower Tank

1шт.

37a

149942C1

SEAL KIT

Seal Replacement, Not Illustrated

1шт.

38

149938C1

CHECK VALVE,7/8" - 14

Inc. 38A, Basket Door

1шт.

38a

149942C1

SEAL KIT

Seal Replacement

1шт.

38b

226517A1

PORT

, Serial Range: -JJC0249826

1шт.

39

149938C1

CHECK VALVE,7/8" - 14

Inc. 39A

1шт.

39a

149942C1

SEAL KIT

Seal Replacement, Not Illustrated

1шт.

40

1340838C1

PILOT VALVE

3-Way, Directional Control, Basket Lift

1шт.

41a

1341812C1

O-RING KIT

Seal Replacement, Not Illustrated

1шт.

42

107420A1

VALVE PRESSURE RELIE

1шт.

43

1288953C2

SOLENOID VALVE

2-Way, Inc. 43A, Basket Lower

1шт.

43a

1288954C1

SEAL KIT

Seal Replacement, Not Illustrated

1шт.

44

187849C1

SOLENOID VALVE

4-Way, Inc. 44A, Cartridge Only

1шт.

44a

187850C1

SEAL KIT

Seal Replacement, Not Illustrated

1шт.

45

107421A1

PLATE

1шт.

46

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 47

1шт.

47

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

48

1541849C1

COUPLING

Inc. 49, 50

1шт.

49

H434163

DUST CAP

1шт.

50

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

52

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

2шт.

53

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

1шт.

54

NSS

NOT SOLD SEPARAT

Stud

4шт.

55

95-11041

WASHER,3/8"

(13/32 x 13/16 x 1/16)

4шт.

56

129-139

NUT,3/8"-16, G8

4шт.

1340843C1

SOLENOID,12V

12V, Inc. 1 - 9, 16 - 21, 34 - 37, 43, 44

1шт.
