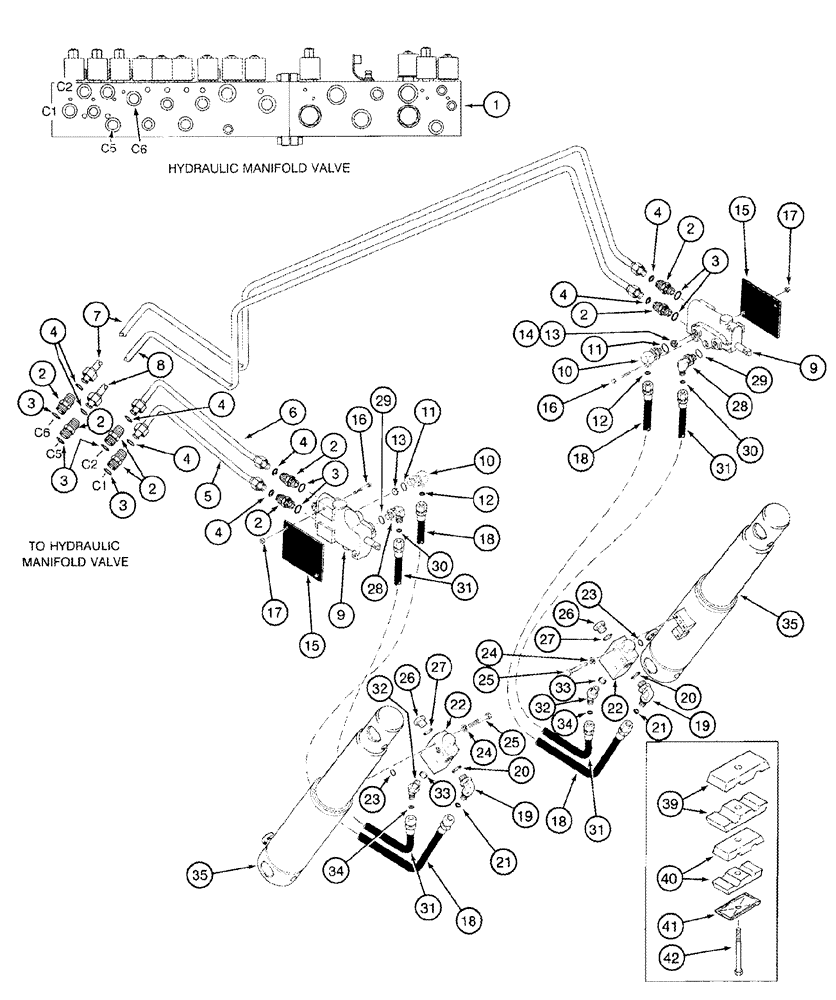

Запчасти Case IH 2555 (08-14) - DRUM CONTROL VALVES AND LIFT CYLINDER SYSTEM (07) - HYDRAULICS

1

REF

INSTRUCTION

Valve, Manifold, See Figure(s) 08-20 - 08-23

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 3, 4

8шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

1988929C1

TUBE

Right Hand Drum Lift, Manual Supply

1шт.

6

1988928C1

TUBE

Right Hand Drum Lift, Automatic Supply

1шт.

7

1988931C1

TUBE,0.5" OD

Left Hand Drum Lift, Manual Supply

1шт.

8

1988930C1

TUBE

Left Hand Drum Lift, Automatic Supply

1шт.

9

120813A2

CONTROL VALVE

Drum Height, See Figure 08-25

2шт.

10

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 11, 12

2шт.

11

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

13

1288998C3

PLATE

5 Row Wide or Narrow

1шт.

14

1546331C1

PORT

5 Row

1шт.

14

1546331C1

PORT

4 Row

2шт.

15

1988976C1

PLATE

Valve Isolation

2шт.

16

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

17

231-1444

NUT,1/4"-20, GB

If Used

4шт.

18

1984279C1

HOSE

850 mm (33-1/2 in), Pressure, Drum Lift

2шт.

19

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. 20, 21

2шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

1346043C1

VALVE, CHECK

Pilot Operated, See Figure 08-19

2шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

24

492-11031

LOCK WASHER,5/16"

6шт.

25

326-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

6шт.

26

214389

PLUG,3/4" - 16 ORB

Includes Ref. 27

2шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

28

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Inc. 29, 30

2шт.

29

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

31

1984280C1

HOSE

775 mm (30-1/2 in), Drum Lift, Pilot

2шт.

32

201-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

3/4 x 13/16, Inc. 33, 34

2шт.

33

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

35

REF

INSTRUCTION

Cylinder Assy, 98 ID x 272 mm strk, See Figure(s) 08-26, 08-27

2шт.

39

1546025C1

CLAMP

2 piece

2шт.

40

1546024C1

CLAMP

2 piece

1шт.

41

1347127C1

PLATE

1шт.

42

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

34

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
