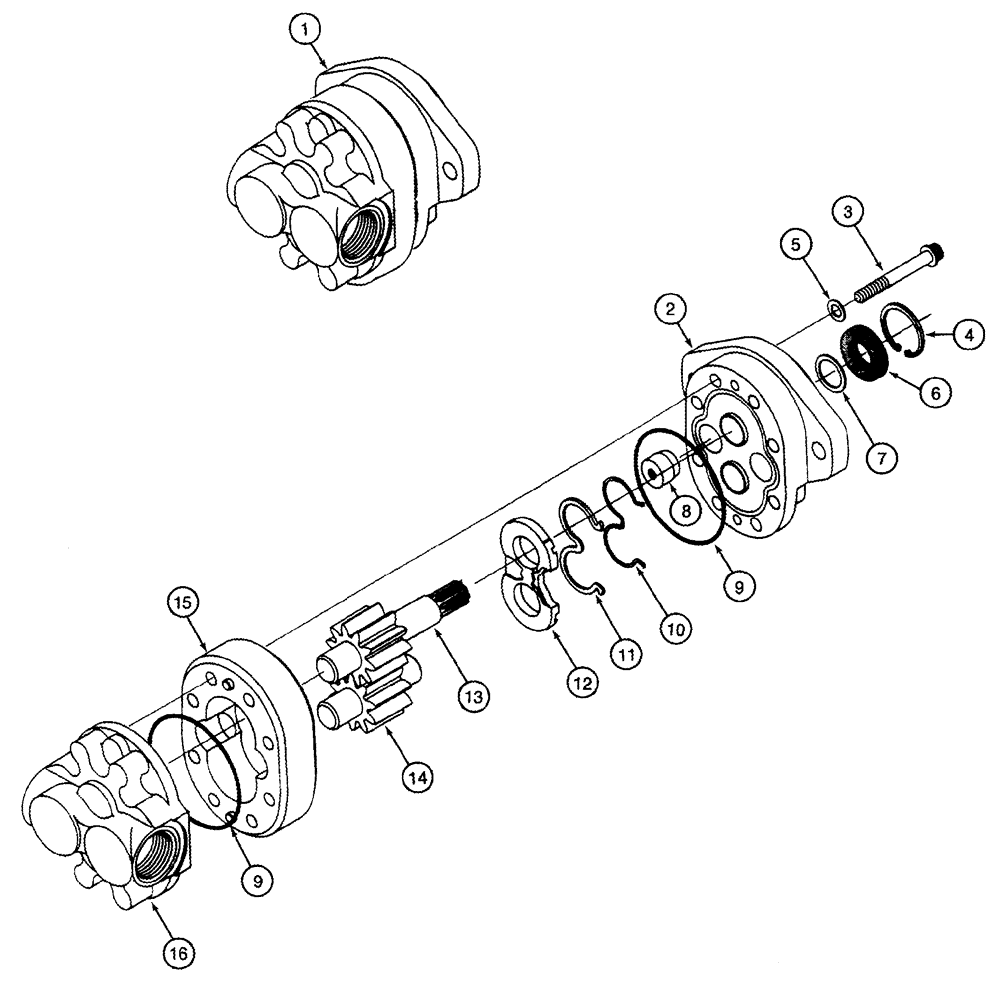

Запчасти Case IH 2555 (08-10) - HYDRAULIC GEAR PUMP ASSEMBLY (07) - HYDRAULICS

1

247337A1

PUMP, HYDRAULIC,10.8 CC

Gear, Inc. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Cover

1шт.

3

NSS

NOT SOLD SEPARAT

Screw

8шт.

4

100-21137

SNAP RING,1.375", Int, #137

1шт.

233429A1

SEAL KIT

Inc. 5 - 12

1шт.

5

NSS

NOT SOLD SEPARAT

Washer

8шт.

6

NSS

NOT SOLD SEPARAT

Seal

1шт.

7

NSS

NOT SOLD SEPARAT

Washer

1шт.

8

NSS

NOT SOLD SEPARAT

Plug

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

10

NSS

NOT SOLD SEPARAT

Gasket, Housing, Back-up

1шт.

11

NSS

NOT SOLD SEPARAT

Seal

1шт.

12

NSS

NOT SOLD SEPARAT

Plate

1шт.

13

NSS

NOT SOLD SEPARAT

Gear, Drive, With Shaft

1шт.

14

NSS

NOT SOLD SEPARAT

Gear, Idler

1шт.

15

NSS

NOT SOLD SEPARAT

Housing, Center, Gear Shaft

1шт.

16

NSS

NOT SOLD SEPARAT

Housing, Port End

1шт.
