Запчасти Case IH 2555 (04-26) - LAMPS AND MOUNTING (06) - ELECTRICAL SYSTEMS

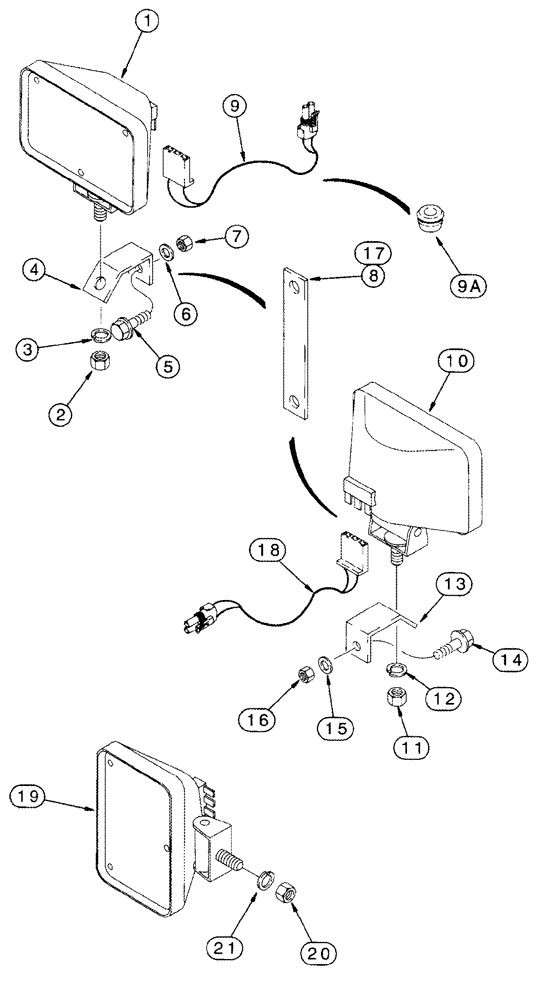

Схема запчастей Case IH 2555 - (04-26) - LAMPS AND MOUNTING (06) - ELECTRICAL SYSTEMS
5
3
4
2
8
15
14
20
1
9a
18
12
11
19
9
10
17
6
13
16
7
21

Артикул

Название

Примечание

Количество

1

284718A1

LAMP,Halogen, 12V, 35W, Clear

35W, Flood, Rear, Right Hand Aftercut, Left Hand Aftercut

3шт.

2

425-108

NUT,1/2" - 13, Gr 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

4

284547A1

BRACKET

Rear Lamp

1шт.

5

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

6

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

1шт.

7

231-5146

FLANGE NUT,3/8"-16

1шт.

8

284564A2

PLATE

Aftercut Lamp

2шт.

9

284730A1

HARNESS

Jumper, 2 Pin to 3 Pin

3шт.

9a

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

3/8 ID, Rear Lamp

1шт.

10

284719A1

LAMP,Halogen, 12V, 50W, Clear

50W, Wide Flood, Center Drum, Center Chute, Left Front Basket Door, Left Mirror

4шт.

11

425-108

NUT,1/2" - 13, Gr 5

4шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

13

284547A1

BRACKET

Center Drum Lamp

1шт.

14

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

15

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

1шт.

16

231-5146

FLANGE NUT,3/8"-16

1шт.

17

284564A2

PLATE

Basket Door Lamp

1шт.

18

284730A1

HARNESS

Jumper, 2 Pin to 3 Pin

3шт.

19

284720A1

LAMP,Halogen, 12V, 50W, Clear

50 W, Trap Flood, Right Mirror Lamp

1шт.

20

425-108

NUT,1/2" - 13, Gr 5

1шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

Выбрано товаров: 22
