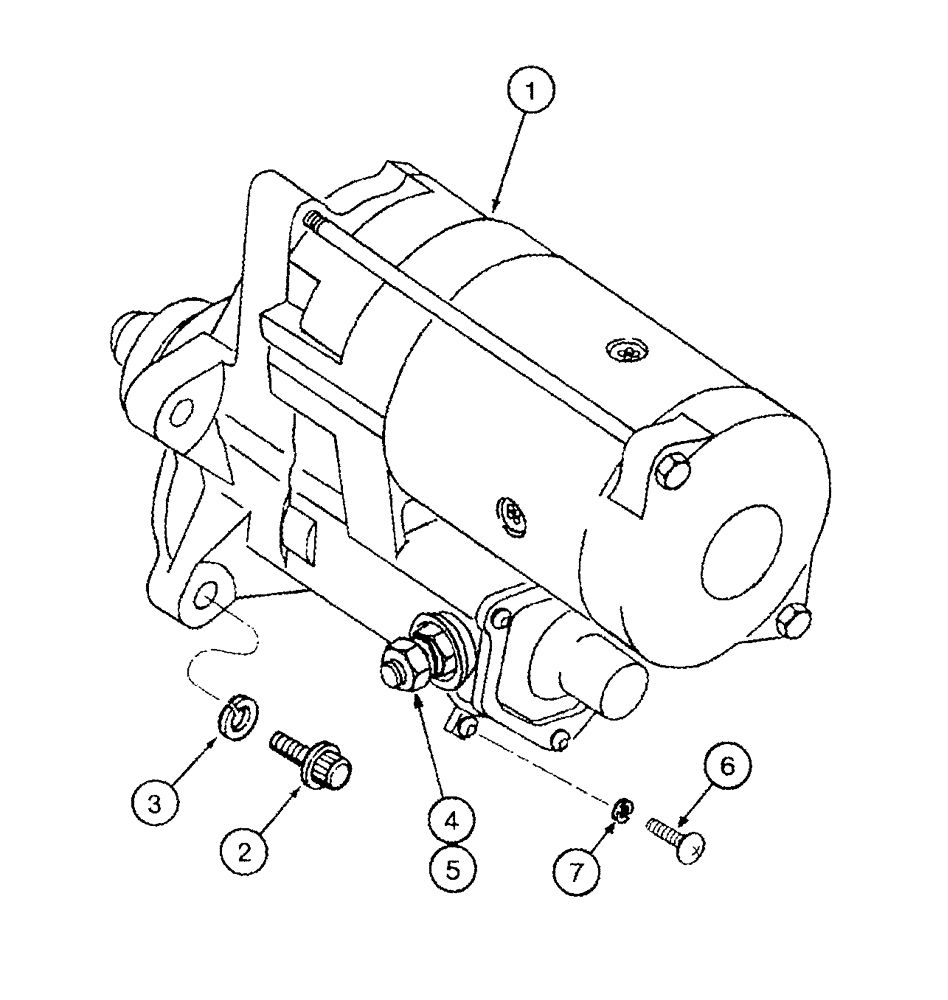

Запчасти Case IH 2555 (04-19) - STARTER MOUNTING (06) - ELECTRICAL SYSTEMS

1

193432A2

MOTOR,12V, 4.8kW

Starter, See Figure 04-20

1шт.

1

193432A2GV

STARTER MOTOR,12V, 4.8kW

Value

1шт.

2

868-12040

12 PT SCREW,M12 x 40mm, Cl 12.9

M12 x 40

3шт.

3

892-11012

LOCK WASHER,M12

3шт.

4

829-1412

NUT,M12, Cl 10.9

1шт.

5

892-11012

LOCK WASHER,M12

1шт.

6

258820A1

SCREW

M5 x 8

1шт.

7

892-11005

LOCK WASHER,M5

1шт.
