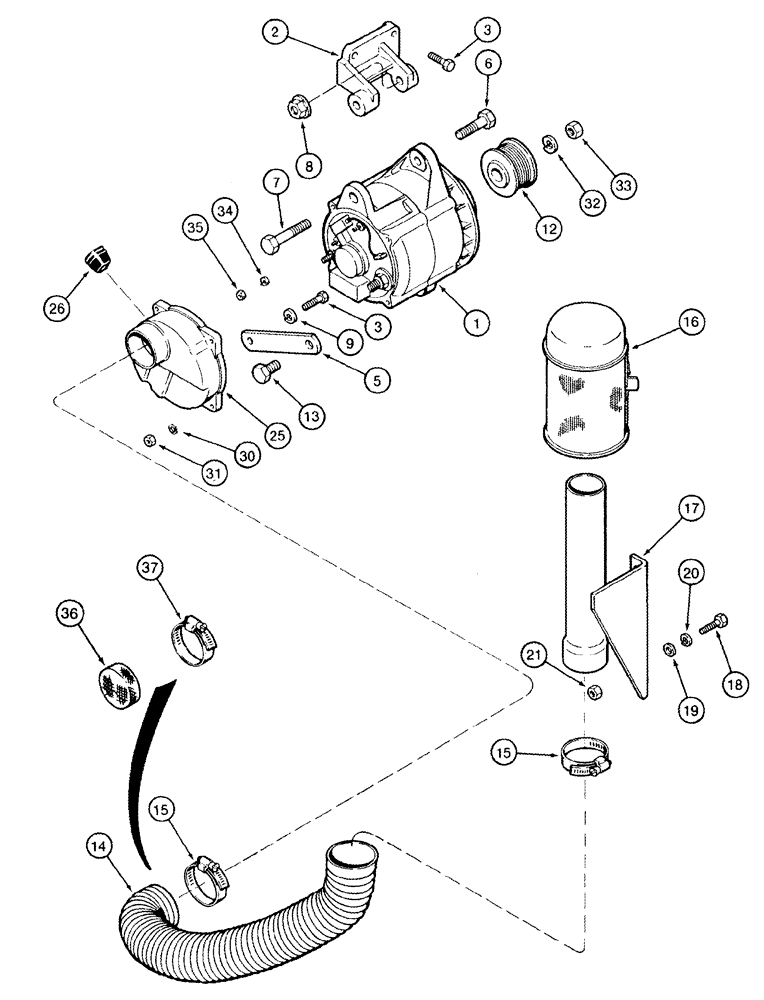

Запчасти Case IH 2555 (04-18) - ALTERNATOR MOUNTING AND FILTER (06) - ELECTRICAL SYSTEMS

1

125849A1

ALTERNATOR,12V, 135A, W/ Pulley

135 amp, See Figure 04-21

1шт.

1

125849A1GV

ALTERNATOR

Value, 135 amp

1шт.

2

J918544

SUPPORT

Alternator

1шт.

3

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

5

J911485

SUPPORT

Alternator

1шт.

6

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

1шт.

7

854-12065

BOLT,Hvy Hex, M12 x 65mm, Cl 10.9

M12 x 65; 10.9

1шт.

8

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

2шт.

9

892-11008

LOCK WASHER,8mm ID

1шт.

12

A189616

PULLEY

Alternator

1шт.

13

360-820

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4; 8

1шт.

14

1982288C1

AIR HOSE

508 mm (20 in), Cut From 1338157CX

1шт.

15

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

2шт.

16

353411R92

FILTER ASSY

Alternator Precleaner

1шт.

17

1338707C1

SUPPORT

Alternator

1шт.

18

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 x 1-1/4

2шт.

19

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

20

492-11031

LOCK WASHER,5/16"

2шт.

21

425-105

NUT,5/16"-18, G5

2шт.

25

1338890C1

COVER

Alternator

1шт.

26

1964826C1

GROMMET

1шт.

30

892-11005

LOCK WASHER,M5

4шт.

31

825-1405

NUT,M5, Cl 8

4шт.

32

492-11044

LOCK WASHER,7/16"

1шт.

33

425-147

JAM NUT,Jam, 7/16"-14, G5

7/16

1шт.

34

892-11004

LOCK WASHER,M4

1шт.

35

825-1404

NUT,M4, Cl 8

1шт.

36

1979627C1

COVER

Dust Cover, With Spark Arrester

1шт.

37

214-1532

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm, W/ Liner

With Spark Arrester

1шт.
