(5-16) - REAR STEERING WHEEL AND HUB

Запчасти Case IH 2155 (5-16) - REAR STEERING WHEEL AND HUB (04) - STEERING

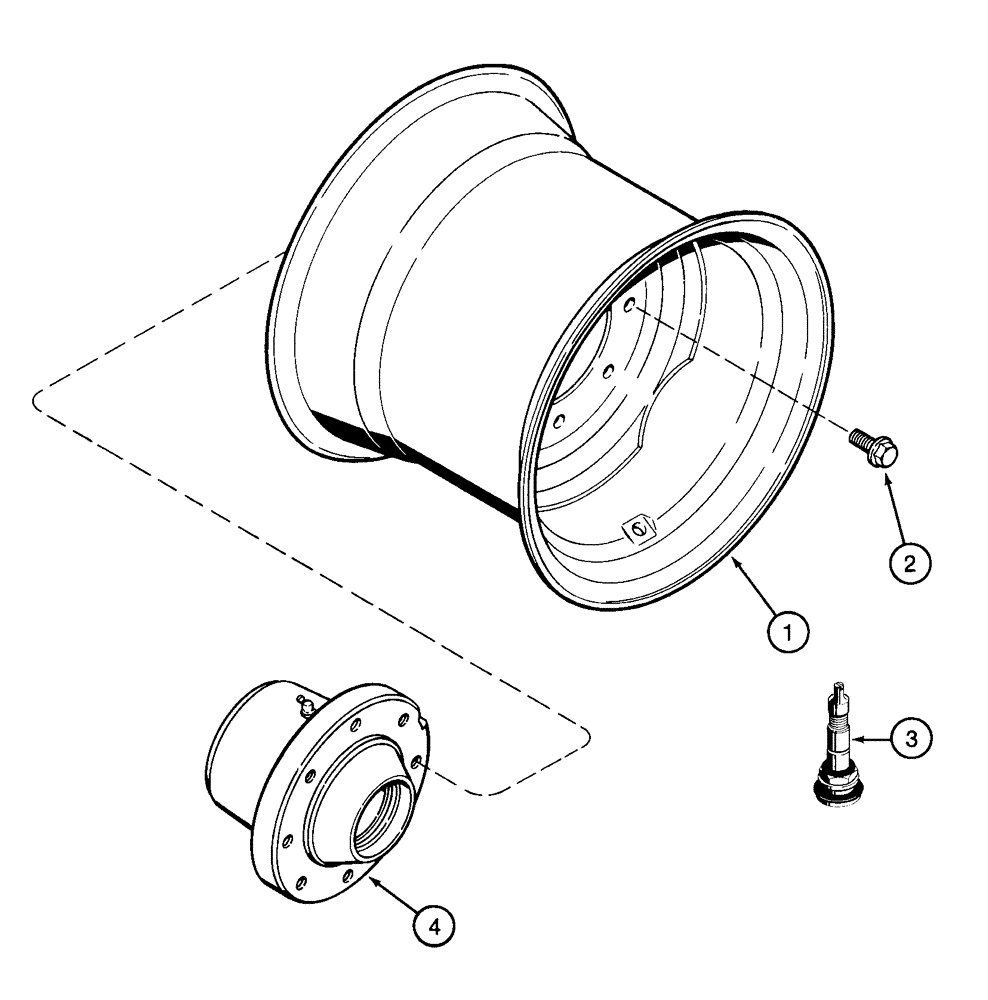

Схема запчастей Case IH 2155 - (5-16) - REAR STEERING WHEEL AND HUB (04) - STEERING
4
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

188759C2

RIM

WHEEL - 10 x 24 inch (for 11.25 x 24 inch tire)

2шт.

1

1541719C1

RIM

WHEEL - 12 x 24 inch, for 14.9 x 24 inch tire, rear

2шт.

2

414064C1

BOLT,Hex, 9/16" - 18 x 1 1/2"

- hex flange, special

16шт.

3

179482C1

VALVE STEM

VALVE - inflation, for 5/8 inch hole

2шт.

4

1259528C1

HUB

ASSEMBLY - wheel, rear wheel, parts list page 5-13

2шт.
