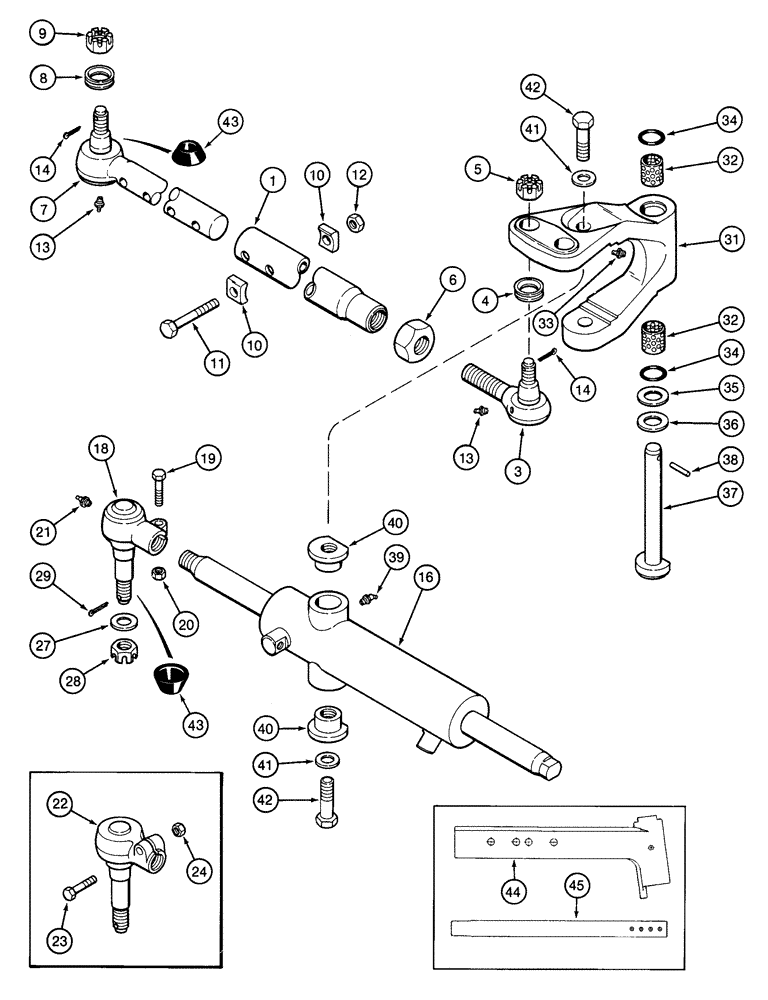

Запчасти Case IH 2155 (5-14) - STEERING AXLE TIE RODS AND STEERING LINKAGE (04) - STEERING

1270788C1

DRAG LINK

ROD ASSEMBLY - tie

2шт.

1

1280657C1

TUBE,30.7 - 40 mm ID, 41.2 mm OD, 431.5 mm Length

- tie rod

1шт.

3

1280658C1

BALL JOINT

SOCKET ASSEMBLY - tie rod, end

1шт.

4

1280659C1

SEAL,27.61mm ID x 38.9mm OD x 8.13mm Thk

- dust

1шт.

5

1280660C1

SLOTTED NUT

NUT - hex slotted, 20 mm - 1.50

1шт.

6

1280661C1

NUT

NUT - hex, jam, 1-1/8" NF

1шт.

7

1280662C1

BALL JOINT

SOCKET ASSEMBLY - tie rod

1шт.

8

1280659C1

SEAL,27.61mm ID x 38.9mm OD x 8.13mm Thk

- dust

1шт.

9

1280660C1

SLOTTED NUT

NUT - hex slotted, 20 mm - 1.50

1шт.

10

A43369

CLAMP

- clamp, tie rod

4шт.

11

328-648

BOLT,Hex, 3/8" - 24 x 3", Gr 8

2шт.

12

232-4616

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

2шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

14

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

4шт.

16

93194C8

STEERING CYLINDER

CYLINDER ASSEMBLY - 2-5/8 (67) ID x 9-3/4 inch (246 mm) stroke, power steering, parts list page 5-19

1шт.

16

93194C9R

REMAN-HYD CYLINDER

2155 CASE IH COTTON EXPRESS COTTON PICKER, CYLINDER ASSEMBLY - 2-5/8 (67) ID x 9-3/4 inch (246 mm) stroke, power steering (2/95-), Reman For New PN 93194C8

1шт.

16

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

1280566C2

BALL JOINT

JOINT ASSEMBLY - end ball

1шт.

18

NSS

NOT SOLD SEPARAT

JOINT ASSEMBLY - end ball, (TRW)

1шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

20

131-463

NUT,3/8"-16

NUT - heavy hex, self-locking, 3/8 inch NC

1шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

22

NSS

NOT SOLD SEPARAT

JOINT ASSEMBLY - end ball, (0&S)

1шт.

23

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

1шт.

24

232-4117

LOCK NUT,7/16"-14, GC

NUT, LOCK, 7/16"-14, GC

1шт.

27

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 7/64"

1шт.

28

25-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT - hex, slotted, 7/8 inch NF

1шт.

29

432-1028

COTTER PIN,5/32" x 1 3/4"

PIN, SPLIT (COTTER), 5/32" x 1 3/4"

1шт.

31

1259579C5

ARM

ASSEMBLY - center, steering

1шт.

32

1259581C1

BUSHING,25.43mm ID x 28.6mm OD x 31.8mm L

- center steering arm

2шт.

33

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

1шт.

34

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

35

71421C1

WASHER

- flat, 1-1/32 x 1-3/4 x 5/32 inch

1шт.

36

495-81052

WASHER,0.91" ID x 1.25" OD x 0.12" Thk

- flat, 29/32 x 1-1/4 x 7/64 inch

1шт.

37

1334694C1

PIN,50.8mm OD x 210.05mm L

PIN - pivot

1шт.

38

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

PIN, ROLL, 1/4" x 1 1/2", Coiled

1шт.

39

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch

1шт.

40

1259582C3

FITTING

- cap, trunnion

2шт.

41

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 13/16 x 1-1/2 x 7/32 inch, hardened

2шт.

42

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

BOLT - hex, full threads, 20 - 2.5 x 60 mm, class 10.9

2шт.

43

250586C1

SEAL

- dust, rubber

2шт.

44

110493A1

EXTENSION

- axle tie rod, skip-row applications

1шт.

45

110628A1

TUBE,0.2" OD, 23" Length

EXTENSION - axle steering tie rod, skip-row applications

1шт.
