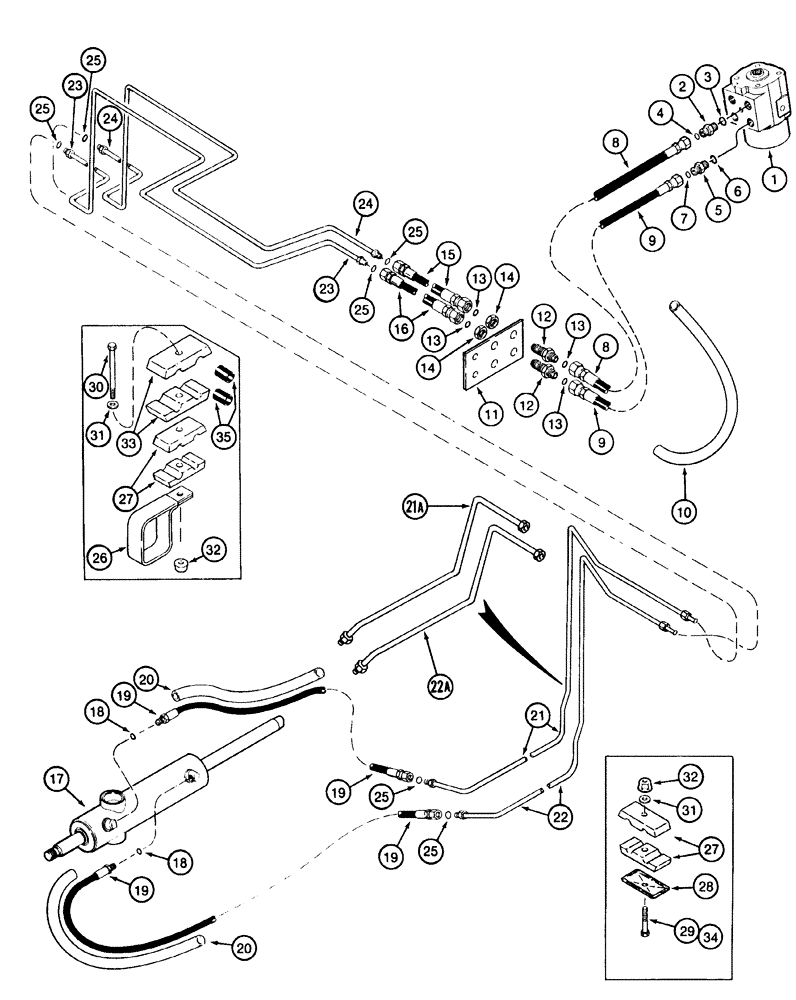

Запчасти Case IH 2155 (5-06) - POWER STEERING SYSTEM, PUMP TO CYLINDER SYSTEM (04) - STEERING

1

126110A1

PUMP

ASSEMBLY - steering hand, parts list page 5-9

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., 13/16"-16 ORFS x 3/4"-16 ORB

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

175170A1

ADAPTER

- straight, special, 11/16-16 face seal x 3/4-16 inch O-ring

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

187656A1

HOSE

- 72 inch (1830 mm) long, with one 11/16-16 and one 13/16-16 face seal connection

1шт.

9

187655A1

HOSE

- 72 inch (1830 mm) long, with two 11/16-16 face seal connections

1шт.

10

191134A1

HOSE,60.3mm ID x 956mm L

- 2-3/8 (60) ID x 38 inch (965 mm) long

1шт.

11

184359A1

LARGE PLATE

BRACKET - support, hydraulic line, bulkhead type

1шт.

12

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

ADAPTER - straight, 11/16-16 inch face seal x bulkhead face seal

2шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

14

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

NUT, LOCK, Blkhd, 11/16"-16

1шт.

15

187649A1

HOSE

- 42-1/8 inch (1070 mm) long

1шт.

16

187651A1

HOSE

- 44 inch (1120 mm) long

1шт.

17

93194C8

STEERING CYLINDER

CYLINDER ASSEMBLY - 2-5/8 (67) ID x 9-3/4 inch (246 mm) stroke, parts list page 5-19

1шт.

17

93194C9R

REMAN-HYD CYLINDER

2155 CASE IH COTTON EXPRESS COTTON PICKER, CYLINDER ASSEMBLY - 2-5/8 (67) ID x 9-3/4 inch (246 mm) stroke (2/95-), Reman For New PN 93194C8

1шт.

17

93194C9C

CORE-HYD CYLINDER

Return Number

1шт.

19

1984283C1

HOSE

- 27-1/2 inch (700 mm) long, right-hand and left-hand turn, rear

2шт.

20

1546059C1

HOSE

- 25 inch (635 mm) long, cut from 87283C1 bulk hose, see below

2шт.

21

1546401C1

TUBE

- left-hand turn, rear, if used, replaced by 196459A1 tube

1шт.

21a

196459A1

TUBE

- left-hand turn, rear, if used, replaces 1546401C1 tube

1шт.

22

1546402C1

TUBE

- right-hand turn, rear, if used, replaced by 196460A1 tube

1шт.

22a

196460A1

TUBE

- right-hand turn, rear, if used, replaces 1546402C1 tube

1шт.

23

1988923C1

TUBE

- left-hand turn, middle

1шт.

24

1988922C1

TUBE

- right-hand turn, middle

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

26

1301387C2

CLIP

CLAMP - square

2шт.

27

1546024C1

CLAMP

- double, 3/8 inch ID

8шт.

28

1347127C1

PLATE

- clamp

5шт.

29

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex, 5/16 NC x 1-3/8 inch

4шт.

30

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

2шт.

31

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

33

1546026C1

CLAMP

- double, 5/8 inch ID

5шт.

34

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

35

163489C1

STRIP

INSULATOR - rubber

2шт.

87283C2

HOSE,26.194 mm ID x 15240 mm Bulk

1шт.
