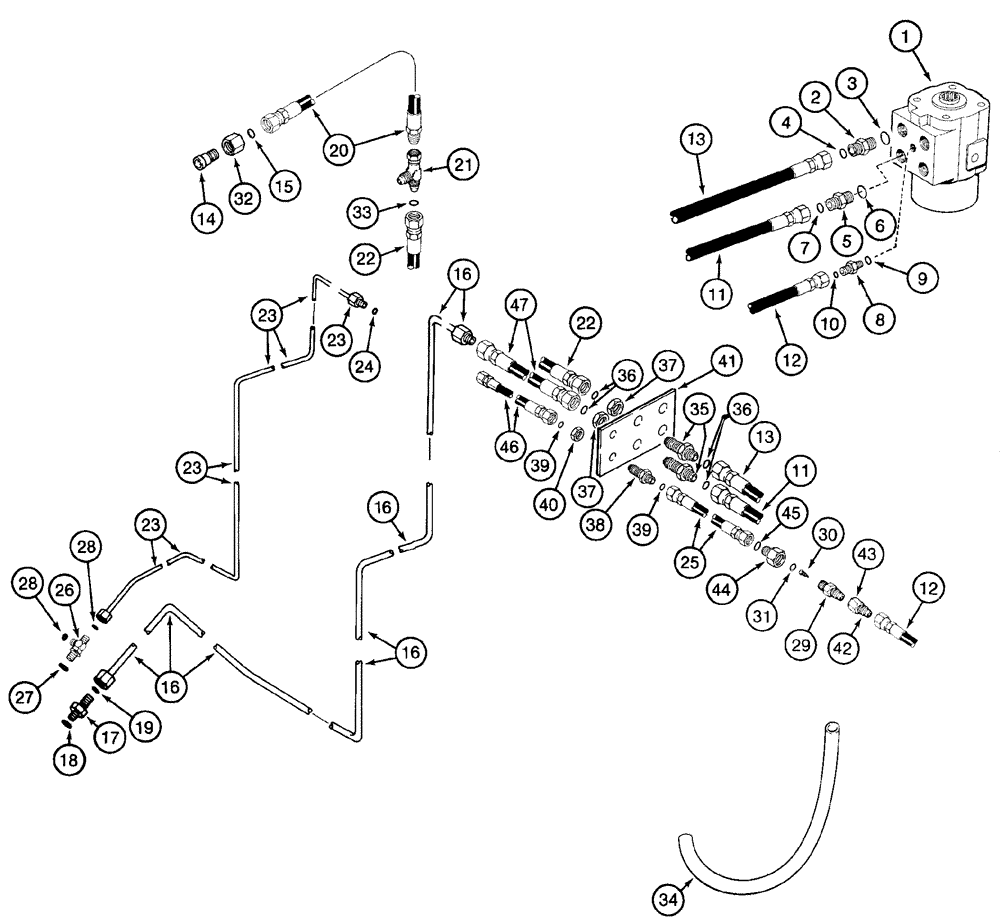

Запчасти Case IH 2155 (5-04) - POWER STEERING SYSTEM, SUPPLY AND RETURN (04) - STEERING

1

126110A1

PUMP

ASSEMBLY - steering hand, parts list page 5-9

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., 13/16"-16 ORFS x 3/4"-16 ORB

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

175170A1

ADAPTER

- straight, special, 11/16-16 face seal x 3/4-16 inch O-ring

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

8

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

ADAPTER - straight, 9/16-18 face seal x 7/16-20 inch O-ring boss

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

10

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

11

187655A1

HOSE

- 72 inch (1830 mm) long, steering supply, with two 11/16-16 face seal connections

1шт.

12

187644A1

HOSE

- 14-1/8 inch (360 mm) long, sensing

1шт.

13

187656A1

HOSE

- 72 inch (1830 mm) long, steering return, with one 11/16-16 and one 13/16-16 face seal connection

1шт.

14

201-142

REDUCER,11/16"-16 Male x 1 3/16"-16 Fem, ORFS

ADAPTER - reducing, 11/16-16 face seal x 1-3/16-12 inch female face

1шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

16

1546031C1

TUBE,980, 1305.9 mm Length

- steering, supply valve

1шт.

17

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight 11/16"-16 ORFS x 9/16"-18 ORB

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

1988952C1

HOSE

- 46-1/4 inch (1175 mm) long, return

1шт.

21

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare branch x flare x swivel

1шт.

22

187647A1

HOSE

- 35 inch (890 mm) long, return

1шт.

23

1546032C1

TUBE,617.8, 1254.9 mm Length

- steering, sensing valve

1шт.

24

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face end -011, 90 Duro, .301" ID x .070" Thk

1шт.

25

187646A1

HOSE

- 50 inch (1270 mm) long, sensing

1шт.

26

201-435

TEE,9/16"-18 x 7/16"-20 Run, ORFS

- 9/16-18 face seal br x face seal x 7/16-20 inch adj O-ring boss

1шт.

27

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

28

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

29

1980237C2

CHECK VALVE

VALVE ASSEMBLY - check

1шт.

30

NSS

NOT SOLD SEPARAT

SCREEN - flow

1шт.

31

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

32

203-904

TUBE NUT,1 3/16"-12 ORFS

NUT - hex, tube, 1-3/16-12 inch face seal

1шт.

33

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

34

191134A1

HOSE,60.3mm ID x 956mm L

- 2-3/8 (60) ID x 38 inch (965 mm) long

2шт.

35

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

ADAPTER - straight, 11/16-16 inch face seal x bulkhead face seal

2шт.

36

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

37

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

NUT, LOCK, Blkhd, 11/16"-16

1шт.

38

201-108

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORFS

ADAPTER - straight, 9/16-18 inch face seal x bulkhead face

1шт.

39

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

40

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

1шт.

41

184359A1

LARGE PLATE

BRACKET - support, bulkhead

1шт.

42

218-791

REDUCER,37 Degree, 1/2" x 1/4" Tube

ADAPTER - reducing, 1/2 tube OD x 7/16-20 inch flare

1шт.

43

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT - hex, 3/4 inch NF

1шт.

44

201-138

REDUCER,11/16"-18 Male x 13/16"-16 Fem, ORFS

ADAPTER - reducing, 11/16-16 face seal x 13/16-16 inch female face

1шт.

45

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

46

187653A1

HOSE

- 57 inch (1450 mm) long, sensing

1шт.

47

187648A1

HOSE

- 40 inch (1015 mm) long, supply

1шт.
